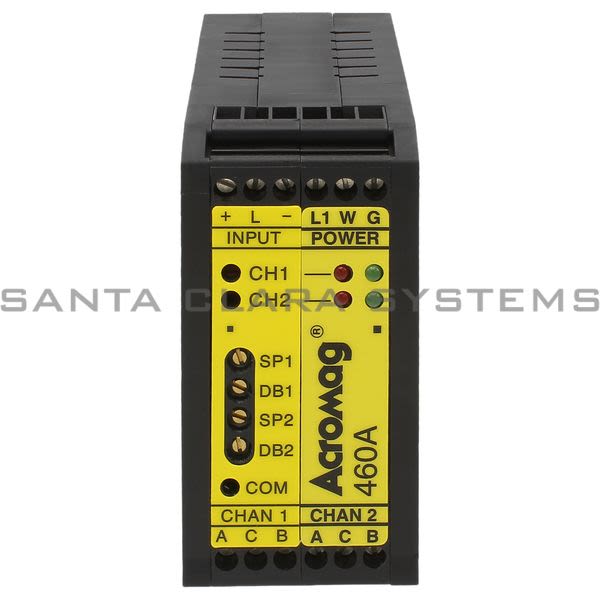

• Acromag 461A-V1-DMRN-1-DIN-NCR Limit Alarm Product Image

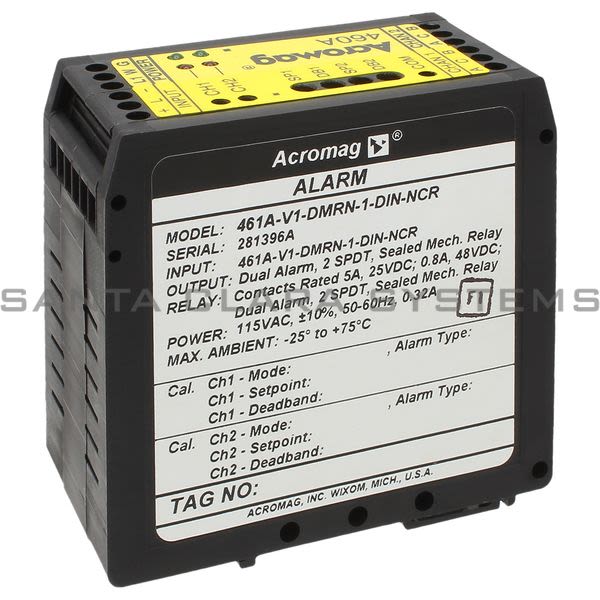

  • Acromag 461A-V1-DMRN-1-DIN-NCR Limit Alarm Product Image
  • Acromag 461A-V1-DMRN-1-DIN-NCR Limit Alarm Product Image
  • Acromag 461A-V1-DMRN-1-DIN-NCR Limit Alarm Product Image
  • Acromag 461A-V1-DMRN-1-DIN-NCR Barcode

461A-V1-DMRN-1-DIN-NCR

Product Summary:

  • Input: -V1: 0 to 1V DC.
  • AC Current Sensor (5020-350): Used with -V1 input option only
  • Setpoint Adjust: 0 to 115% of input span via 15-turn potentiometer
  • Repeatability: Repeatable to better than 0.1% of input span
  • Ambient Temperature Range: -13F to 167F (-25C to 75C)
Get a Quote

Current response time:

17 Minutes 4 Seconds
  • Description: Limit Alarm
  • Input: -V1: 0 to 1V DC.
  • AC Current Sensor (5020-350): Used with -V1 input option only
  • Setpoint Adjust: 0 to 115% of input span via 15-turn potentiometer
  • Deadband Adjust (hysteresis): 1 to 100% of input span for each channel via 15-turn potentiometer(s). Adjustments are independent on dual alarm models
  • Automatic Reset (non-latching alarms): The alarm resets to its non-alarm state as soon as input signal is outside of the selected deadband
  • Repeatability: Repeatable to better than 0.1% of input span
  • Ambient Temperature Range: -13F to 167F (-25C to 75C)
  • Ambient Temperature Effect: Less than 0.01% of output span per F (0.018% per C) over the ambient range
  • Isolation: Three way; input, contacts, and power are isolated from each other for common mode voltages up to 250V AC, or 354V DC, continuous (withstands 1500V AC for sixty seconds without breakdown)
  • Surge Withstand Capability (SWC): Meets ANSI/IEEE C37.90-1978
  • Circuit boards: Military grade FR-4 epoxy glass circuit board, 0.063 inches thick
  • Terminals: Compression type, wire 14 AWG max
  • Mounting position: Position insensitive
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 461A-V1-DMRN-1-DIN-NCR . Santa Clara Systems carries 7 items from Acromag.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
