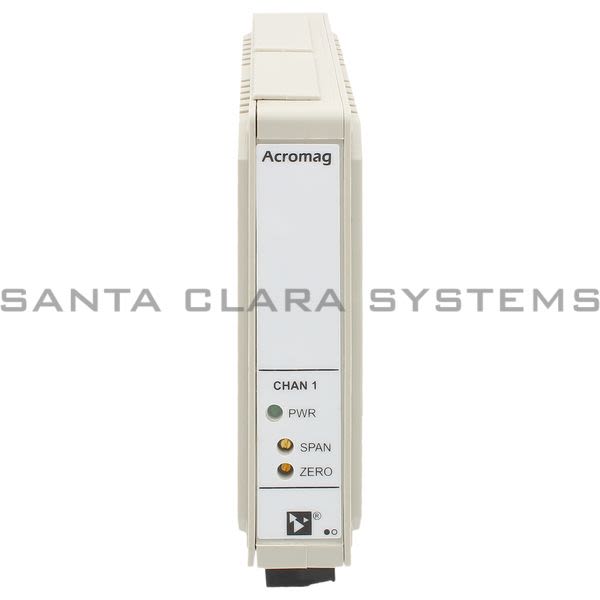

• Acromag 651T-0600 Transmitter, Single Channel DC Current Input, Loop-Powered Product Image
  • Acromag 651T-0600 Transmitter, Single Channel DC Current Input, Loop-Powered Product Image
  • Acromag 651T-0600 Transmitter, Single Channel DC Current Input, Loop-Powered Product Image
  • Acromag 651T-0600 Transmitter, Single Channel DC Current Input, Loop-Powered Product Image
  • Acromag 651T-0600 Barcode

651T-0600

Product Summary:

  • Input range: 4 to 20mA input (each channel)
  • Output range: 4-20mA DC output (each channel)
  • Output compliance: Psupply = 12V + (0.02 x Rload)
  • Output limiting: Outputs are limited to 36mA
  • Output ripple: Less than 0.1% of the maximum output span
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Transmitter, Single Channel DC Current Input, Loop-Powered
  • Reference Test Conditions: Input/Output current: 4 to 20mA; output load 500 ohms; 77F (25C)
  • Input range: 4 to 20mA input (each channel)
  • Output range: 4-20mA DC output (each channel)
  • Output compliance: Psupply = 12V + (0.02 x Rload)
  • Output limiting: Outputs are limited to 36mA
  • Output ripple: Less than 0.1% of the maximum output span
  • Ambient Temperature: Operating: -25 to 70C (-13 to 158F)
  • Power Requirement: 12 to 50V DC for each output channel
  • Radiated Field Immunity (RFI): Complies with EN61000-4-3 Level 3 (10V/m, 30 to 1000MHz) and European Norm EN50082-1
  • Enclosure: Case: Self-extinguishing NYLON type 6.6 polyamide thermoplastic UL94 V-2 NEMA Type 1 enclosure
  • Connectors (Removable Terminal Blocks): Wire Range: AWG #14-22 (AWG #12 stranded only)
  • Dimensions: 1.05W x 4.68H x 4.35D inches
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 651T-0600 . Santa Clara Systems carries 6 items from Acromag.
  • These Units Receive 4-20Ma Process Current Inputs And Provide Isolated 4-20Ma Output Signals. Each Channel Operates Independently And Is Isolated From The Others To Prevent Interaction Between Channels.
