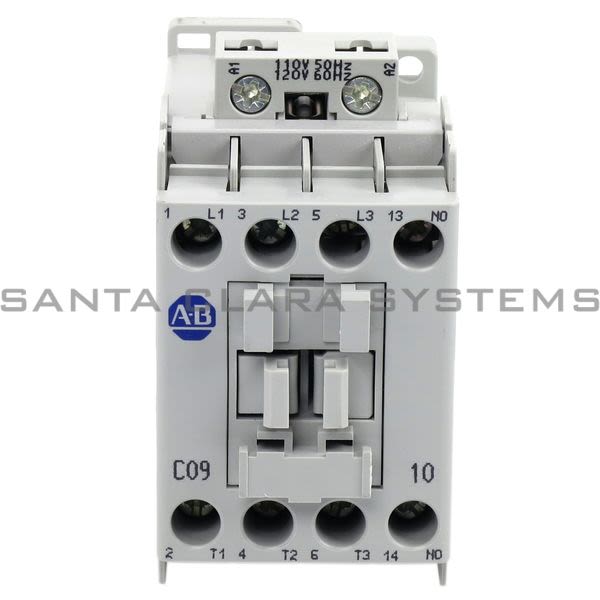

• Allen Bradley 100-C09D10 Contactor Product Image

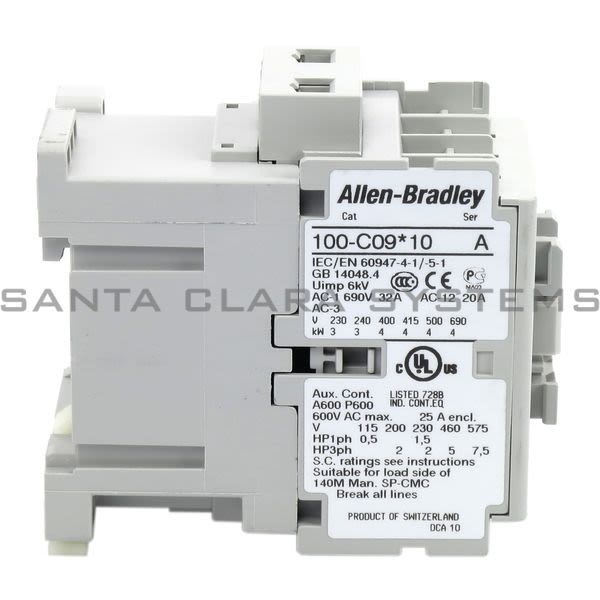

  • Allen Bradley 100-C09D10 Contactor Product Image
  • Allen Bradley 100-C09D10 Contactor Product Image
  • Allen Bradley 100-C09D10 Barcode
  • Allen Bradley 100-C09D10 Catalog

    Catalog

100-C09D10

Product Summary:

  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 9A
  • Coil Termination: Line Side
  • Package Quantity: 1
  • Electrical Standards: UL
Get a Quote
           or
  • Description: Contactor
  • Minimum Required Life: 0 Mil. Oper., 0 Mil. Oper.
  • Actual Life: Actual Life Cannot be Calculated (more information)... To calculate an expected life for MCS Bulletin 100-C you must specify the following: - Minimum Required FLA, Actual Life Cannot be Calculated (more information)... To calculate an expected life for MCS Bulletin 100-C you must specify the following: - Minimum Required FLA, Actual Life Cannot be Calculated (more information)... To calculate an expected life for MCS Bulletin 100-C you must specify the following: - Minimum Required FLA, Actual Life Cannot be Calculated (more information)... To calculate an expected life for MCS Bulletin 100-C you must specify the following: - Minimum Required FLA
  • 100-C or 104-C Contactor: 1_
  • Front Mounted Auxiliary Contact: None
  • Left Side Auxiliary Contact: None
  • Right Side Auxiliary Contact: None
  • Interlock: None
  • Contact Configuration: - No Value
  • Terminal Type: Screw Terminals
  • Rated Operating Current, AC-3: 9A
  • Coil Termination: Line Side
  • Contact Configuration: 1 N.O. 0 N.C. Auxiliary Contact Configuration
  • Package Quantity: 1
  • Electrical Standards: UL
  • Utilization Category: AC-3 Squirrel-cage motor starting and stopping
  • Load FLA (Nameplate Value): 0 A, 0 A
  • NEC FLA: 0 A, 0 A
  • Minimum Required FLA: 0 A, 0 A
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 100-C09D10 . Santa Clara Systems carries 45,700 items from Allen Bradley.
  • 1.5 Hp At 230 V
  • 3 Ph (60 Hz): 2 Hp At 200/230 V
  • 5 Hp At 460 V
  • 7.5 Hp At 575 V
  • Enclosure: Ip2X
  • Temperature Rating: -25 To 60 Deg C
  • Environmental Conditions: Storage Temperature: -55 To 80 Deg C
  • Resistance To Shock: Iec 60068-2-27
  • Resistance To Vibration: Iec 60068-2-6
  • Maximum Altitude Of Installation Site: 2000 Nn Per Iec 60947-1
  • Climatic Withstand: Iec 60068-2-1/-2/-30
  • Rated Impulse Withstand Voltage: 6 Kv
  • Iec Contactor
  • Type: 100-C Series
  • Ac And Dc Operated
  • Coil Voltage: 110/120 Vac At 50/60 Hz
  • Contact Configuration: 1No
  • Maximum Load Current: Ac-3: 9 A
  • Ac-1: 32 A
  • Number Of Poles: 3
  • Voltage Rating: 690 Vac At 50/60 Hz
  • 440 Vdc
  • Wattage: 3-Phase (50 Hz): 4 Kw At 690 V
  • Connection: Screw Terminal
  • Mounting: 35 Mm Din-Rail
  • Hp Rating: 1 Ph (60 Hz): 0.5 Hp At 115 V
