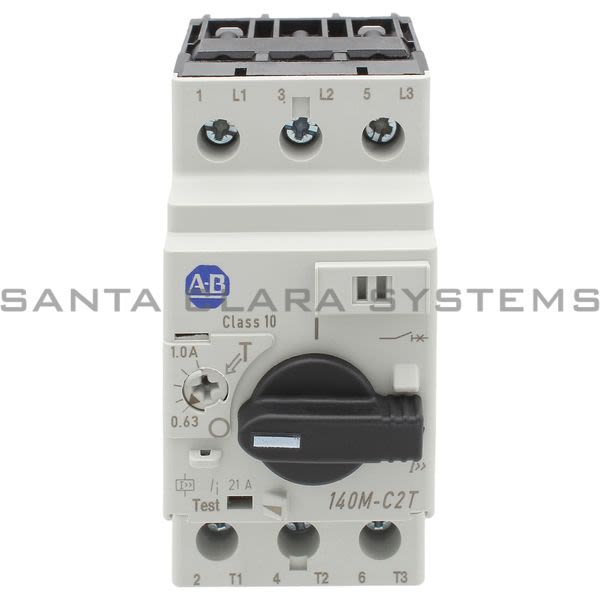

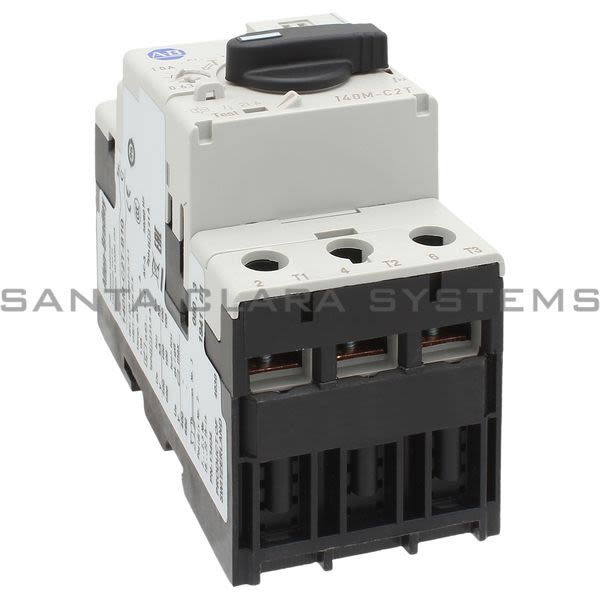

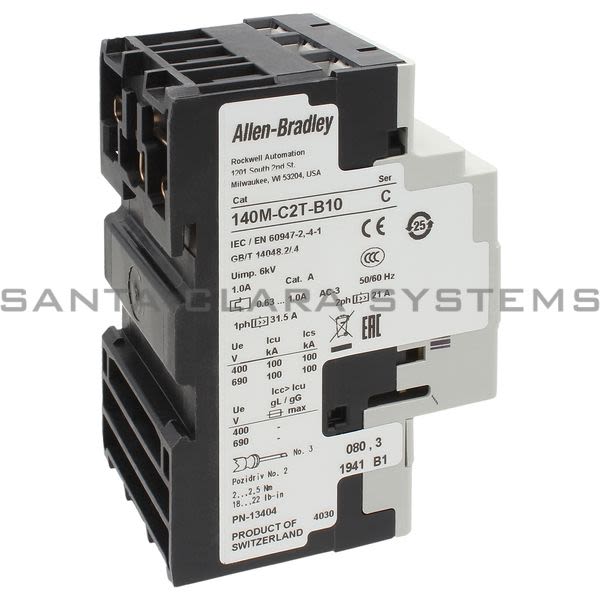

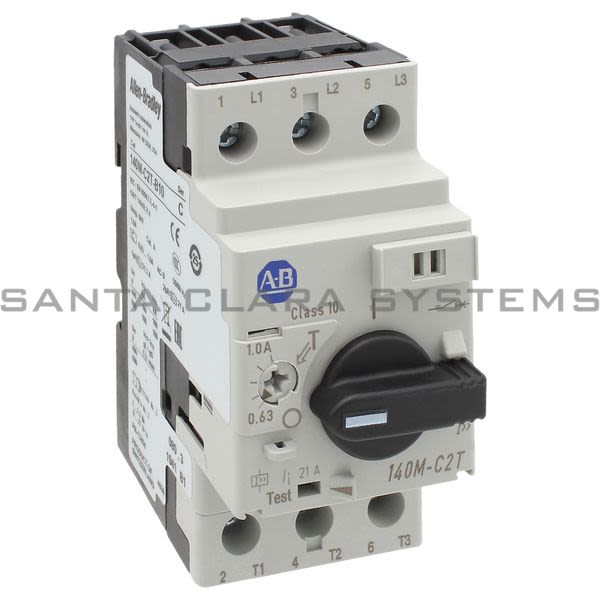

140M-C2T-B10

Allen Bradley - Contactor

Current response time:

8 Minutes 32 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Contactor
Frame Size: Frame Size C
Circuit Breaker Type: Motor Protection Circuit Breaker
Supply Voltage: 480Y/277 VAC 50/60HZ
Maximum Available Fault Current: 5kA
Breaking Capacity: Standard Breaking Capacity
Adj. Thermal Current Range (A): 0.63 - 1A

Coordination Type: Type 1In case of a short-circuit, damage requiring the exchangeof components or the entire starter is permissible.
Application: High Magnetic Trip (Fixed at 16...20 x le), - Adjustable Overload Protection: Trip Class 10, - Only required if nuisance trip occurs with Standard Magnetic Trip devices above
UL Listed Application Ratings: UL 508 - Manual Motor Controller, Max. Short Circuit Current: 480V 65kA | 600V 47kA, Type 2 Coordination, Max. Short Circuit Current: 480V 65kA | 600V 47kA, UL 508 Manual Self-Protected (Type E) Combination Motor Controller, **Requires 140M-C-TE1 spacing adapter for Type E rating**
Side Mount Shunt Trip and Undervoltage Release: None
Front Mount Auxiliary and Trip Contacts: None
Side Mount Auxiliary and Trip Contacts (TESTDESC): None

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 140M-C2T-B10 . Santa Clara Systems carries 54,961 items from Allen Bradley.

140M-C2T-B10 Selection Guide

140M-C2T-B10 Catalog
