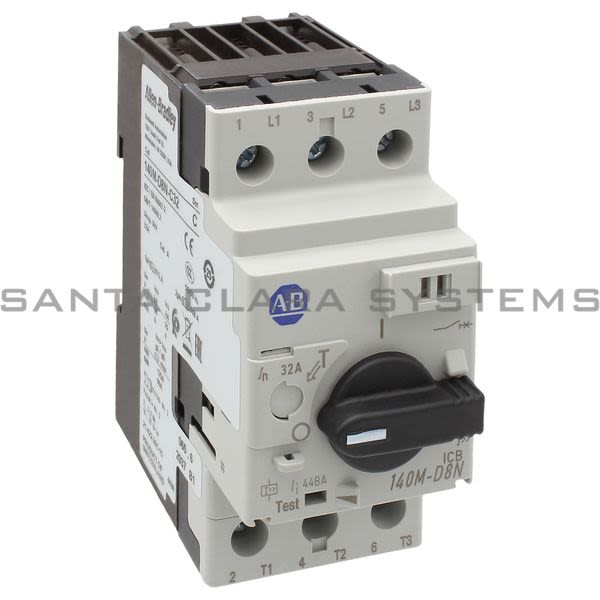

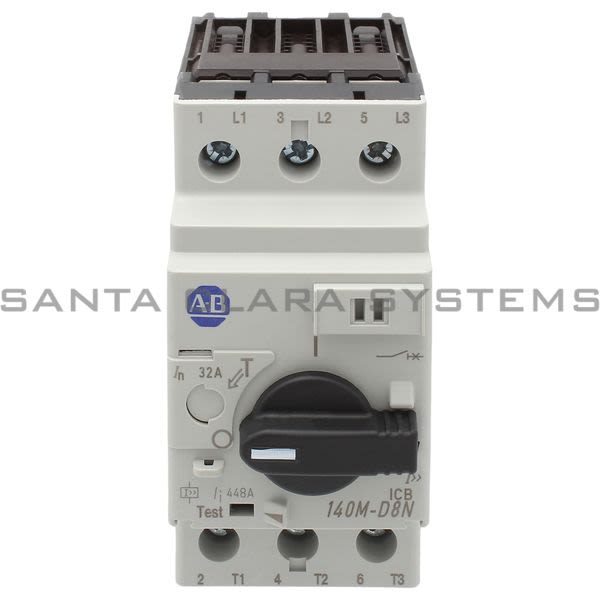

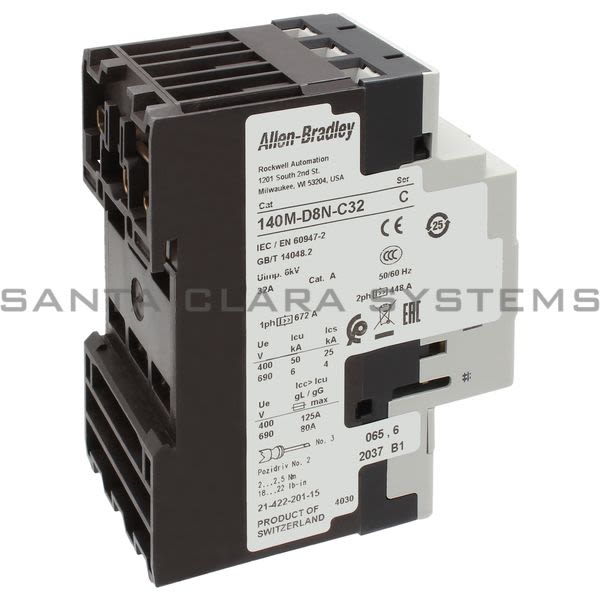

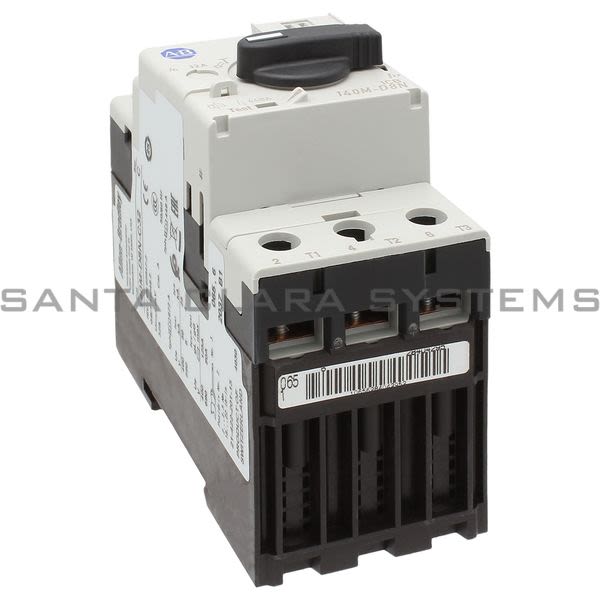

140M-D8N-C32

Allen Bradley - Motor Circuit Protector Circuit-Breaker

Product Summary:

Frame Size: Frame Size D
Circuit Breaker Type: Motor Circuit Protector
Supply Voltage: 480Y/277 VAC 50/60HZ
Maximum Available Fault Current: 5kA
Breaking Capacity: High Breaking Capacity

Current response time:

15 Minutes 6 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Motor Circuit Protector Circuit-Breaker
Frame Size: Frame Size D
Circuit Breaker Type: Motor Circuit Protector
Supply Voltage: 480Y/277 VAC 50/60HZ
Maximum Available Fault Current: 5kA
Breaking Capacity: High Breaking Capacity
Coordination Type: Type 1In case of a short-circuit, damage requiring the exchangeof components or the entire starter is permissible.

Rated Operational Current (A): 32A- D-Frame- Magnetic Trip Current = 448A
Application: Standard Magnetic Trip (Fixed at 13 x le), - Short Circuit Protection Only, - Separate Overload Protection is Required
Magnetic Trip Current (A): 448A Fixed
UL Listed Application Ratings: UL 508 - Manual Motor Controller, Max. Short Circuit Current: 480V 30kA | 600V 30kA, Type 2 Coordination, Max. Short Circuit Current: 480V 65kA | 600V 10kA
Side Mount Shunt Trip and Undervoltage Release: None
Front Mount Auxiliary and Trip Contacts: None
Side Mount Auxiliary and Trip Contacts (TESTDESC): None
