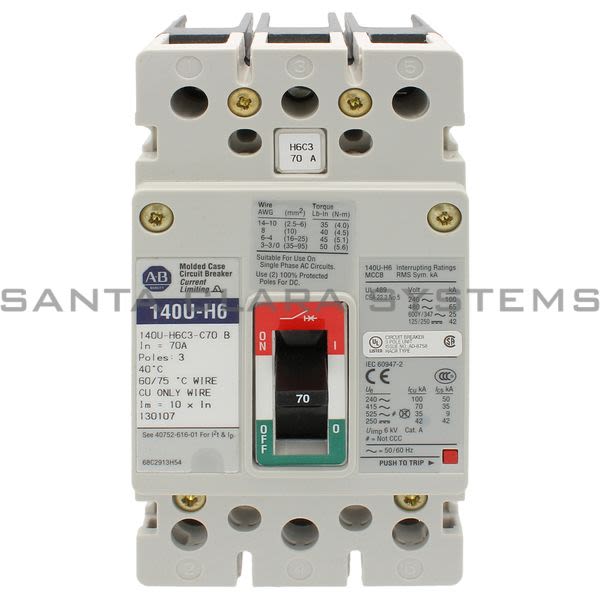

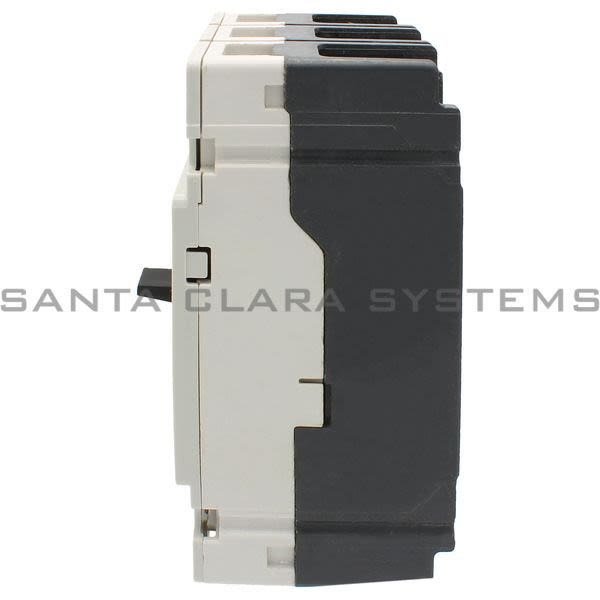

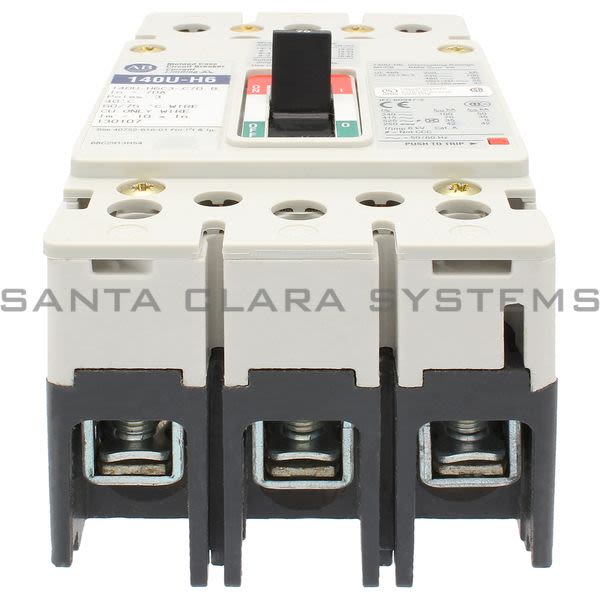

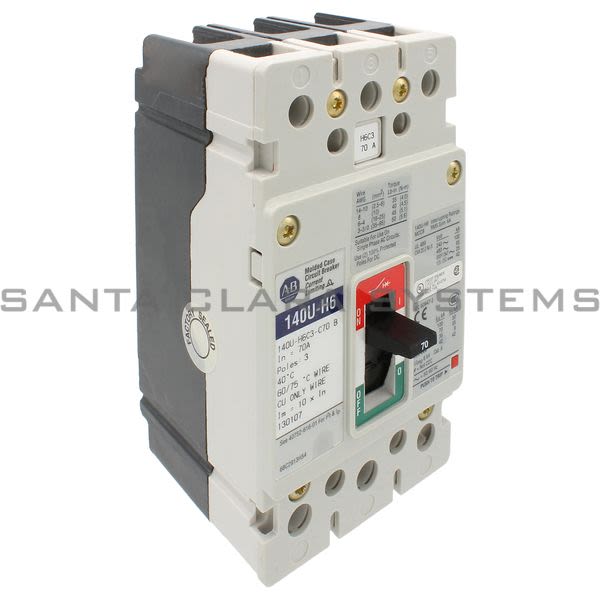

140U-H6C3-C70

Allen Bradley - Circuit Breaker

Current response time:

By 5AM PT on Monday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Circuit Breaker
Voltage: None
Frame Size: H-Frame (up to 125A)
Supply Voltage: 480V 60Hz
Pole Configuration: 3 Poles
Important Information!: Terminal Lugs are Factory Installed. See below to order replacement kits.
Rated Current (A): 70
Interrupt Rating [kA]: 65 kA

Maximum Available Fault Current (at the Breaker): 0kA
Current Limitation Required?: No
Device Selection - Important Information: The MCCB you have selected is a Current Limiting Circuit Breaker
Assembly: Factory Assembled- The selected circuit breaker will appear as one item with one catalog number.
Shunt Trip (SNT) and Undervoltage Release (UVT), Left Side Mounting: None
Auxiliaries (AX), Alarm (AL), Auxiliary/Alarm Combination (AX/AL), Right Side Mounting: None
Busbar Mounting (Only for Use with 141A Mounting System): NoneBusbar Mounting is available for 3-Pole H, J, K frames; 2-Pole and 3-Pole D Frames.

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 140U-H6C3-C70 . Santa Clara Systems carries 55,644 items from Allen Bradley.

140U-H6C3-C70 Catalog

140U-H6C3-C70 Installation Instructions
