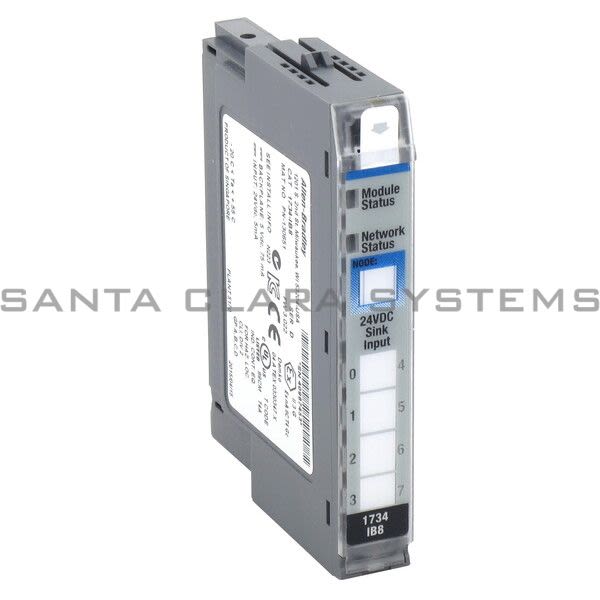

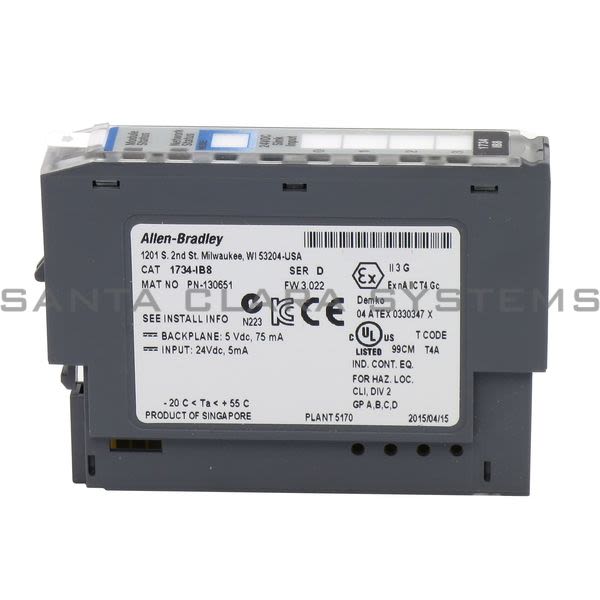

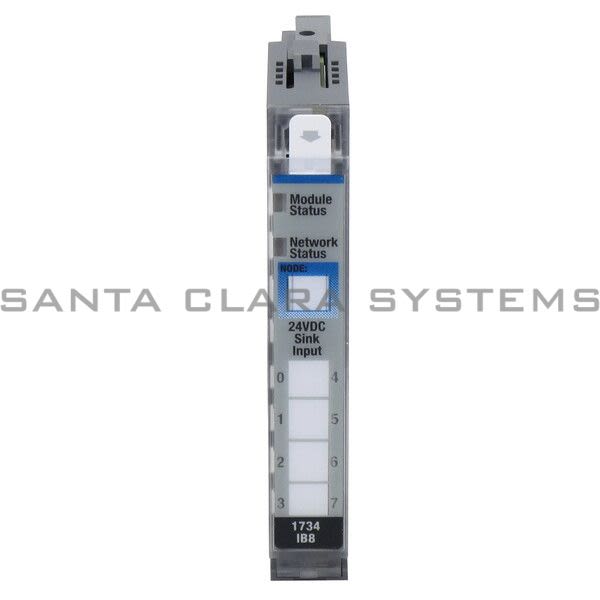

- Description: 8-Channel 24V DC Sink Input Module
- Mounting type: DIN-rail
- Product Type: Digital DC Sinking Input Modules
- Enclosure Type Rating: None (Open-Style)
- Inputs Per Module: 8 (1 Group of 8), Sinking
- Weight, Approx: 32.3 g (1.14 oz)
- Dimensions, HxWxD, Approx: 56 x 12 x 75.5 mm (2.2 x 0.47 x 2.97 in.)
- POINTBus Current, Max: 75 mA @ 5V DC
- Product Series: 1734* POINT I/O Modules
- Voltage, on-state input, nom: 24V DC
- Voltage, on-state input, min: 10V DC
- Voltage, on-state input, max: 28.8V DC
- Input delay time, on to off: 0.5 ms hardware + (065 ms selectable)
- Current, on-state input, min: 2 mA
- Current, on-state input, max: 5 mA
- Current, off-state input, max: 1.5 mA
- POINTBus current (mA): 75 mA max @ 5V DC
- Power dissipation, max: 1.6 W @ 28.8V DC
- Thermal dissipation, max: 5.5 BTU/hr @ 28.8V DC
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-IB8 . Santa Clara Systems carries 53,639 items from Allen Bradley.
