1734-IE4S

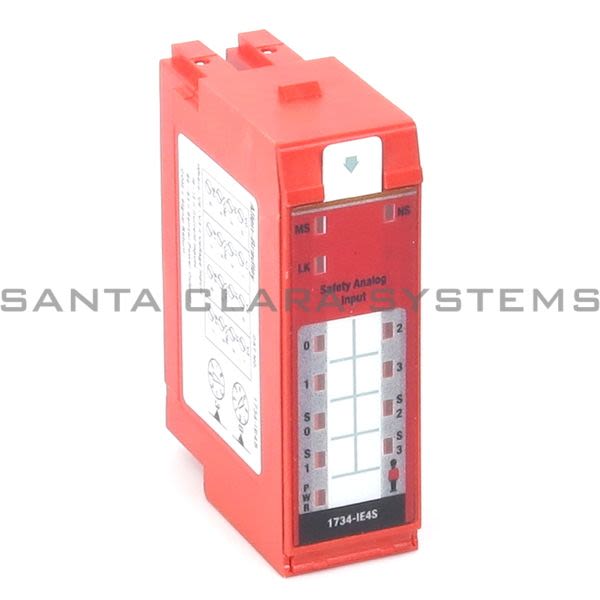

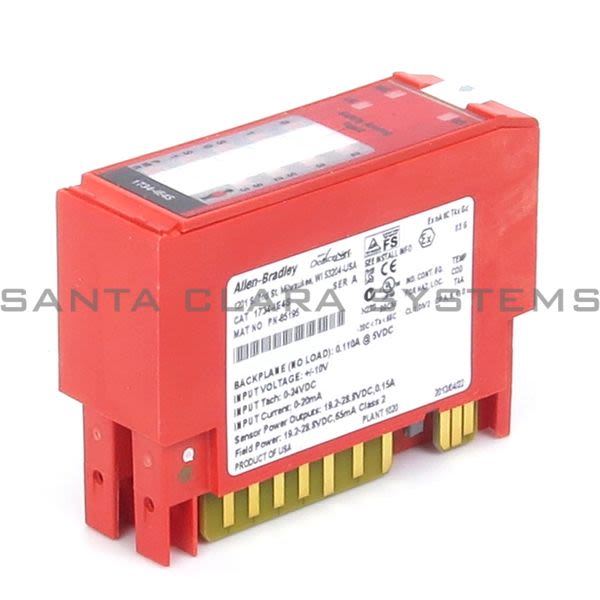

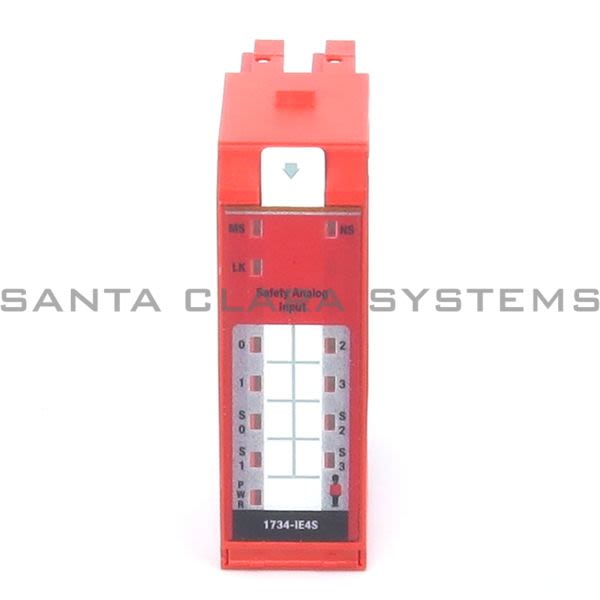

Allen Bradley - Safety Module | Point Guard I/O

Current response time:

6 Minutes 31 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Safety Module | Point Guard I/O
Input type: Software-configurable for voltage, current, or tachometer
Product Type: Safety Analog Input Module
Output Type: Sensor power supply, 24V DC
Enclosure type rating: None (open-style)
Product Series: 1734* POINT I/O Modules
Inputs per module: 4 single-ended
Input current mode ranges: 0...20 mA, 4...20 mA
Input tachometer mode ranges: 0...24V with configurable ON and OFF thresholds in 1V increments
Voltage code range: Bipolar modes: -32768/+32767 | Unipolar modes: 0/+32767
Current code range (4...20 mA mode): -8192...32767
Tachometer code range: 0...1000
Tachometer frequency range: 1...1000 Hz
Tachometer overrange threshold: 1 kHz
ADC resolution: 12 bits

Data value format: 16-bit, twos complement
Wire type: Shielded on signal ports
POINTBus Field power input: 19.2...28.8V DC, 65 mA, Class 2
Aggregate current of sensor outputs per module: 600 mA
Over current detection: Yes
Open load detection: Yes
POINTBus current, max: 110 mA @ 5V
Power dissipation, max: 2.2 W
Thermal dissipation: 7.5 BTU/hr
Isolation voltage: 50V continuous- basic Insulation Type, I/O and field power to system Type tested @ 500V AC for 60 seconds. No isolation between individual I/O or I/O to field power.
Power bus, operating supply voltage, nom: 24V DC
Power bus, operating voltage range: 19.2...28.8V DC
Weight, approx.: 68 g (2.4 oz)
Dimensions (HxWxD), approx. (without terminal block): 77 x 24 x 55 mm (3.03 x 0.94 x 2.17 in.)

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1734-IE4S . Santa Clara Systems carries 53,639 items from Allen Bradley.
