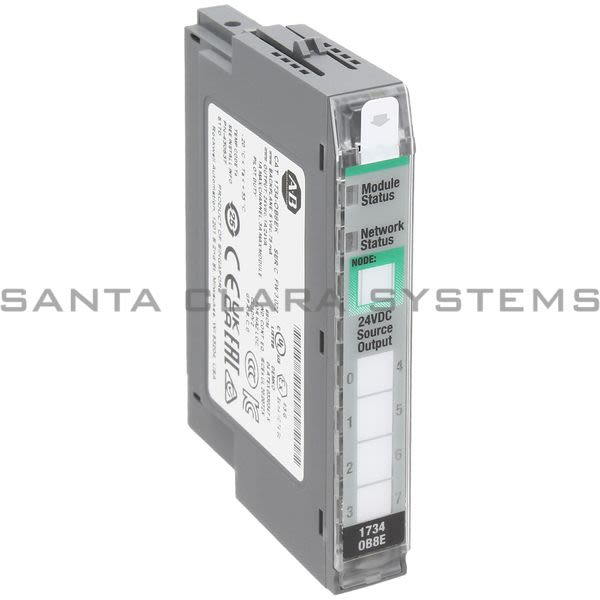

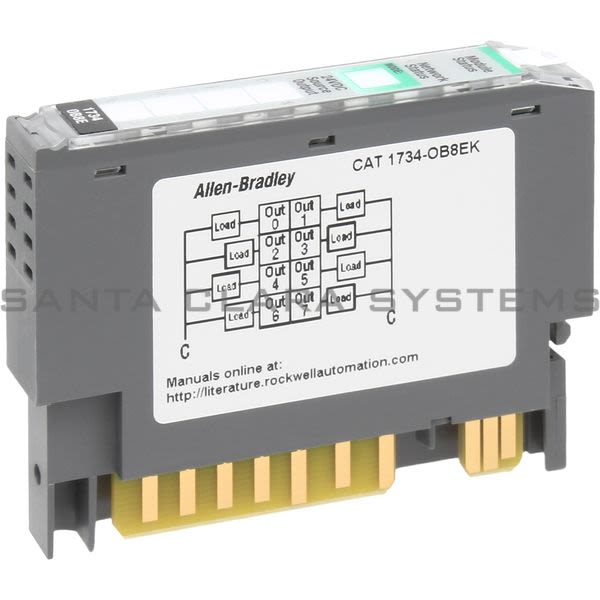

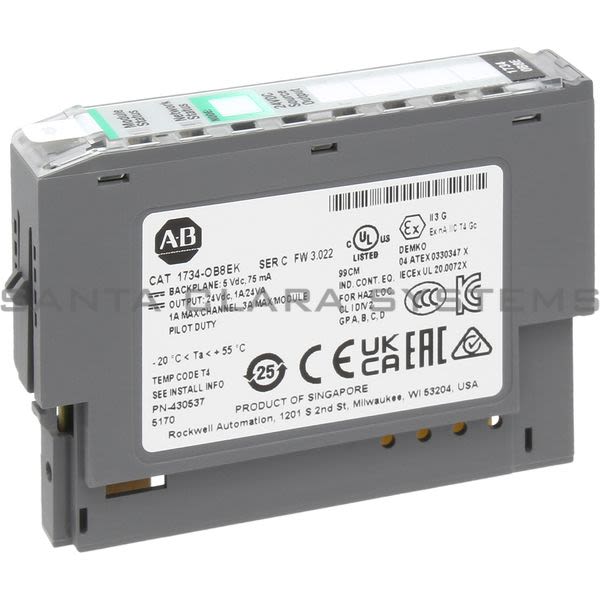

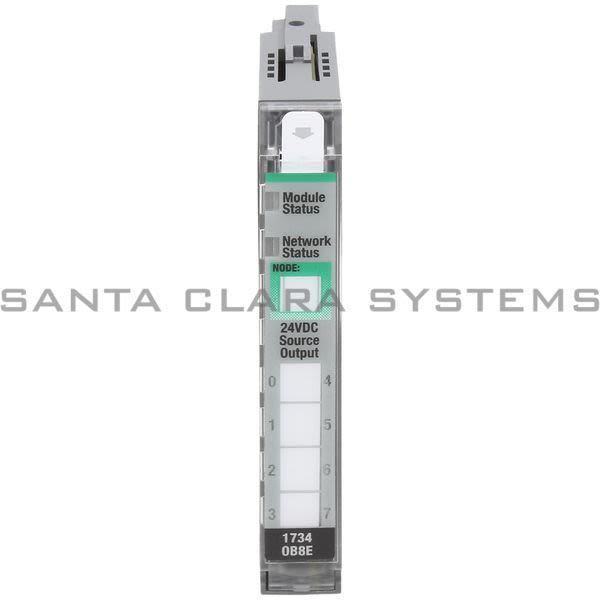

1734-OB8EK

Allen Bradley - Output Module

Current response time:

By 5AM PT on Friday

Emergency?

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Output Module
Product Type: Protected Output Module
Dimensions, HxWxD: 56.0 x 12.0 x 75.5 mm (2.21 x 0.47 x 2.97 in.)
External DC power supply current: 32 mA
External DC power supply voltage, nom: 24V DC
Indicators (field side indication, logic-driven): 8 yellow – output status | 8 red – output fault | 2 green/red – module/network status
Isolation voltage: 50V (continuous), reinforced insulation type Tested @ 2500V DC for 60 s, field-side to system
Keyswitch position: 1
Number of outputs, non-isolated, sourcing: 8 (1 group of 8)
Off-state leakage, max: 0.5 mA
On-state and Off-state voltage, max: 28.8V DC
On-state current, min, per channel: 1.0 mA
On-state voltage drop, max: 0.2V DC

On-state voltage, min: 10V DC
On-state voltage, nom: 24V DC
Output current rating, max, per module: 3.0 A
Output current rating, per output: 1.0 A
Power dissipation @ 28.8V DC, max: 2.0 W
POINTBus™ current, max: 75 mA @ 5V DC
Product Series: POINT I/O Protected
Surge current: 2 A for 10 ms, repeatable every 3 s
Terminal base screw torque: 0.8 N•m (7 lb•in)
Thermal dissipation @ 28.8V DC, max: 6.8 BTU/hr
Weight, approx.: 35.4 g (1.25 oz)
K=suffix: Conformal Coating, protects from harsh and/or corrosive environments
