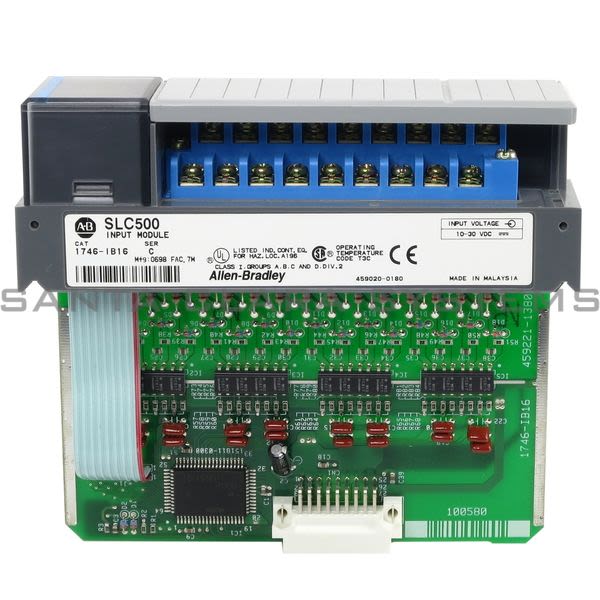

• Allen Bradley 1746-IB16 Input Module | SLC 500 Product Image

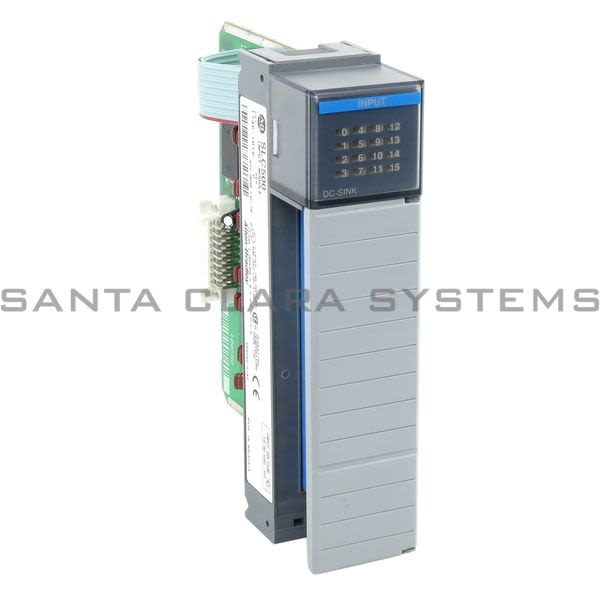

  • Allen Bradley 1746-IB16 Input Module | SLC 500 Product Image

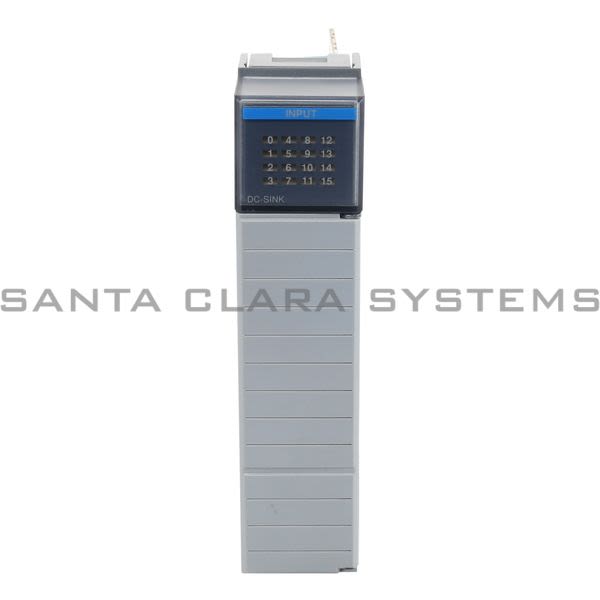

  • Allen Bradley 1746-IB16 Input Module | SLC 500 Product Image
  • Allen Bradley 1746-IB16 Barcode
  • Allen Bradley 1746-IB16 Wiring Diagram

    Wiring Diagram

  • Allen Bradley 1746-IB16 User Manual

    User Manual

  • Allen Bradley 1746-IB16 Technical Data

    Technical Data

  • Allen Bradley 1746-IB16 Selection Guide

    Selection Guide

1746-IB16

Product Summary:

  • Product Family: SLC 500
  • Voltage Category: 24V DC Signal Input (Sinking)
  • Number of Inputs: 16
  • Voltage, Operating: 10...30V DC (Sinking)
  • Backplane Current Consumption: 5V DC 0.050 A , 24V DC 0.0 A
Get a Quote

Current response time:

12 Minutes 43 Seconds
  • Description: Input Module | SLC 500
  • Input Current, Nom: 8 mA @ 24V DC
  • Off-State Voltage, Max: 5.0V DC
  • Signal Delay, Max: On = 8 ms / Off = 8 ms
  • Points per Common: 16
  • Product Family: SLC 500
  • Voltage Category: 24V DC Signal Input (Sinking)
  • Number of Inputs: 16
  • Voltage, Operating: 10...30V DC (Sinking)
  • Backplane Current Consumption: 5V DC 0.050 A , 24V DC 0.0 A
  • Off-State Current, Max: 1 mA
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1746-IB16 . Santa Clara Systems carries 46,816 items from Allen Bradley.
