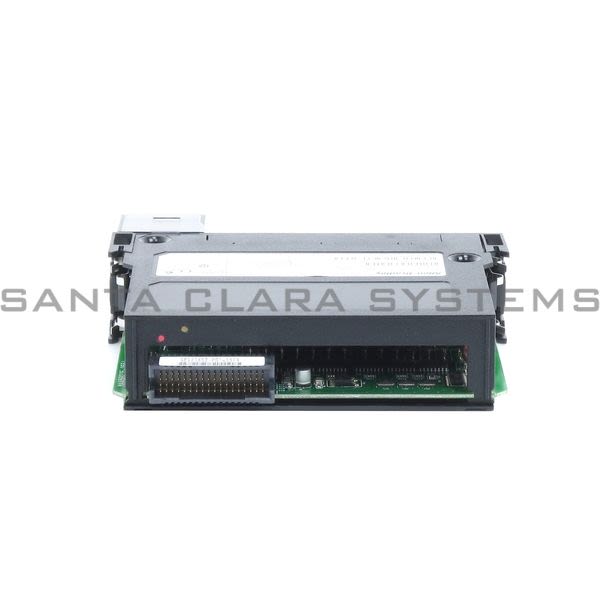

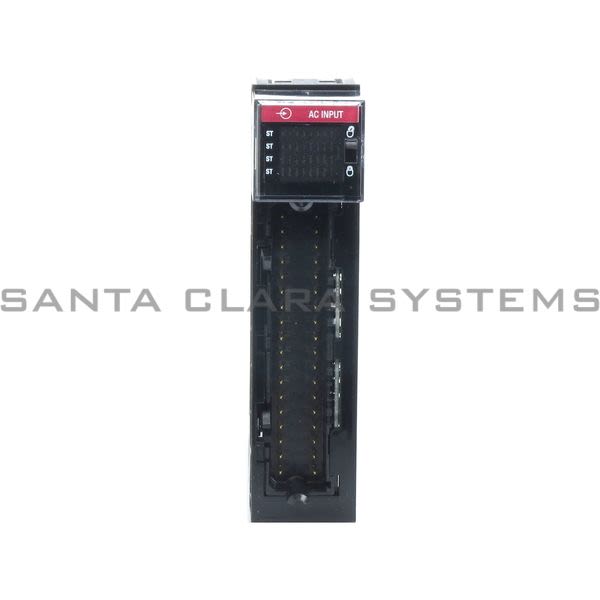

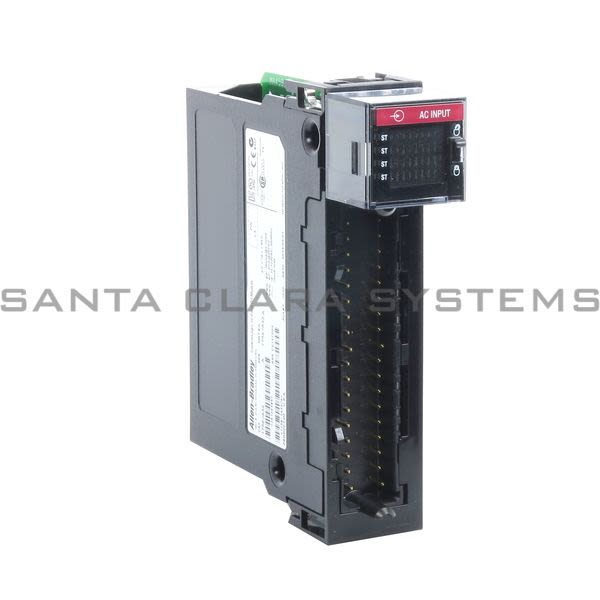

- Description: Input Module | ControlLogix
- Product Type: AC (74...132V) input module
- Product Series: 1756 ControlLogix I/O Modules
- Voltage category: 120V AC 50/60 Hz
- Input voltage, nom: 120V AC 50/60 Hz
- Inputs: 32 (16 points/group)
- Operating voltage range: 79...132V AC, 47...63 Hz
- Current draw @ 5.1V: 165 mA
- Current draw @ 24V: 2 mA
- Total backplane power: 0.9 W
- Thermal dissipation: 20.8 BTU/hr
- Off-state voltage, max: 20V
- Off-state current, max: 2.5 mA
- On-state current, min: 5 mA @ 74V AC
- On-state current, max: 15 mA @ 132V AC
- Inrush current, max: 390 mA
- Isolation voltage: 250V (continuous), basic insulation type, inputs-to-backplane 125V (continuous), basic insulation type, input group-to-group No isolation between individual group inputs
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IA32 . Santa Clara Systems carries 53,639 items from Allen Bradley.
