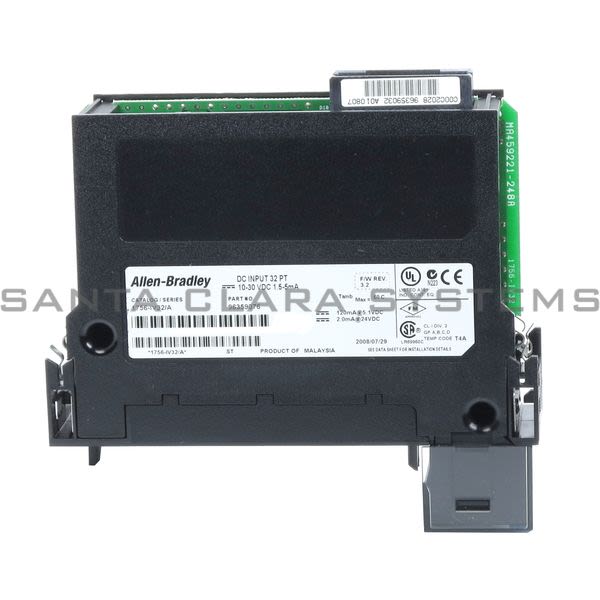

• Allen Bradley 1756-IV32 Input Module | ControlLogix Product Image

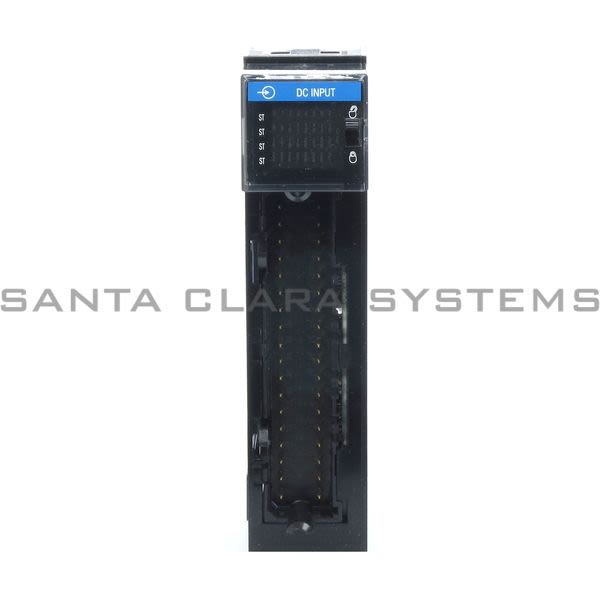

  • Allen Bradley 1756-IV32 Input Module | ControlLogix Product Image
  • Allen Bradley 1756-IV32 Input Module | ControlLogix Product Image
  • Allen Bradley 1756-IV32 Barcode
  • Allen Bradley 1756-IV32 Profile

    Profile

  • Allen Bradley 1756-IV32 Technical Data

    Technical Data

  • Allen Bradley 1756-IV32 User Manual

    User Manual

  • Allen Bradley 1756-IV32 Packaging Contents

    Packaging Contents

  • More Catalog PDFs

    More PDFs

1756-IV32

Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Input Module | ControlLogix
  • Product Type: DC (1030V) Sourcing Input Module
  • Product Series: 1756 ControlLogix I/O Modules
  • Inputs: 32 (16 points/group)
  • Voltage category: 12/24V DC source
  • Operating voltage range: 10...30V DC
  • Input voltage, nom: 24V DC
  • Current draw @ 5.1V: 120 mA
  • Current draw @ 24V: 2 mA
  • Total backplane power: 0.66 W
  • Power dissipation, max: 4.1 W @ 60 C (140 F)
  • Thermal dissipation: 14 BTU/hr @ 60 C (140 F)
  • Off-state voltage, max: 5V
  • Off-state current, max: 1.5 mA
  • On-state current, min: 2 mA @ 10V DC
  • On-state current, max: 3.5 mA @ 30V DC
  • Inrush current, max: 250 mA (decaying to <37% in 22 ms, without activation)
  • Isolation voltage: 250V (continuous), basic insulation type, inputs-to-backplane, and input group-to-group No isolation between individual group inputs
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-IV32 . Santa Clara Systems carries 53,601 items from Allen Bradley.
