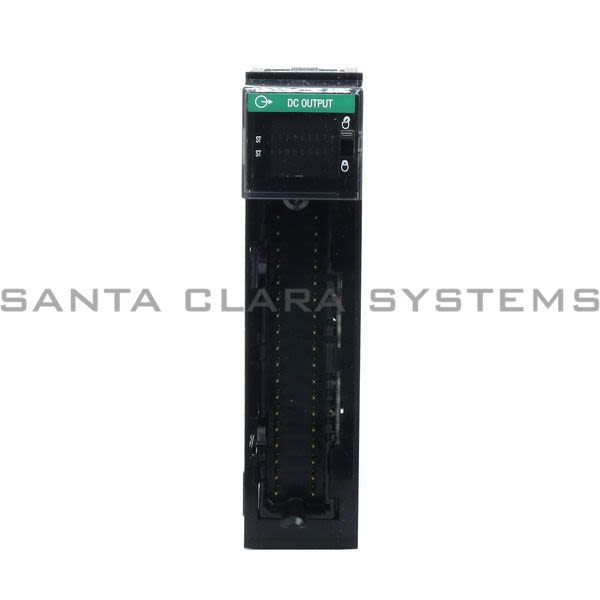

• Allen Bradley 1756-OB16IS Digital DC Output Module | ControlLogix Product Image

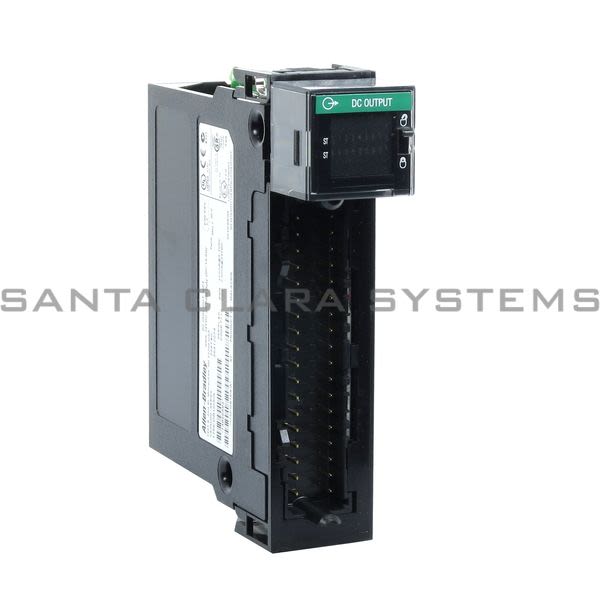

  • Allen Bradley 1756-OB16IS Digital DC Output Module | ControlLogix Product Image

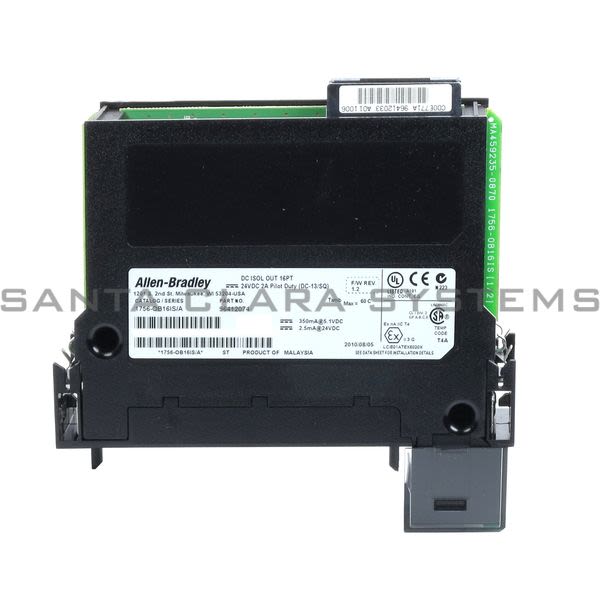

  • Allen Bradley 1756-OB16IS Digital DC Output Module | ControlLogix Product Image
  • Allen Bradley 1756-OB16IS Barcode
  • Allen Bradley 1756-OB16IS Application Techniques

    Application Techniques

  • Allen Bradley 1756-OB16IS Release Notes

    Release Notes

  • Allen Bradley 1756-OB16IS Technical Data

    Technical Data

  • Allen Bradley 1756-OB16IS User Manual

    User Manual

  • More Catalog PDFs

    More PDFs

1756-OB16IS

Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Digital DC Output Module | ControlLogix
  • Enclosure type: None (open-style)
  • Product Type: 24V DC Scheduled, Isolated Output Module
  • Product Series: 1756 ControlLogix I/O Modules
  • No. of Outputs: 16 Individually Isolated, 8 Scheduled
  • Pilot Duty: 2 A (DC-13SQ)
  • Voltage Category: 12/24V DC sink/source
  • Current draw @ 5.1V: 350 mA
  • Current draw @ 24V: 2.5 mA
  • Total backplane power: 1.8 W
  • Thermal dissipation: 12.28 BTU/hr
  • Off-state leakage current per point, max: 0.5 mA per point
  • On-state voltage drop, max: 1.2V DC @ 2 A
  • Surge current per point: 4 A for 10 ms per point, repeatable every 2 s
  • Load current, min: 1 mA per point
  • Isolation voltage: 250V (continuous)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OB16IS . Santa Clara Systems carries 53,601 items from Allen Bradley.
