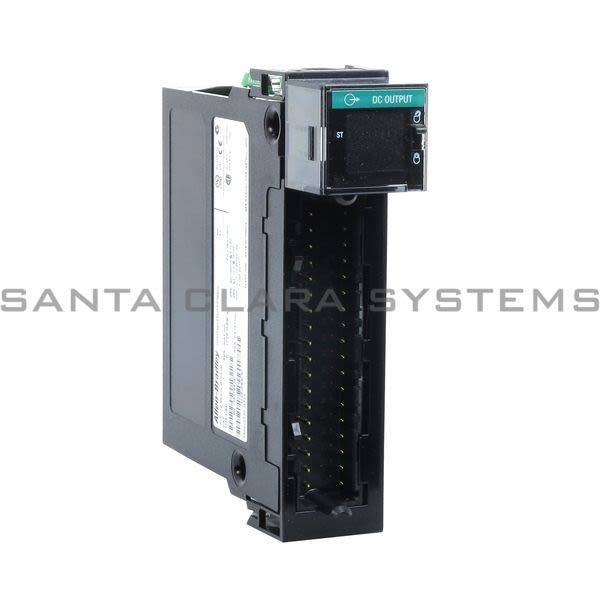

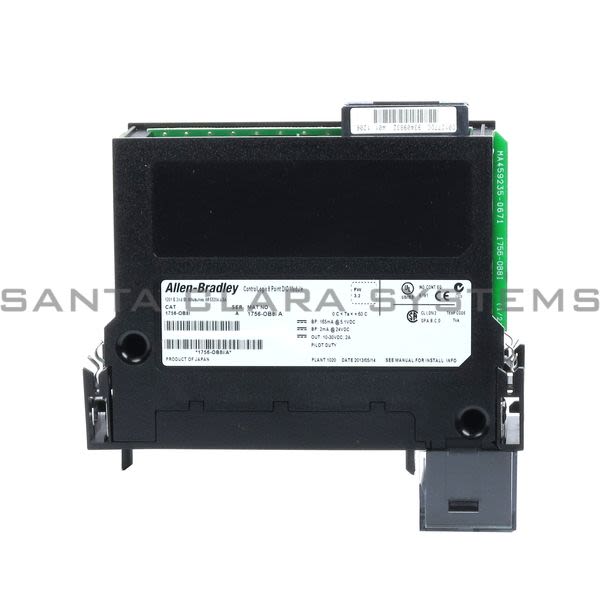

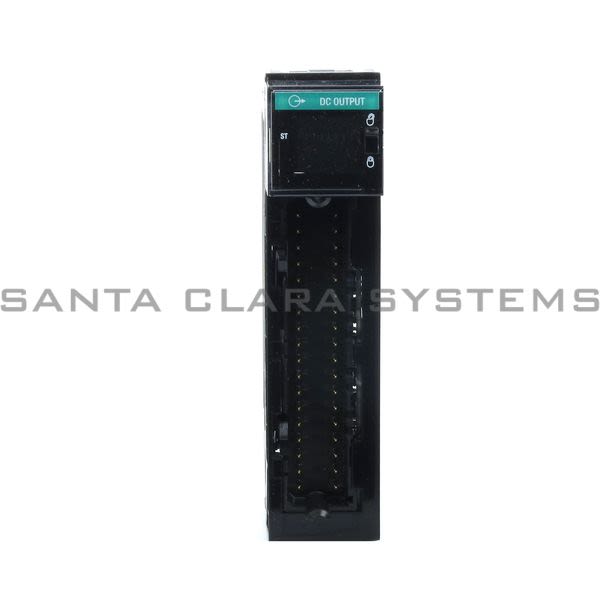

- Description: 8-Point Isolated Output
- Enclosure type: None (open-style)
- Product Type: DC (10...30V) Isolated Output Module
- Product Series: 1756 ControlLogix I/O Modules
- No. of Outputs: 8 Individually Isolated
- Voltage category: 12/24V DC source
- Operating voltage range: 10...30V DC
- Current draw @ 5.1V: 165 mA
- Current draw @ 24V: 2 mA
- Total backplane power: 0.89 W
- Thermal dissipation: 15.70 BTU/hr
- Off-state leakage current, max: 0.5 mA per point
- On-state voltage drop, max: 0.5V DC @ 2 A
- Load current, min: 2 mA
- Isolation voltage: 250V (continuous)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OB8I . Santa Clara Systems carries 53,635 items from Allen Bradley.
