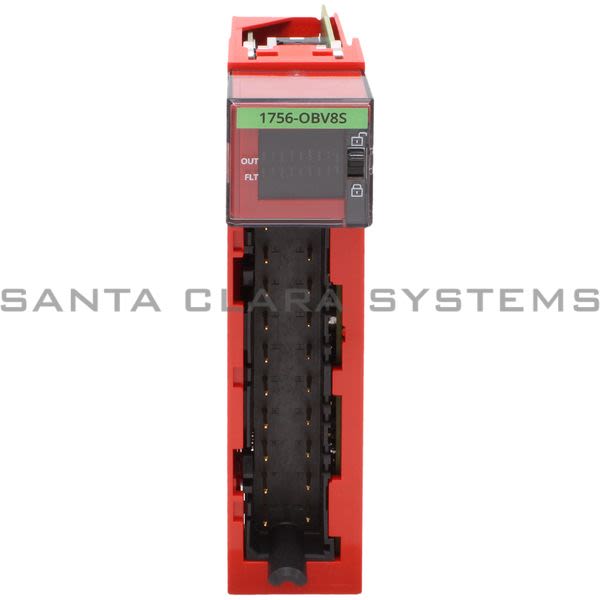

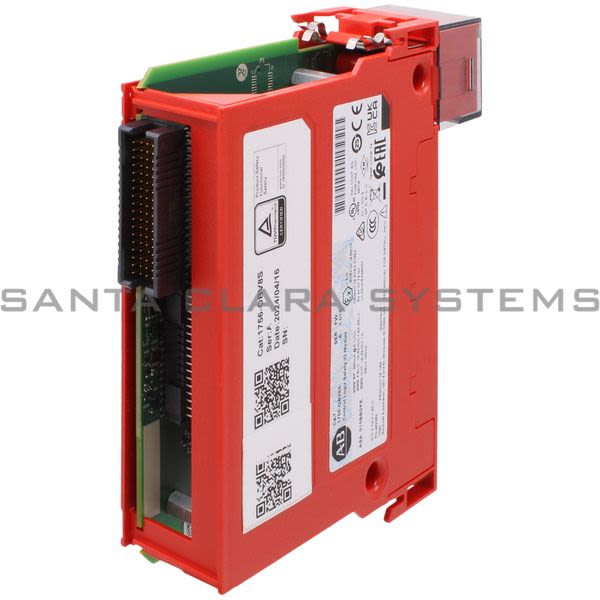

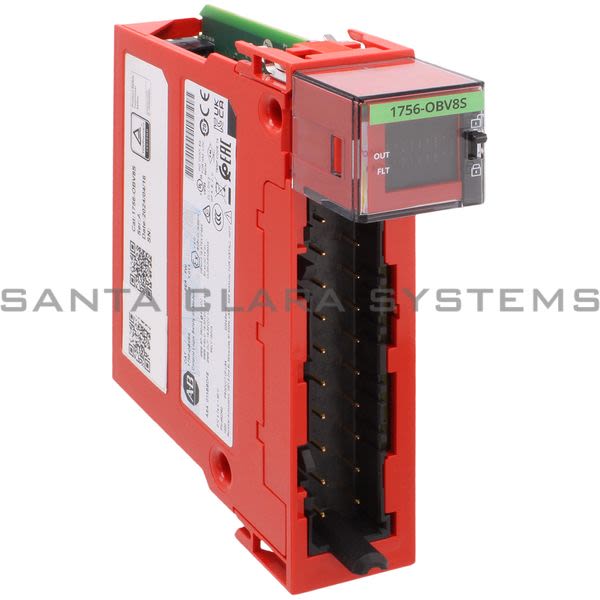

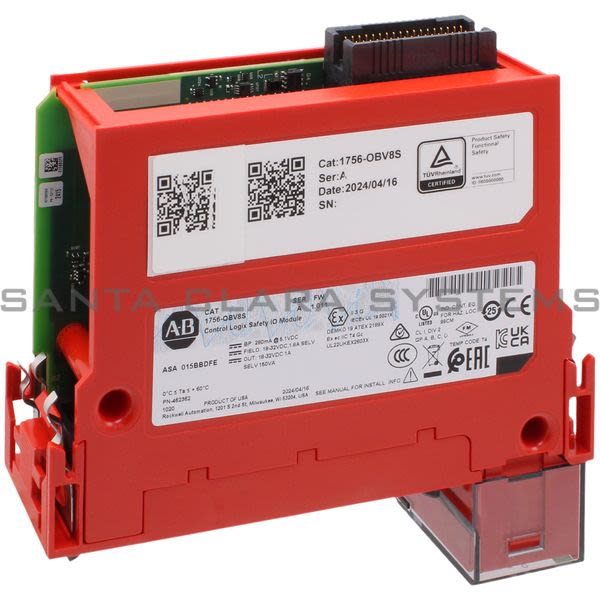

1756-OBV8S

Allen Bradley - Safety Output Module

Current response time:

11 Minutes 29 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Safety Output Module
Product Type: DC (18...32V) Safety Bipolar/Sourcing Output Module
Enclosure type rating: None (open-style)
Product Series: 1756 ControlLogix I/O Modules
Outputs: 8
Voltage category: 24V DC
Current draw @ 5.1V: 280 mA
Total backplane power: 1.43 W
Field Power voltage range: 18...32V DC SELV/PELV

Field Power current, max: 8.1 A SELV/PELV
Output Power voltage range: 18...32V
Output Power current, max: 1 A SELV/PELV 150VA
Field Power: 1 A per channel @ 18...32V DC | 8.1 A per module @ 18...32V DC
Pilot Duty: 2.4 A inrush
Power dissipation, max: 8 W
Thermal dissipation, max: 27.28 BTU/hr
Isolation voltage: 60V (continuous), Basic Insulation Channels-To-Backplane | No Isolation Between DC Power And Channels or Between Individual Ports
