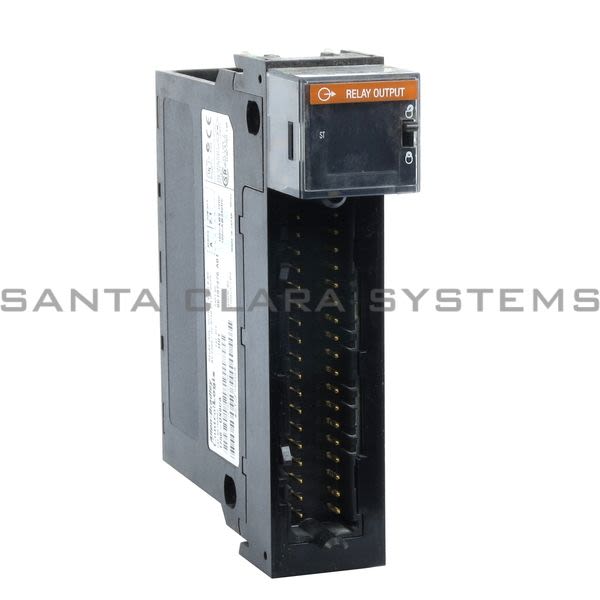

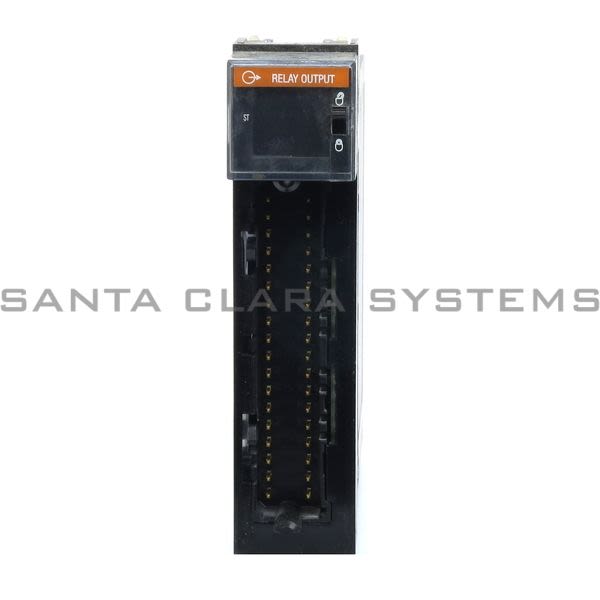

- Description: Output Module | ControlLogix
- Enclosure type: None (open-style)
- Product Type: AC (10240V) DC (5125V) Isolated Contact Module
- Product Series: 1756 ControlLogix I/O Modules
- Outputs: 8 N.O. | 8 N.C. individually isolated (two points per group)
- Pilot duty: C300/R150
- Operating voltage range: 5125V DC | 10240V AC
- Current draw @ 5.1V: 100 mA
- Current draw @ 24V: 100 mA
- Total backplane power: 2.9 W
- Thermal dissipation: 10.57 BTU/hr
- Off-state leakage current per point, max: 0 mA
- Minimum load current: 10 mA per point
- Switching frequency, max: 1 operation/3 s (0.3 Hz at rated load)
- Bounce time, mean: 1.2 ms
- Expected contact life: 300 kHz resistive | 100 kHz inductive
- Isolation voltage: 250V (continuous)
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1756-OX8I . Santa Clara Systems carries 53,612 items from Allen Bradley.
