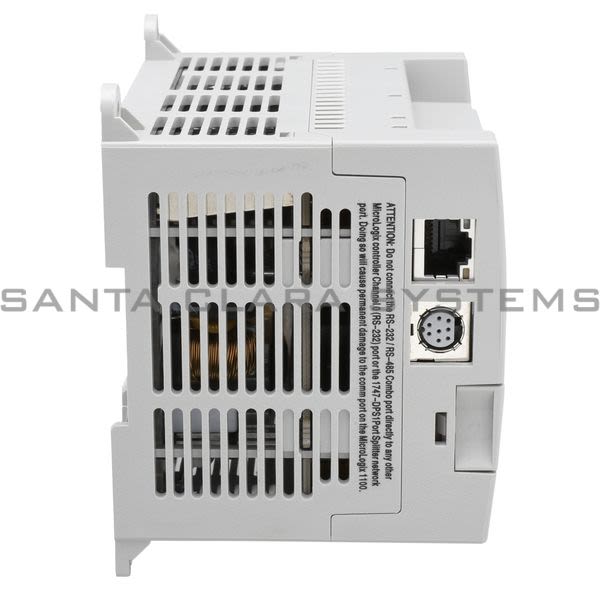

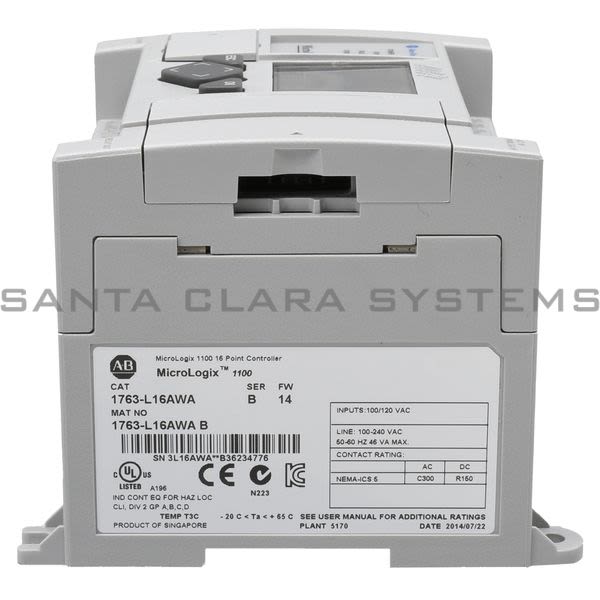

1763-L16AWA

Allen Bradley - Controller | MicroLogix 1100

Current response time:

13 Minutes 9 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Controller | MicroLogix 1100
Product Type: Programmable Controller
Weight: 0.9 kg (2.0 lbs)
Dimensions: Height: 90 mm (3.5 in.), 104 mm (4.09 in.) (with DIN latch open) | Width: 110 mm (4.33 in.) | Depth: 87 mm (3.43 in.)
Number of I/O: 12 inputs (10 digital and 2 analog) and 6 outputs
Power Supply Voltage: 100...240V ac (-15%, +10%) at 47...63 Hz
Power Supply Inrush Current: 120V ac: 25 A for 8 ms | 240V ac: 40 A for 4 ms
Power Consumption: 46 VA
Input Circuit Type: Digital: 120V ac | Analog: 0...10V dc

Output Circuit Type: Relay
Digital Input - Voltage Range (on-state/off-state): 79...132V AC | 0...20V AC
Digital Input - On-State Current: Min.:5.0 mA @ 79V AC | Nom.:12 mA @ 120V AC | Max.:16.0 mA @ 132V AC
Analog Input - Voltage Range: 0...10.0V dc - 1 LSB
Analog Input - Data Type: 10-bit Unsigned Integer
Analog Input - Resolution: 10 Bit
Relay Output - Max. Controlled Load: 1080 VA
Load Current: 10 mA (minimum)
Relay Output - Turn on/off Time: 10 msec (maximum){scan time dependent}

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1763-L16AWA . Santa Clara Systems carries 53,635 items from Allen Bradley.
