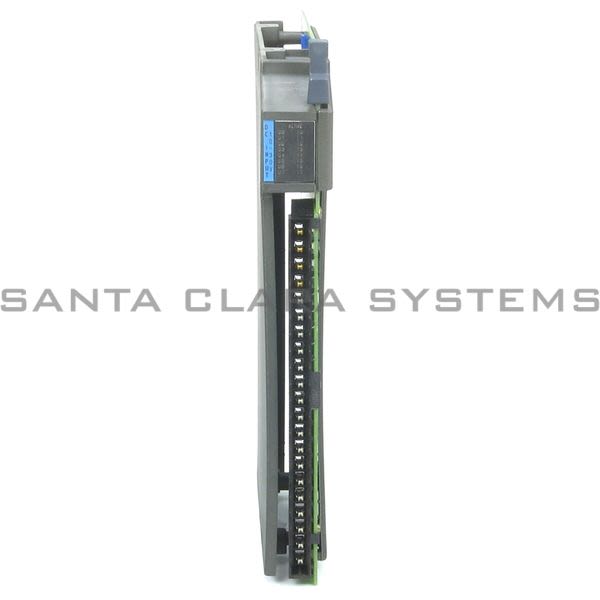

• Allen Bradley 1771-IBD Input Module | PLC 5 Product Image

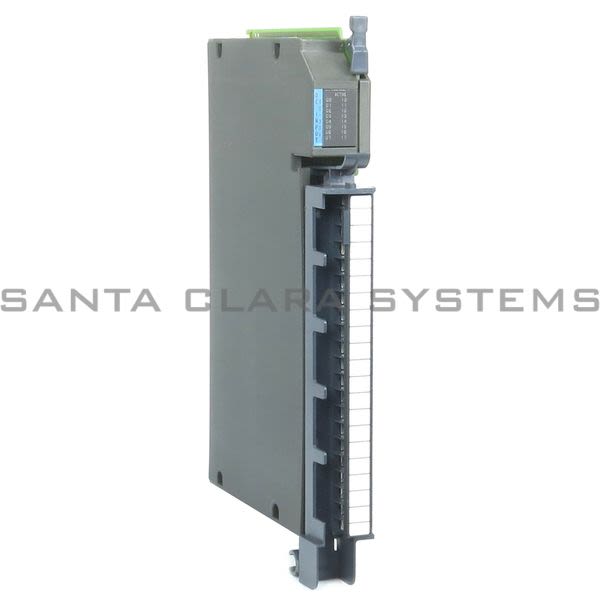

  • Allen Bradley 1771-IBD Input Module | PLC 5 Product Image

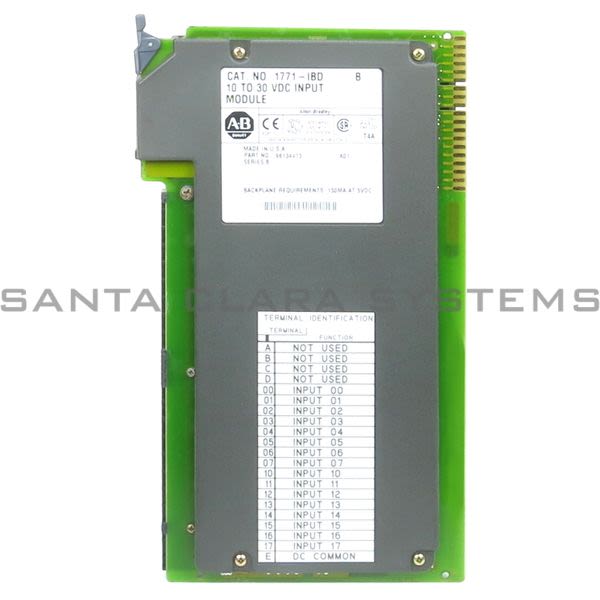

  • Allen Bradley 1771-IBD Input Module | PLC 5 Product Image

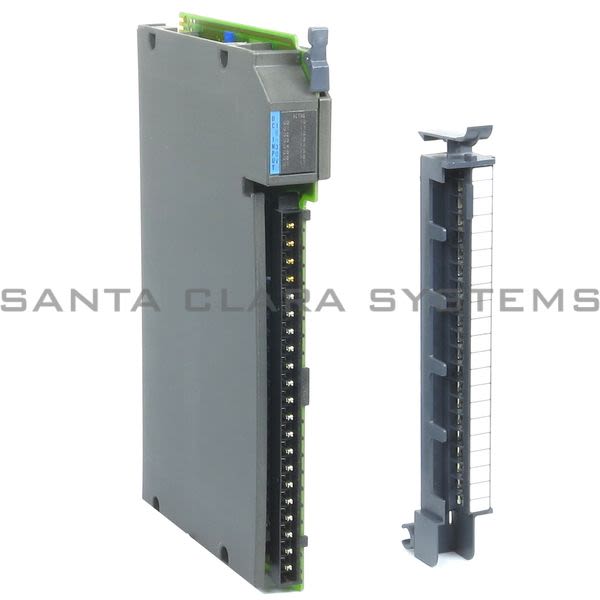

  • Allen Bradley 1771-IBD Input Module | PLC 5 Product Image
  • Allen Bradley 1771-IBD Barcode
  • Allen Bradley 1771-IBD Installation Instructions

    Installation Instructions

  • Allen Bradley 1771-IBD Technical Data

    Technical Data

  • Allen Bradley 1771-IBD Profile

    Profile

  • Allen Bradley 1771-IBD User Manual

    User Manual

  • More Catalog PDFs

    More PDFs

1771-IBD

Get a Quote

Current response time:

By 5AM PT on Friday
  • Description: Input Module | PLC 5
  • Inputs per Module: 16
  • Input Voltage Range: 10 to 30V dc
  • Minimum Input Current: 4.5mA at 10V dc 15mA at 30V dc
  • Minimum Off-state Current: 2.0mA @ 5V dc
  • Maximum Off-state Voltage: 5V dc
  • Minimum On-state Voltage: 10V dc
  • Input Impedance: 2.2K ohms maximum
  • Input Signal Delay: Low to High propagation delay - 1ms High to Low propagation delay selectable - 1ms or 6ms
  • Power Dissipation: 7.3 Watts (max.), 1.0 Watts (min.
  • Thermal Dissipation: 24.7 BTU/hr (max.), 3.4 BTU/hr (min.)
  • Field Wiring Arm: 1771-WH
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1771-IBD . Santa Clara Systems carries 53,601 items from Allen Bradley.
