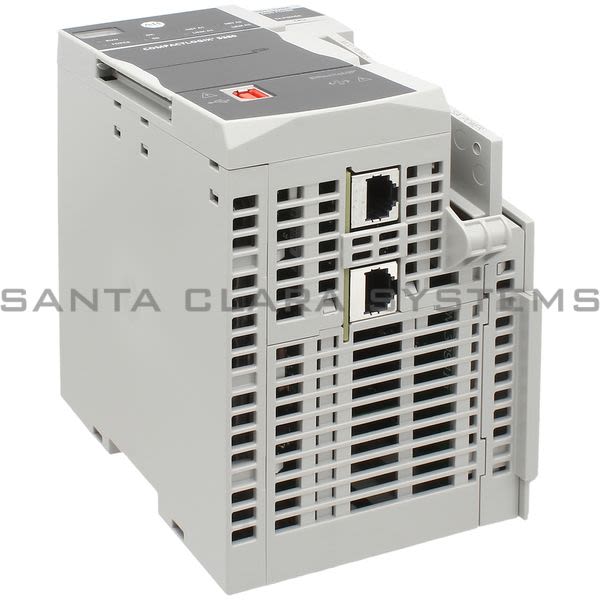

• Allen Bradley 5069-L320ER Controller Product Image
  • Allen Bradley 5069-L320ER Controller Product Image
  • Allen Bradley 5069-L320ER Controller Product Image
  • Allen Bradley 5069-L320ER Controller Product Image
  • Allen Bradley 5069-L320ER Barcode

5069-L320ER

Get a Quote

Current response time:

7 Minutes 56 Seconds
  • Description: Controller
  • Enclosure: None (open-style)
  • Product Type: CompactLogix 5380 Controllers
  • Mounting: DIN rail mount (horizontal mount only)
  • Built-in communication ports: 1 - USB port, 2 - Ethernet ports
  • Controller Tasks (Continuous, Periodic, Event): 32 tasks, 1000 programs/task, All event triggers
  • Dimensions (HxWxD), approx.: 143.97 x 98.10 x 136.81 mm (5.67 x 3.86 x 5.39 in.)
  • Ethernet performance: 10 Mbps, 100 Mbps, 1 Gbps Full-duplex only
  • EtherNet/IP modes supported: Dual-IP mode (Available with the Studio 5000 Logix Designer application, version 29.00.00 or later) Linear/DLR mode
  • EtherNet/IP nodes supported, max: 40
  • Local I/O modules, max: 16
  • MOD Power current rating, max: 10 A (Do not exceed 10 A current draw at the MOD Power RTB.)
  • MOD Power current, max: 450 mA
  • MOD Power inrush: 850 mA for 125 ms
  • MOD Power passthrough: 9.55 A @ 18...32V DC
  • MOD Power voltage range: 18...32V DC
  • Power dissipation, max: 8.5 W
  • SA Power current rating, max: 10 A (AC or DC power) Do not exceed 10 A current draw at the SA Power RTB
  • SA Power current, max: 10 mA (DC power) 25 mA (AC power)
  • SA Power passthrough: 9.95 A @ 0...32V DC 9.975 A @ 0...240V AC, 47...63 Hz ATEX/IECEX, 125V AC max
  • SA Power voltage ranges: 0...32V DC 0...240V AC, 47...63 Hz ATEX/IECEX, 125V AC max
  • Socket interfaces supported, max: 32
  • Thermal dissipation, max: 29 BTU/hr
  • USB port communication: USB 2.0, Type B Full speed (12 Mbps) Programming, configuration, firmware update, and on-line edits only
  • User memory: 2 MB
  • Weight, approx.: 0.768 kg (1.693 lb)
  • Removable Terminal Block Kit Available: 5069-RTB64-SCREW, 5069-RTB64-SPRING
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 5069-L320ER . Santa Clara Systems carries 53,601 items from Allen Bradley.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
