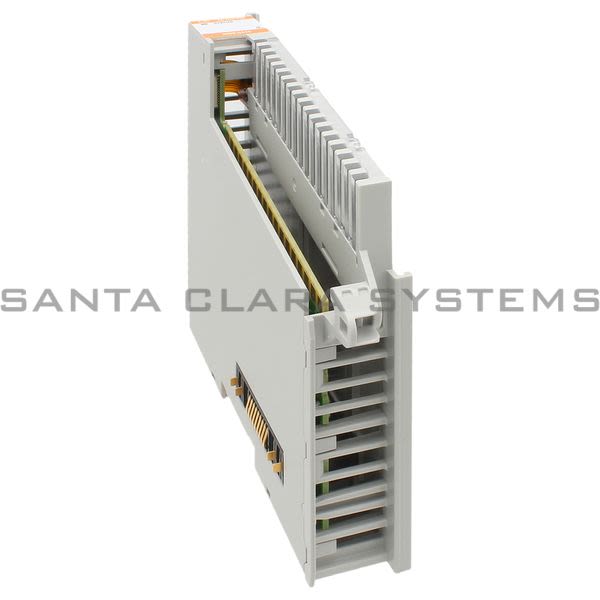

• Allen Bradley 5069-OA16 Output Module Product Image

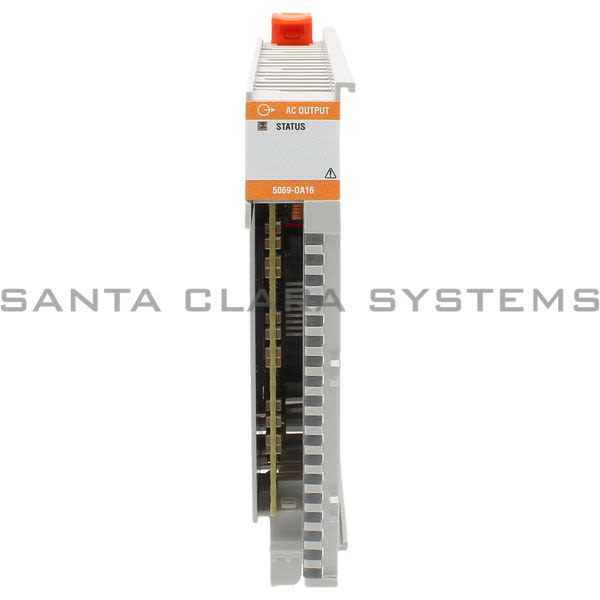

  • Allen Bradley 5069-OA16 Output Module Product Image
  • Allen Bradley 5069-OA16 Output Module Product Image
  • Allen Bradley 5069-OA16 Output Module Product Image
  • Allen Bradley 5069-OA16 Barcode

5069-OA16

Get a Quote

Current response time:

18 Minutes 49 Seconds
  • Description: Output Module
  • Product Type: Digital 16-point 120/240V AC Output Module
  • Mounting: DIN Rail
  • Enclosure Type Rating: None (Open-Style)
  • Product Series: 5069 CompactLogix/Compact GuardLogix System
  • Output Current Per Channel, Max: 0.5 A
  • On-State Voltage (Min, Nom, Max): 85V AC, 120/240V AC, 264V AC
  • On-State Coltage Drop, Max: 1.5V AC @ 0.5 A
  • Output Current per Module, Max: 4 A
  • Surge Current per Point: 5 A Max for 25 ms Per Point, Repeatable Every 2 s
  • Number of Outputs: 16 (One Group of 16)
  • Voltage Category: 120/240V AC
  • Output Voltage Range: 85...264V AC
  • Output Voltage Frequency: 47...63 Hz
  • MOD Power: 100 mA @ 18...32V DC
  • MOD Power Passthrough, Max: 9.55 A @ 18...32V DC
  • SA Power: 4 A @ 85...264V AC
  • SA Power Passthrough, Max: 9.975 A @ 85...264V AC ( Do Not Exceed 10 A MOD or SA Power (Passthrough) Current Draw. )
  • Power Dissipation, Max: 3.4 W
  • Thermal Dissipation, Max: 11.6 BTU/hr
  • Module Keying: Electronic Keying via Programming Software
  • Indicators: 1 Green/Red Module Status Indicator | 16 Yellow/Red I/O Status Indicators
  • Dimensions (HxWxD), Approx: 144.57 x 22 x 105.42 mm (5.69 x 0.87 x 4.15 in.)
  • Weight, Approx: 175 g (0.39 lb)
  • Temperature, Operating: 0 C < Ta < +60 C (+32 F < Ta < +140 F)
  • Temperature, Surrounding Air, Max: 60 C (140 F)
  • Temperature, Nonoperating: -40...+85 C (-40...+185 F)
  • Off-State Leakage Current, Max: 1 mA
