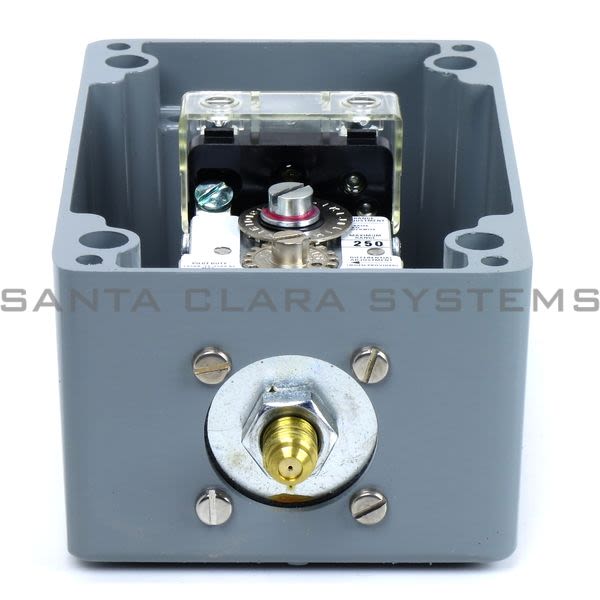

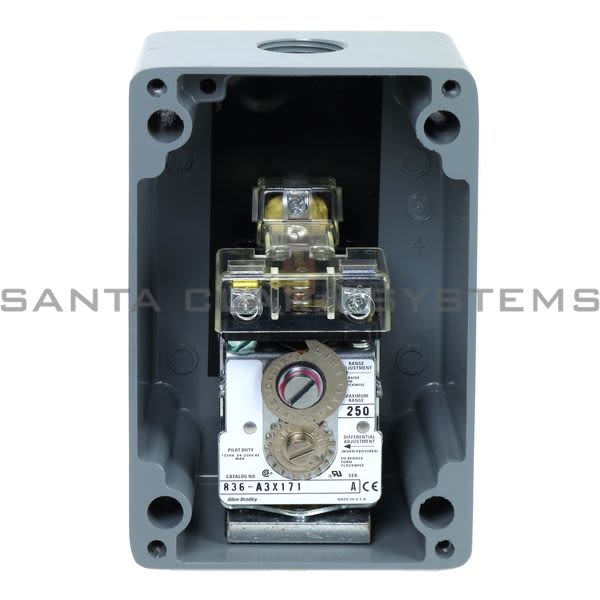

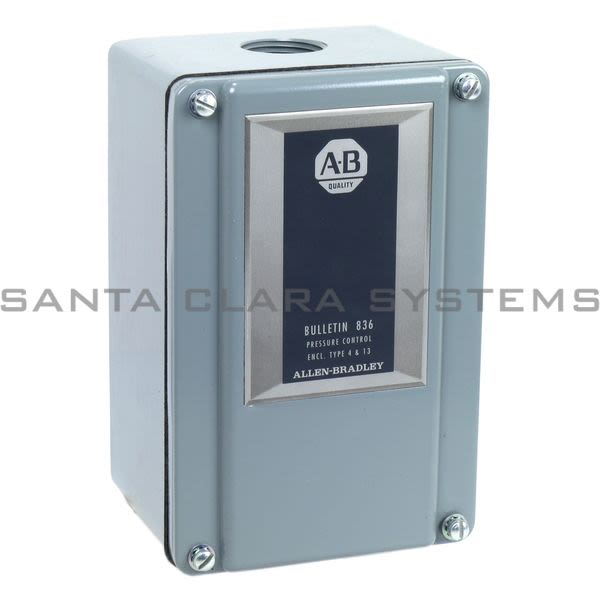

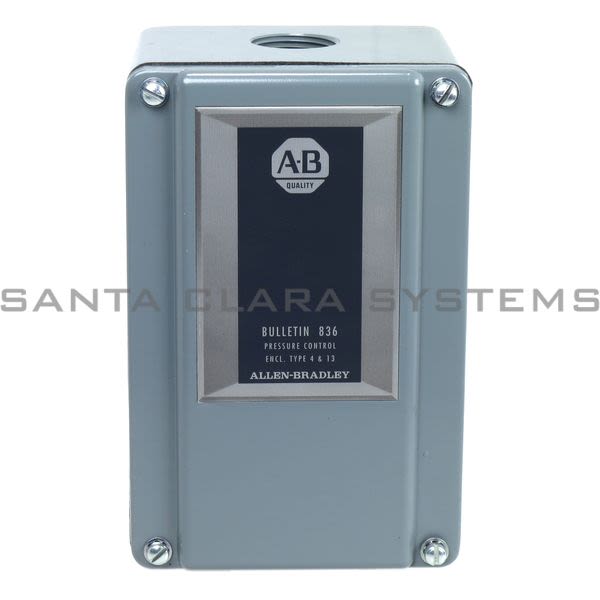

836-A3JX171

Allen Bradley - Pressure Control

Product Summary:

Enclosure Type: Type 4 & 13 Metallic Aluminum enclosure
Maximum Line Pressure: 500
Pressure Specifications: 250 psi.
Adjustable Differential psi (Approximate Mid-Range Values): 6

Current response time:

4 Minutes 20 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Pressure Control
Enclosure Type: Type 4 & 13 Metallic Aluminum enclosure
Custom Trip or Reset Setting: Default Factory SettingStandard pressure controls shipped from the factory are set at the maximum operating range and minimum differential. These settings vary for each pressure switch family depending on the combination of Style, Operator Type, and Pressure Specification configuration options.
Maximum Line Pressure: 500

Device Style: Device Style A, Internal Copper Alloy Bellows7/16 in. - 20 SAE flare for 1/4 in. copper tubing connection.Copper alloy bellows may be used on water or air, and other liquids or gasses not corrosive to this alloy.
Factory Modifications: X171, Single Pole double throw - slow acting contact with no snap action.Control circuit rating: AC-125VA, 24...250V Minimum specified differential value approximately doubles with use of this contact block.
Pressure Specifications: 250 psi.
Adjustable Differential psi (Approximate Mid-Range Values): 6

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 836-A3JX171 . Santa Clara Systems carries 55,747 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
