836-C64AX231

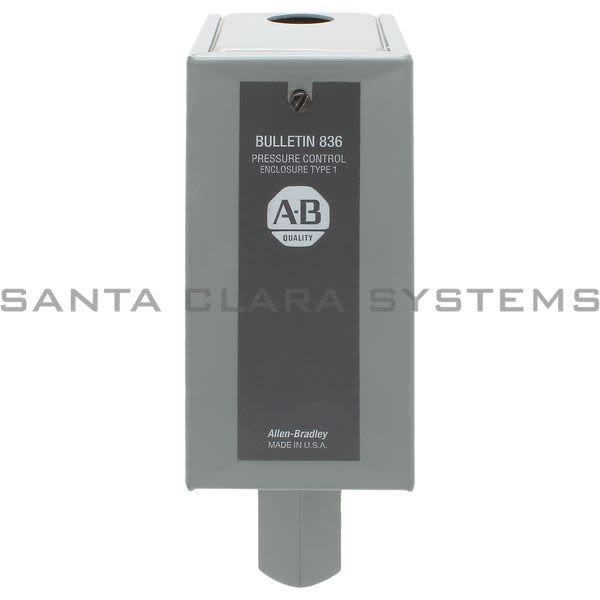

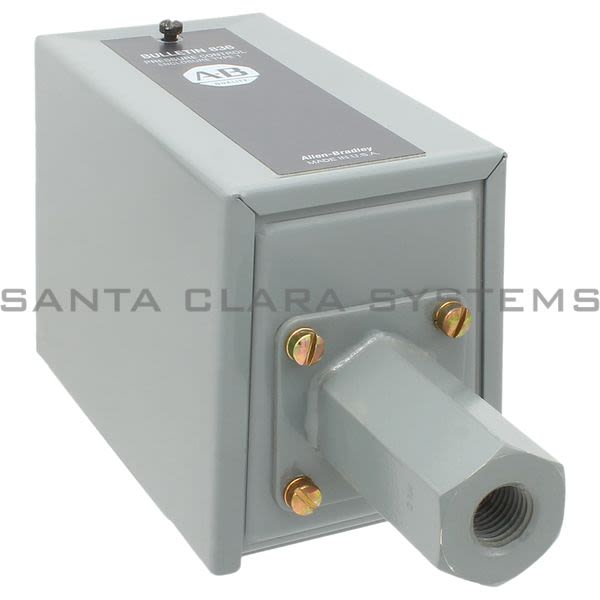

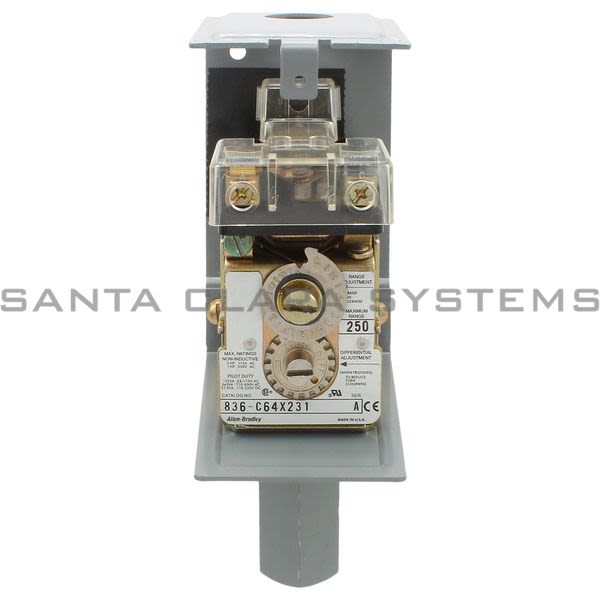

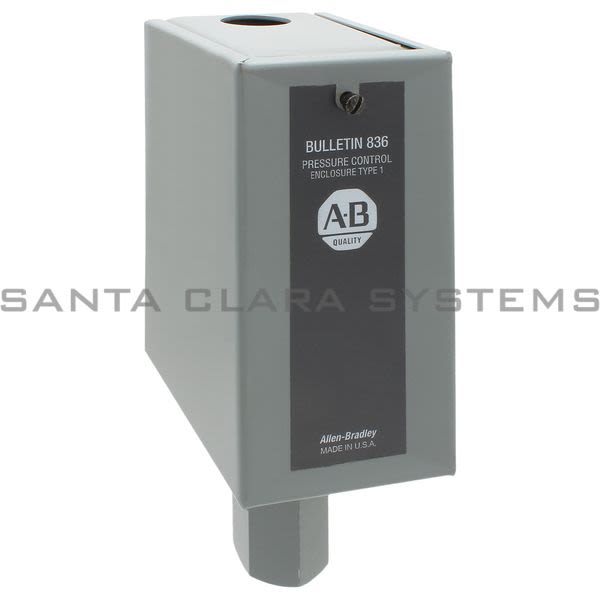

Allen Bradley - Pressure Control

Product Summary:

Enclosure Type: Type 1 enclosure
Maximum Line Pressure: 450
Pressure Specifications: 250 psi.
Adjustable Differential psi (Approximate Mid-Range Values): 4

Current response time:

10 Minutes 13 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: Pressure Control
Enclosure Type: Type 1 enclosure
Custom Trip or Reset Setting: Default Factory SettingStandard pressure controls shipped from the factory are set at the maximum operating range and minimum differential. These settings vary for each pressure switch family depending on the combination of Style, Operator Type, and Pressure Specification configuration options.
Maximum Line Pressure: 450

Device Style: Device Style C, Stainless Steel External Bellows1/4 in. N.P.T.F. female pipe connection. Type 316 stainless steel bellows are available for more corrosive liquids or gasses.
Factory Modifications: X231, Single pole single throw, normally closed - opens on rise.Rating: 0.5 HP, 115VAC. 1HP, 230VAC. + Control circuit rating: AC-125 VA, 24...110V. AC-345 VA, 110...600V. DC-57.5 VA, 110...250V Minimum specified differential value approximately doubles with use of this contact block.
Pressure Specifications: 250 psi.
Adjustable Differential psi (Approximate Mid-Range Values): 4

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 836-C64AX231 . Santa Clara Systems carries 55,747 items from Allen Bradley.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
