931H-P2A2N-OP

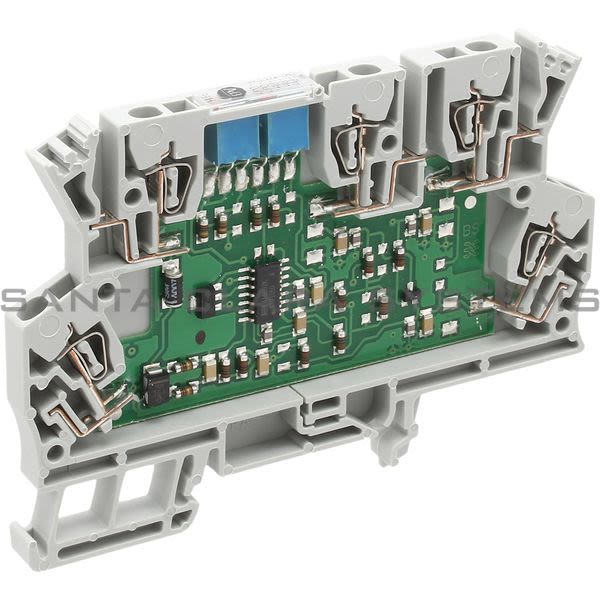

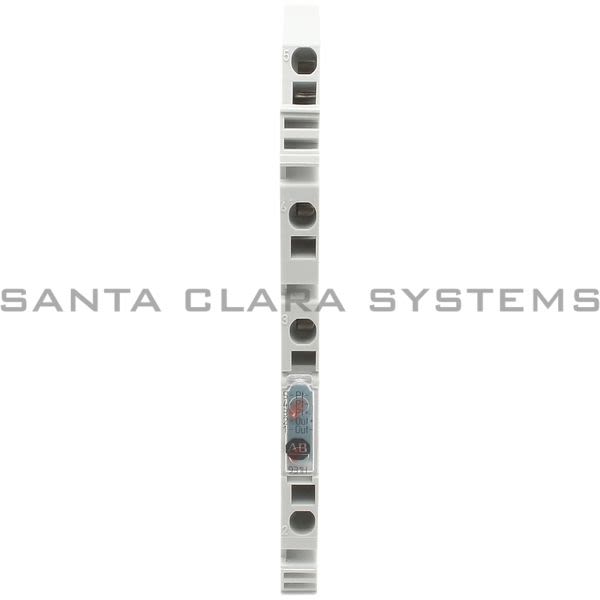

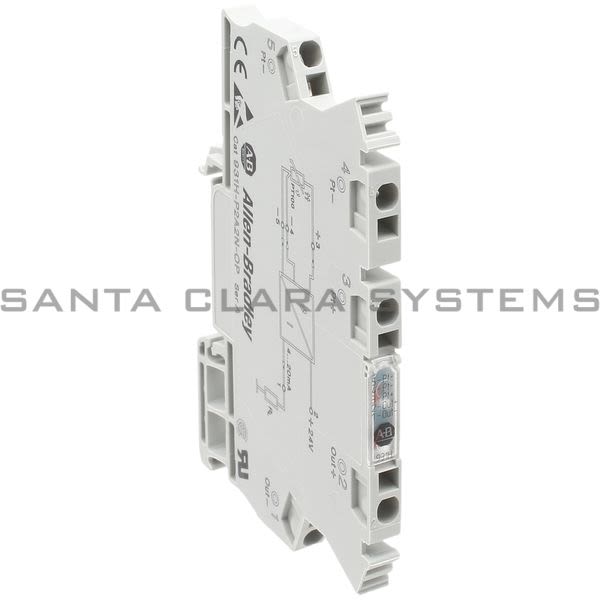

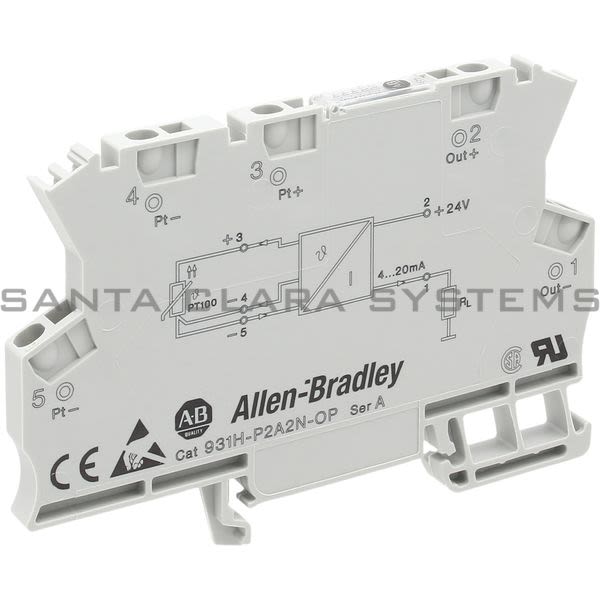

Allen Bradley - High Density Signal Conditioner, Active Converter, PT100/RTD

Current response time:

13 Minutes 3 Seconds

* Santa Clara Systems is not a Rockwell Automation Authorized Distributor .

Description: High Density Signal Conditioner, Active Converter, PT100/RTD
Power Supply: DC Output Loop Powered
Input Type: RTD
Output Type: Current

Family: High Density
Output Current Range: 4...20 mA
Device: 931H-P2A2N-OP : Active Converter, PT100/RTD , Input: Pt100 2-/3-conductor (0...200degC) , Output: 4...20mA , 6 W x 91 L x 63.2 H (mm) , Fixed Function/Range , Output Loop Powered
Application Note: 931H-EB1 End Barriers are required for 931H-A1A1N-IP and 931H-P2A2N-OP Signal Conditioners. , An End Barrier is required for the right hand side of these Signal Conditioners. If several Signal Conditioners are mounted together on a DIN rail, then only one End Barrier is required for the last Signal Conditioner in the group (each additional Signal Conditioner acts as an end barrier for the next one to it's right).

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 931H-P2A2N-OP . Santa Clara Systems carries 53,612 items from Allen Bradley.

931H-P2A2N-OP Technical Data

931H-P2A2N-OP Profile

931H-P2A2N-OP Catalog
