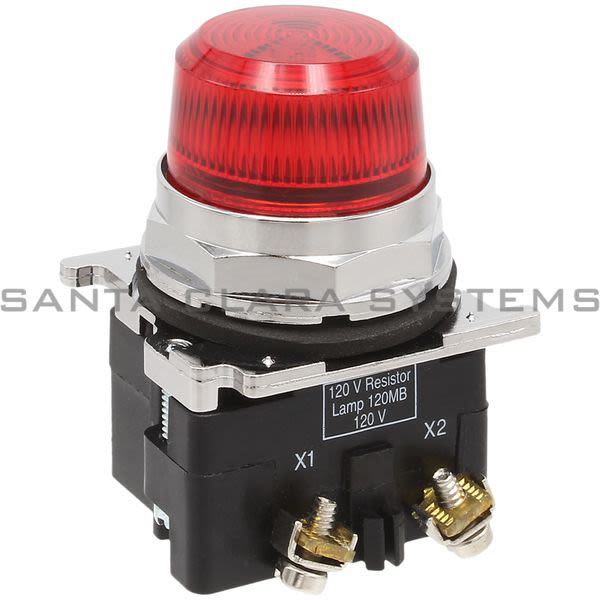

• Cutler-Hammer 10250T201NC1N Pilot Light Red Incandescent Product Image

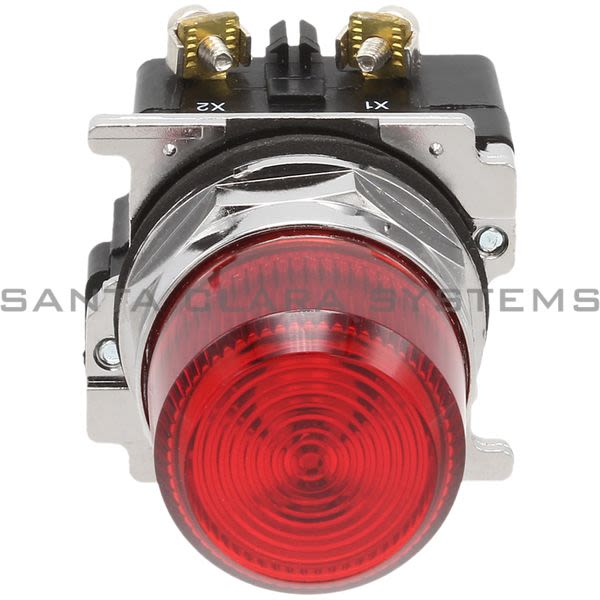

  • Cutler-Hammer 10250T201NC1N Pilot Light Red Incandescent Product Image

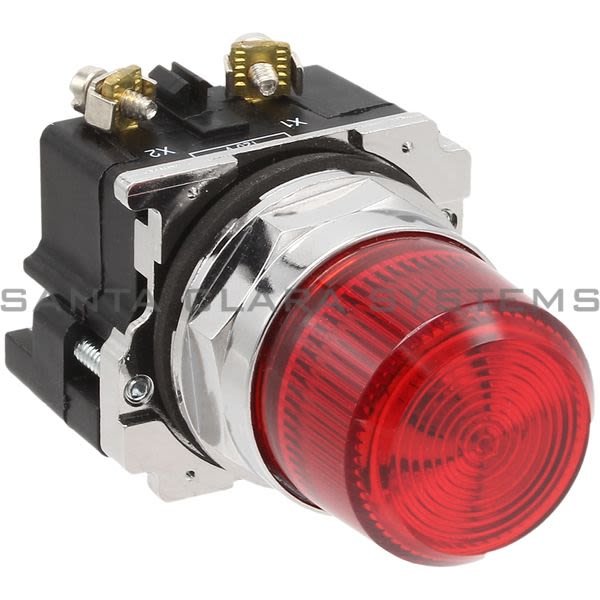

  • Cutler-Hammer 10250T201NC1N Pilot Light Red Incandescent Product Image
  • Cutler-Hammer 10250T201NC1N Barcode

10250T201NC1N

Get a Quote

Current response time:

By 5AM PT on Tuesday
  • Description: Pilot Light Red Incandescent
  • UPC: 782113366739
  • Terminal Type: Screw
  • Lens Color: Red
  • Lamp Type: Incandescent
  • Style: 30.5 mm
  • Mounting Size (mm): 30
  • Nominal Lamp Voltage: 120 VAC;120 VDC
  • Lens Shape: Flat Round
  • Illumination Circuit: Resistor Type
  • Bezel Style: Chrome Metal
  • Depth Behind Panel: 1.1 Inches
  • NEMA Rating: NEMA 1;NEMA 2;NEMA 3;NEMA 3R;NEMA 3S;NEMA 4;NEMA 4X;NEMA 12;NEMA 13
  • IEC Rating: IP65
  • Approvals: UL;CSA;CE
  • H x W x D: 3.2 in x 2.1 in x 2.4 in
  • Net Weight: 6.4 OZ
  • Gross Weight: 6.4 OZ
  • Supply voltage: 120 Vac
  • Light unit type: Incandescent, resistor
  • Series: 10250T
  • Type: Heavy-Duty Watertight/Oiltight
  • Lens material: Plastic
  • Actuator: Standard
  • Product specification guides: Eaton Specification Sheet - 10250T201NC1N
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 10250T201NC1N . Santa Clara Systems carries 16,178 items from Cutler-Hammer.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
