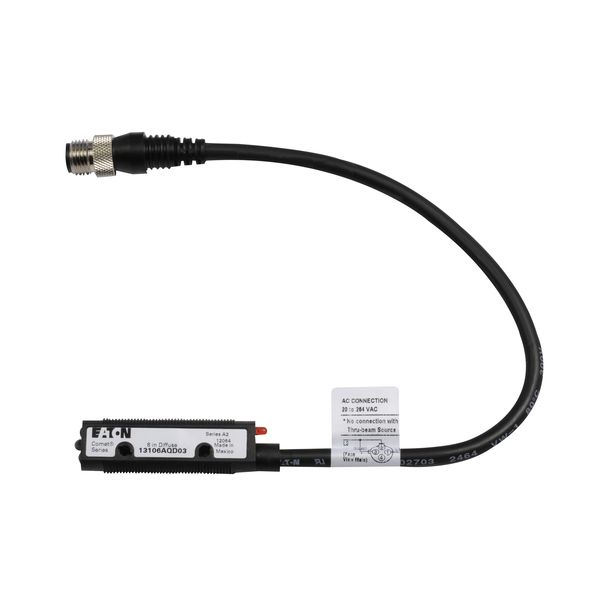

13106AQD03

Cutler-Hammer - Sensor

Current response time:

15 Minutes 13 Seconds

Description: Sensor
Input Voltage: 20-264 Vac/15-30 Vdc
Contact Configuration: AC: L1 Switched, DC: NPN Open Collector
Operating Mode: Diffuse Reflective
Operating Temperature: -40° to 158°F (-40° to 70°C)
Switch Type: Photoelectric
Cord Length: 8 IN
Maximum Ac Current: 300 mA
Maximum Dc Current: 300 mA
Connection: 4 Pin Dual Key Micro Connector
Cable Type: PVC
Sensor Type: Diffuse Reflective
Contact Rating: 300 mA AC/DC at 20-264Vac/15-30Vdc

Environmental Rating: NEMA 1,3,4,4X,6,6P,12,13, IP68, IP69K
Protection: Latching short circuit
Diameter: .71 IN
Led Indicators: Red output status
Product Length/Depth: .47 IN
Product Height: 2.2 IN
Product Width: .71 IN
Product Weight: .1313 LB
Compliances: CE Marked
Certifications: UL Recognized
AC current - max: 300 mA
DC current - max: 300 mA
LED indicator: Red output status
