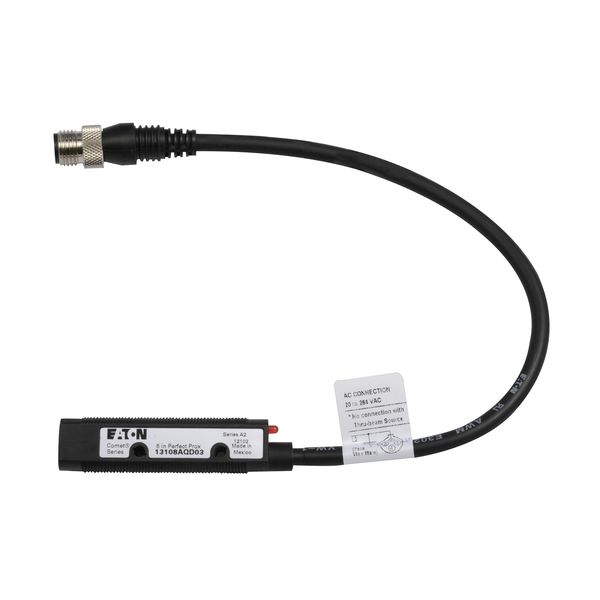

13108AQD03

Cutler-Hammer - Proximity Switch

Product Summary:

Input Voltage: 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)
Contact Configuration: AC: L1 switched, DC: NPN open collector
Operating Temperature: -40 to 158F (-40 to 70C)
Maximum Ac Current: 300 mA
Maximum Dc Current: 300 mA

Current response time:

15 Minutes 12 Seconds

Description: Proximity Switch
Input Voltage: 20-264 Vac 50/60 Hz, 15-30 Vdc (NPN)
Contact Configuration: AC: L1 switched, DC: NPN open collector
Operating Temperature: -40 to 158F (-40 to 70C)
Maximum Ac Current: 300 mA
Maximum Dc Current: 300 mA
Connection: Dual key micro
Enclosure Material: Polyurethane Foam (RIM)
Series: Comet
Type: Back Ground Suppression
Contact Rating: 300 mA AC/DC at 20-264 Vac/15-30 Vdc
Number Of Pins: 4 pin

Environmental Rating: NEMA 1, 3, 4, 4X, 6, 12, 13, IP69k
Protection: Latching S/C
Led Indicators: Output ON
Product Length/Depth: 6.25 IN
Product Height: 2 IN
Product Width: 5.25 IN
Product Weight: .7 LB
Compliances: CE Marked
Certifications: cUL Recognized
AC current - max: 300 mA
DC current - max: 300 mA
LED indicator: Output ON

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 13108AQD03 . Santa Clara Systems carries 15,839 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
