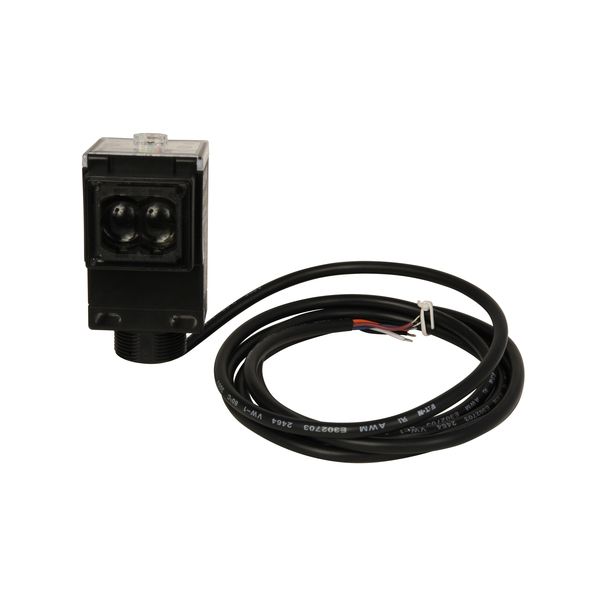

- Description: Photoelectric Switch
- Input Voltage: 24-240 Vac, 12-240 Vdc
- Contact Configuration: SPDT Form C relay
- Operating Mode: Diffuse Reflective
- Operating Temperature: -13° to 131°F (-25° to 55°C)
- Cord Length: 79.2 FT
- Maximum Ac Current: 3A
- Cable Type: PVC
- Enclosure Material: Fiberglass reinforced plastic
- Type: Photoelectric Sensor
- Sensor Type: Diffuse Reflective
- Contact Rating: 3A at 240V
- Environmental Rating: IP67, IP69K
- Protection: Output S/C, overcurrent and reverse polarity
- Led Indicators: Output (green), power (yellow), alignment (red)
- Product Length/Depth: 3.46 IN
- Product Height: 1.81 IN
- Product Width: 1.91 IN
- Product Weight: .7 LB
- Compliances: RoHS Compliant
- Certifications: CSA Certified
- Switch Type: Photoelectric
- Connection: 5 Pin dual key micro pigtail connector
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on 1351E-6514 . Santa Clara Systems carries 16,288 items from Cutler-Hammer.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
