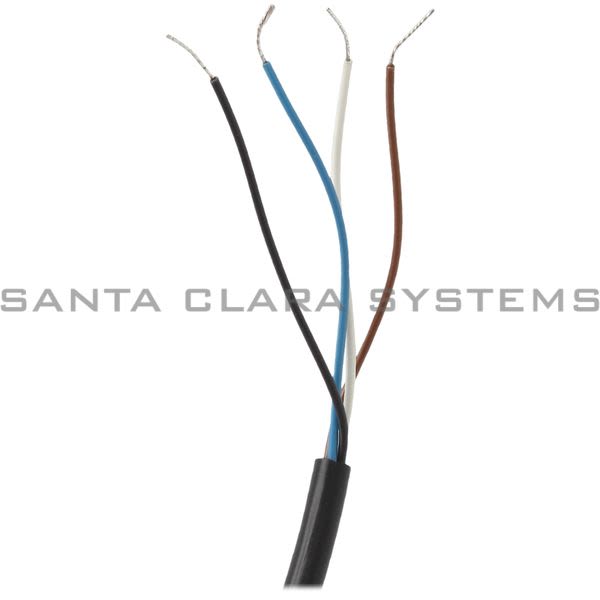

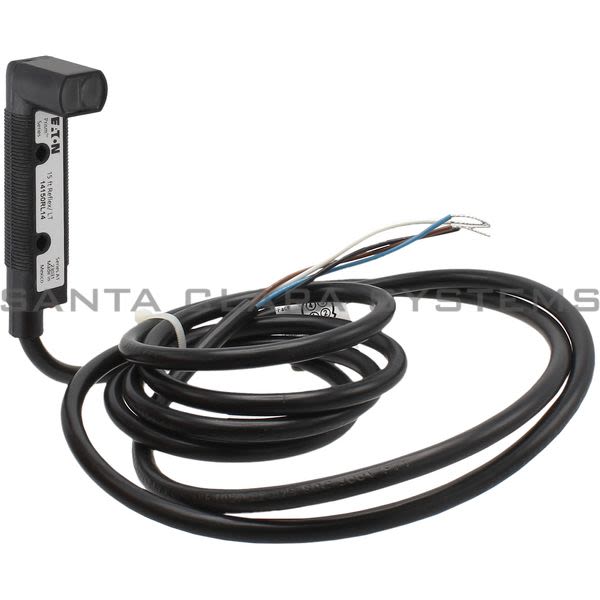

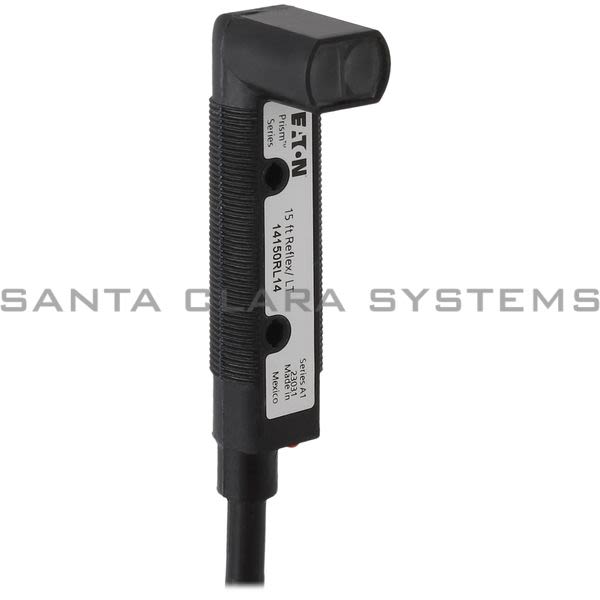

14150RL14

Cutler-Hammer - PhotoSwitch

Current response time:

By 5AM PT on Monday

Emergency?

Description: PhotoSwitch
Input Voltage: 20–132 Vac/15-30 Vdc
Contact Configuration: Isolated Solid State Relay
Operating Mode: Non Polarized Retroreflective
Operating Temperature: -13° to 131°F (-25° to 55°C)
Switch Type: Photoelectric
Cord Length: 79.2 FT
Maximum Ac Current: 80 mA
Maximum Dc Current: 110 mA
Connection: 6.6 Ft. ( 2m ) Cable
Cable Type: PVC
Sensor Type: Retroreflective
Contact Rating: 80 mA at 132 Vac / 110 mA at 132Vdc

Environmental Rating: NEMA 1,3,4,4X,6,6P,12,13
Protection: Current Limited for loads less than 32V AC or DC
Diameter: .71 IN
Led Indicators: Red output status
Product Length/Depth: .47 IN
Product Height: 2.75 IN
Product Width: .71 IN
Product Weight: .2875 LB
Compliances: CE Marked
Certifications: UL Recognized
AC current - max: 80 mA
DC current - max: 110 mA
LED indicator: Red output status
