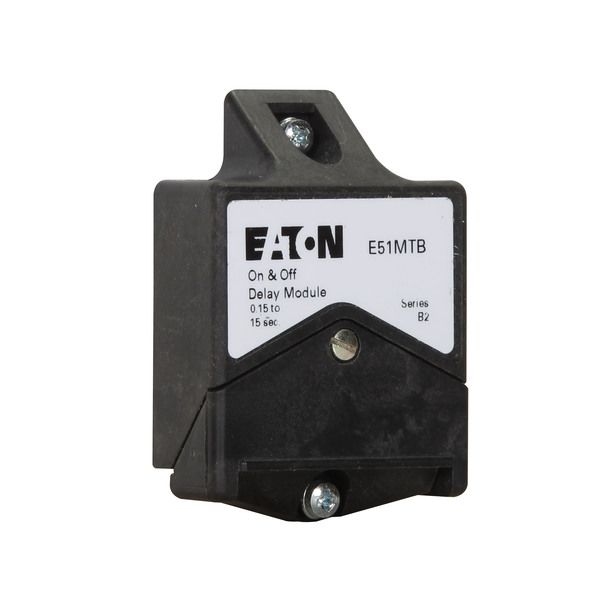

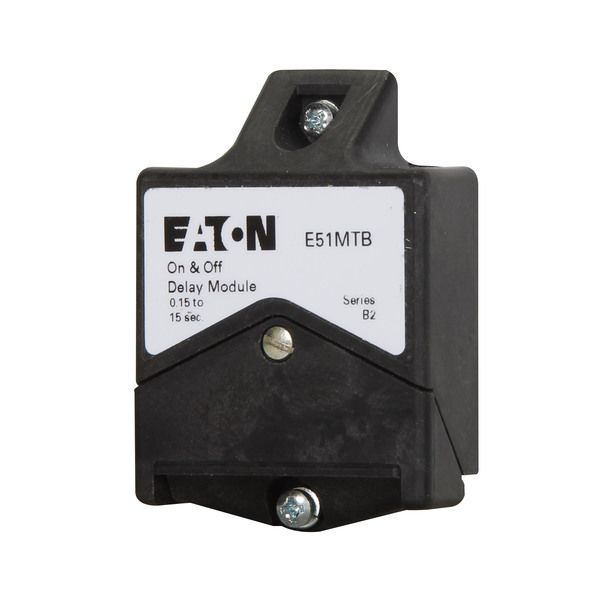

E51MTB

Cutler-Hammer - Logic Module

Product Summary:

Input Voltage: 10–30 Vdc
Contact Configuration: Complementary NPN open collector
Operating Mode: Fiberoptic
Operating Temperature: -13° to 158°F (-25° to 70°C)
Enclosure Material: Receptacle and body: Die cast Zinc, head: plastic

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Logic Module
Input Voltage: 10–30 Vdc
Contact Configuration: Complementary NPN open collector
Operating Mode: Fiberoptic
Operating Temperature: -13° to 158°F (-25° to 70°C)
Enclosure Material: Receptacle and body: Die cast Zinc, head: plastic
Sensor Type: Fiberoptic
Switch Type: Photoelectric
Contact Rating: 600 mA
Maximum Dc Current: 600 mA

Connection: Screw terminals
Environmental Rating: NEMA 3,3S,4,4X,6,6P,12,13, IP67
Led Indicators: Lights when output is ON. One red LED for each output
Product Length/Depth: 1.54 IN
Product Height: 4.89 IN
Product Width: 1.82 IN
Product Weight: .975 LB
Compliances: CE Marked
Certifications: CSA Certified
