Out of Stock

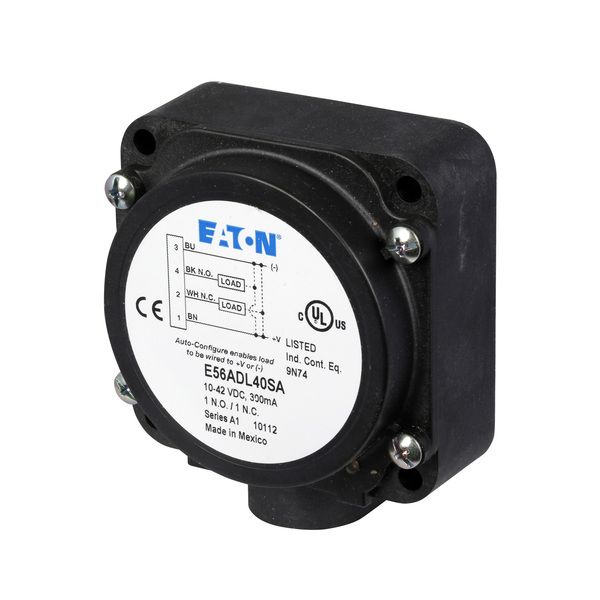

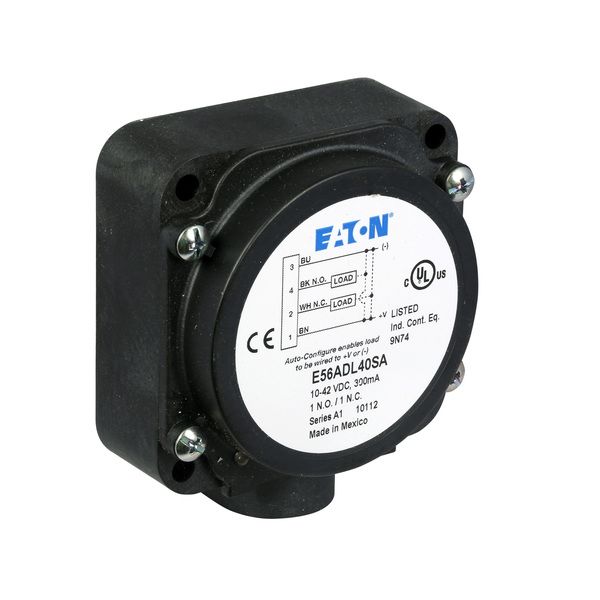

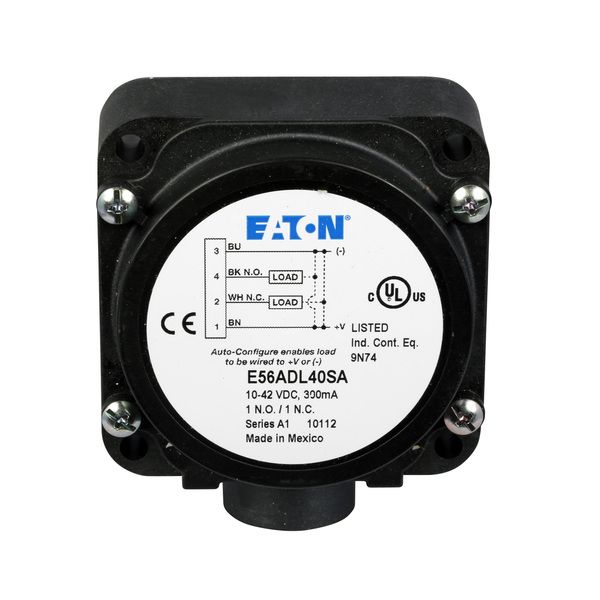

Cutler-Hammer E56ADL40SA Inductive Proximity Sensor Product Image

E56ADL40SA

Cutler-Hammer - Inductive Proximity Sensor

Product Summary:

Input Voltage: 10-42 Vdc
Contact Configuration: Complementary NPN/PNP auto-configure
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Maximum Dc Current: 300 mA

Current response time:

17 Minutes 15 Seconds

Description: Inductive Proximity Sensor
Input Voltage: 10-42 Vdc
Contact Configuration: Complementary NPN/PNP auto-configure
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Maximum Dc Current: 300 mA
Connection: Screw Terminals
Enclosure Material: PPS housing
Series: E56

Type: Inductive Proximity Sensor
Accuracy: <3%
Contact Rating: 300 mA
Environmental Rating: NEMA 4, 4X, 6, 6P, 12, 13, IP67
Protection: S/C with auto-reset
Led Indicators: Power (green), output status (red)
Product Length/Depth: 3.13 IN
Product Height: 1.54 IN
Product Width: 3.87 IN
