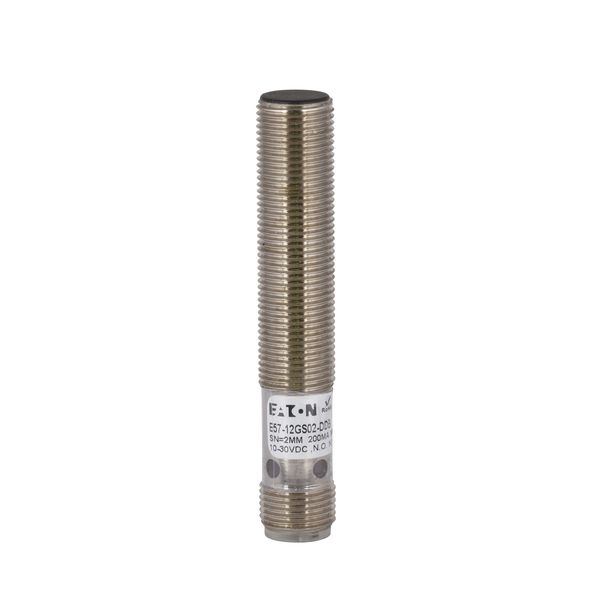

E57-12GS02-DDB

Cutler-Hammer - Proximity Sensor

Product Summary:

Weight: .2 LB
Input Voltage: 10-30 Vdc
Contact Configuration: 2-wire DC, NO
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70F)

Current response time:

13 Minutes 13 Seconds

Description: Proximity Sensor
Weight: .2 LB
Input Voltage: 10-30 Vdc
Contact Configuration: 2-wire DC, NO
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70F)
Height: .47 IN
Length: 2.68 IN
Width: .47 IN
Type: Inductive Global Proximity Sensor
Accuracy: <2.0% sensing range

Connection: M12
Contact Rating: 100 mA at 10-30 Vdc
Diameter: .47244095 MM
Enclosure Material: Nickel plated brass
Environmental Rating: IP67, IP69K
Led Indicators: Output ON
Maximum Dc Current: 100 mA
Number Of Pins: 4 pin
Number Of Wires: 2-wire
Protection: S/C
Series: E57

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E57-12GS02-DDB . Santa Clara Systems carries 16,351 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
