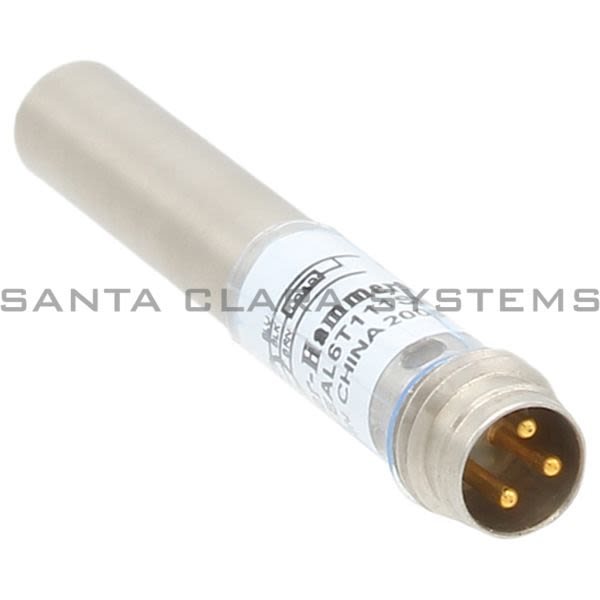

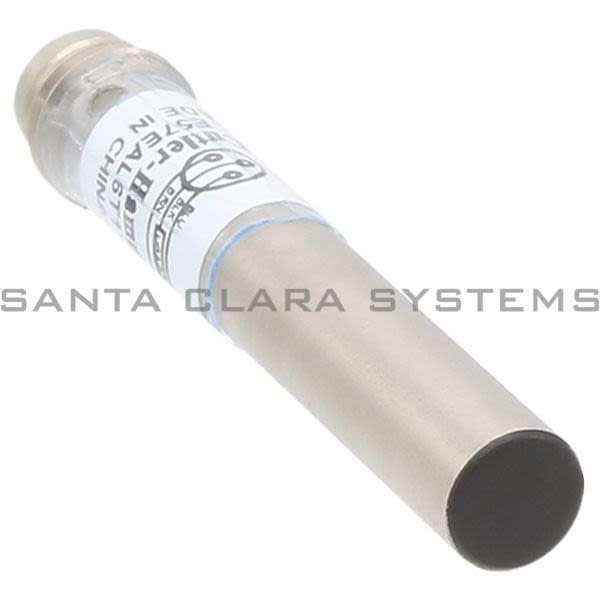

E57EAL6T111SN

Cutler-Hammer - Inductive Proximity 6mm Tubular, Shielded/ 10- 30 VDC/ 3 Wire

Product Summary:

Input Voltage: 10-30 Vdc
Contact Configuration: PNP Open Collector, Normally Open
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity

Current response time:

15 Minutes 54 Seconds

Description: Inductive Proximity 6mm Tubular, Shielded/ 10- 30 VDC/ 3 Wire
Input Voltage: 10-30 Vdc
Contact Configuration: PNP Open Collector, Normally Open
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity
Maximum Dc Current: 200 mA
Connection: 3 Pin M8 Connector
Enclosure Material: Stainless Steel
Series: E57
Accuracy: < 1%
Sensor Type: Inductive Proximity

Contact Rating: 200 mA at 30 Vdc
Environmental Rating: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Protection: Short circuit protected
Diameter: .26 IN
Led Indicators: Red output status
Product Length/Depth: .24 IN
Product Height: 2.37 IN
Product Width: .24 IN
Product Weight: .04 LB
Compliances: CE Marked
Certifications: UL Listed
