E57LAL12T111SD

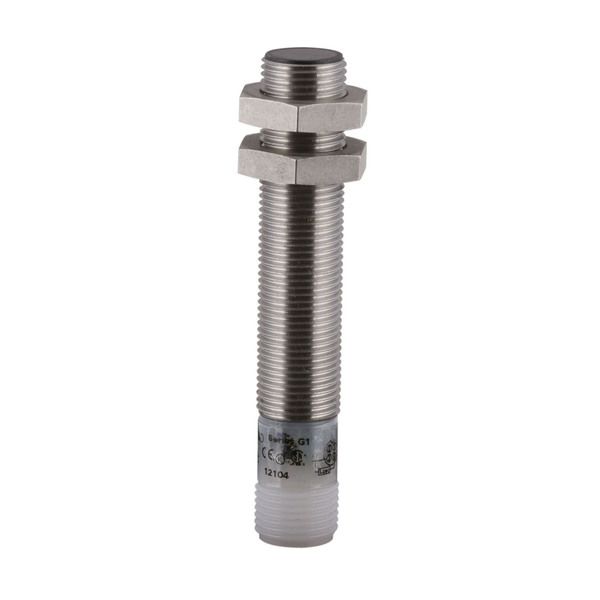

Cutler-Hammer - Tubular Inductive Proximity Sensor | Standard Range Shielded

Product Summary:

Input Voltage: 6-48 Vdc
Contact Configuration: NO PNP open collector
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Maximum Dc Current: 500 mA

Current response time:

7 Minutes 31 Seconds

Description: Tubular Inductive Proximity Sensor | Standard Range Shielded
Input Voltage: 6-48 Vdc
Contact Configuration: NO PNP open collector
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Maximum Dc Current: 500 mA
Connection: M12
Enclosure Material: 303 stainless steel
Series: E57
Type: Premium+ Inductive Proximity Sensor
Accuracy: <1% sensing range
Contact Rating: 500 mA at 6-30 Vdc

Number Of Pins: 4 pin
Environmental Rating: NEMA 4, 4X, 6, 6P, 12, 13, IP67, IP69K
Protection: Auto reset
Diameter: .47244095 MM
Led Indicators: 360° viewable LED
Product Length/Depth: 2.71 IN
Product Height: .47 IN
Product Width: .47 IN
Product Weight: .1 LB
Compliances: CE Marked
Certifications: UL Listed

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E57LAL12T111SD . Santa Clara Systems carries 16,351 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
