E57LBL18A2EA

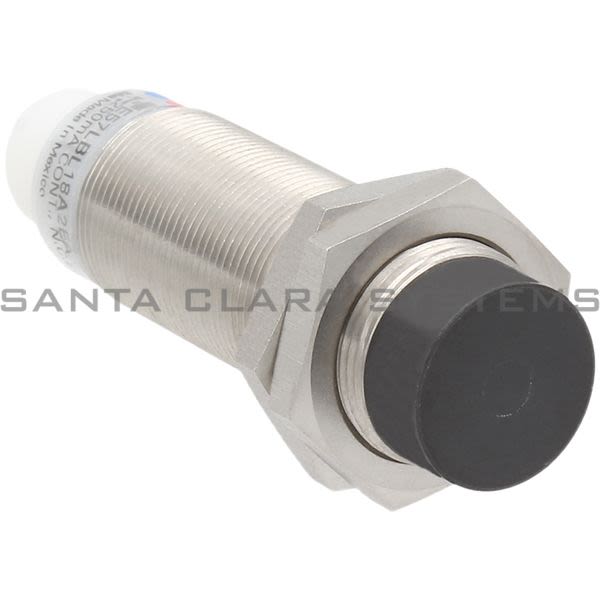

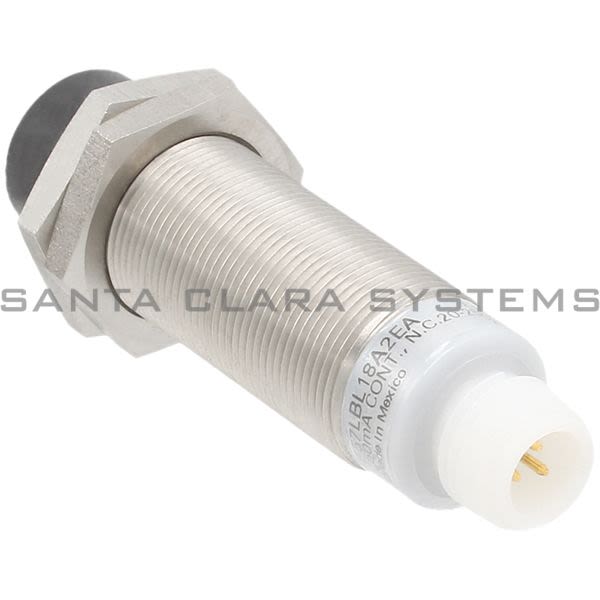

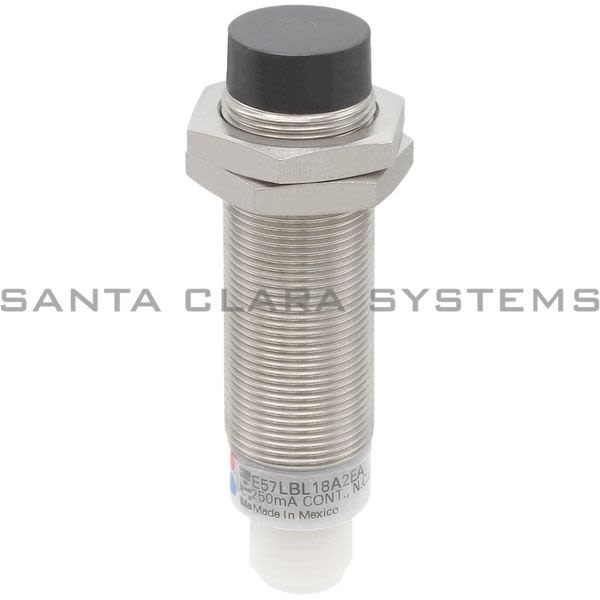

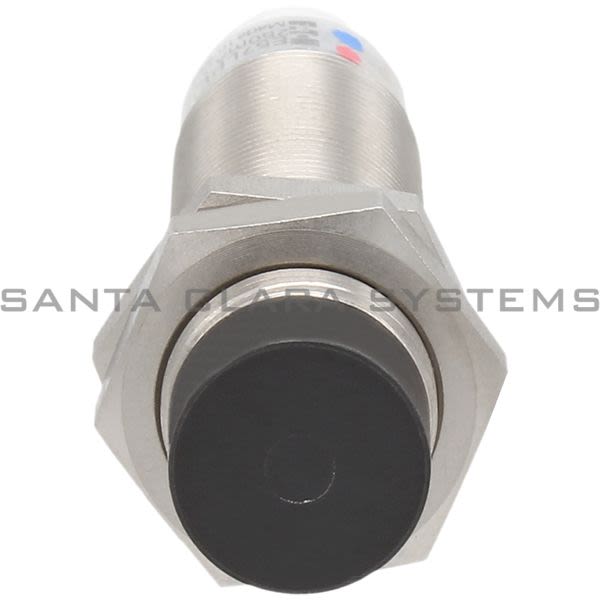

Cutler-Hammer - Inductive Proximity Sensor

Current response time:

15 Minutes 33 Seconds

Description: Inductive Proximity Sensor
Input Voltage: 20-250 Vac
Contact Configuration: 2 - Wire AC, Normally Closed
Operating Mode: Un-shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Switch Type: Inductive Proximity
Maximum Ac Current: 250 mA
Connection: 3 Pin Dual Key Micro Connector
Enclosure Material: Stainless Steel
Series: E57
Accuracy: < 3%
Sensor Type: Inductive Proximity

Contact Rating: 250 mA at 250Vac
Environmental Rating: NEMA 4, 4X, 6, 6P, 12 and 13 (IP67)
Protection: None
Diameter: .71 IN
Led Indicators: Red output status
Product Length/Depth: .71 IN
Product Height: 2.74 IN
Product Width: .71 IN
Product Weight: .1438 LB
Compliances: CE Marked
Certifications: UL Listed
