E57SAL12T110E

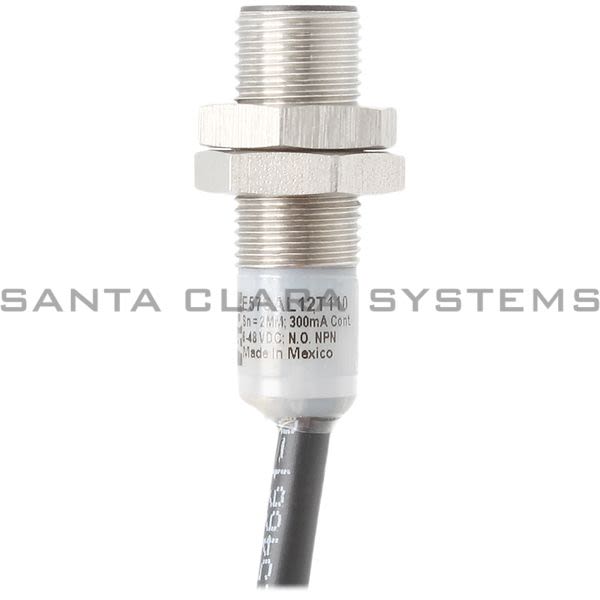

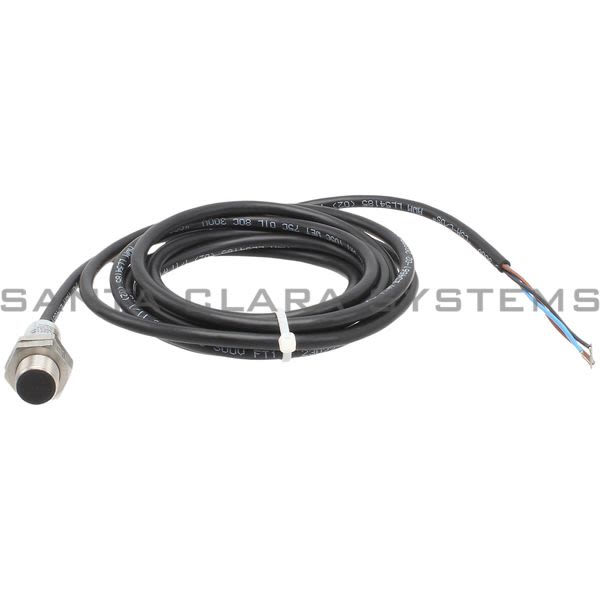

Cutler-Hammer - Inductive Proximity Sensor

Product Summary:

Input Voltage: 6-48 Vdc
Contact Configuration: NO NPN open collector
Size: 12 mm
Operating Mode: Unshielded
Operating Temperature: -13° to 158°F (-25° to 70°C)

Current response time:

By 5AM PT on Wednesday

Emergency?

Description: Inductive Proximity Sensor
Input Voltage: 6-48 Vdc
Contact Configuration: NO NPN open collector
Size: 12 mm
Operating Mode: Unshielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Cord Length: 79.2 FT
Maximum Dc Current: 250 mA
Cable Type: PVC
Enclosure Material: Stainless steel
Series: E57
Type: E57
Accuracy: <3% sensing range

Contact Rating: 250 mA at 6-48 Vdc
Environmental Rating: NEMA 4, 4X, 6, 6P, 12, 13, IP67
Temperature Rating: -13° to 158°F
Protection: Auto reset
Diameter: .47244095 MM
Led Indicators: 360° viewable LED
Product Length/Depth: 1.39 IN
Product Height: .47 IN
Product Width: .47 IN
Product Weight: .55 LB
Compliances: CE Marked
Certifications: UL Listed

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E57SAL12T110E . Santa Clara Systems carries 16,351 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
