E57SAL18A2

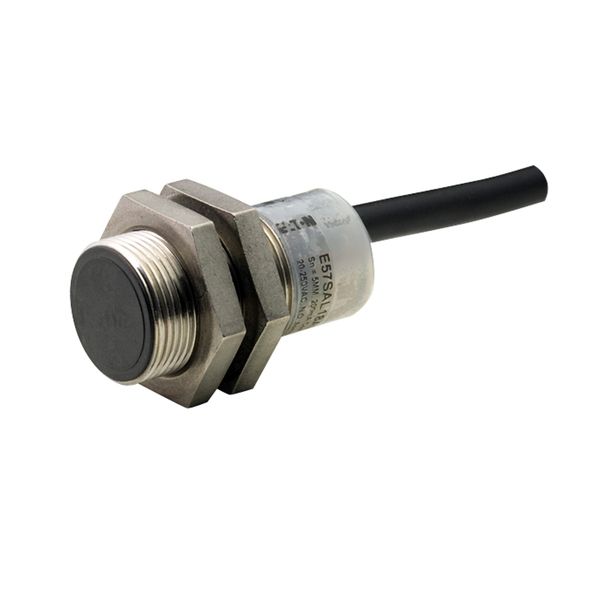

Cutler-Hammer - Tubular Inductive Proximity Sensor

Product Summary:

Input Voltage: 40-250 Vac 50/60 Hz, 20-250 Vdc
Contact Configuration: 2-wire AC/DC, NO
Size: 18
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)

Current response time:

12 Minutes 25 Seconds

Description: Tubular Inductive Proximity Sensor
Input Voltage: 40-250 Vac 50/60 Hz, 20-250 Vdc
Contact Configuration: 2-wire AC/DC, NO
Size: 18
Operating Mode: Shielded
Operating Temperature: -13° to 158°F (-25° to 70°C)
Cord Length: 79.2 FT
Maximum Ac Current: 250 mA
Maximum Dc Current: 250 mA
Cable Type: PVC

Enclosure Material: 303 stainless steel
Series: E57
Type: E57
Accuracy: <1% sensing range
Contact Rating: 250 mA at 40-240 Vac/20-250 Vdc
Environmental Rating: NEMA 4, 4X, 6, 6P, 12, 13, IP67, IP69K
Temperature Rating: -13° to 158°F
Protection: Resettable S/C, overload
Diameter: .70866142 MM
Led Indicators: 360° viewable LED

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on E57SAL18A2 . Santa Clara Systems carries 16,351 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
