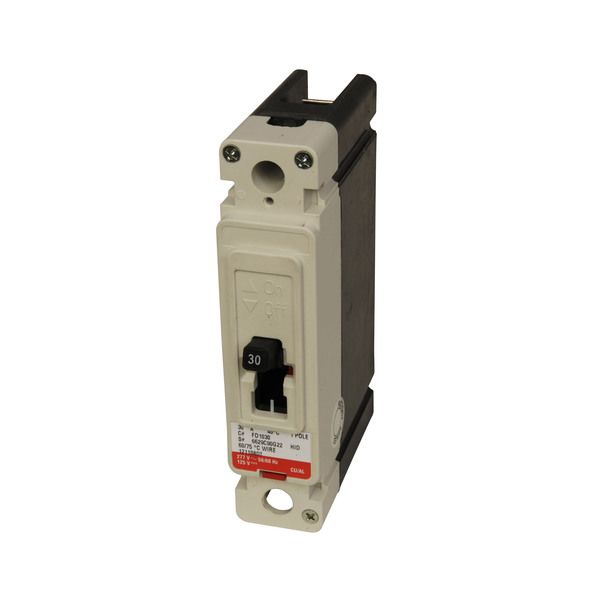

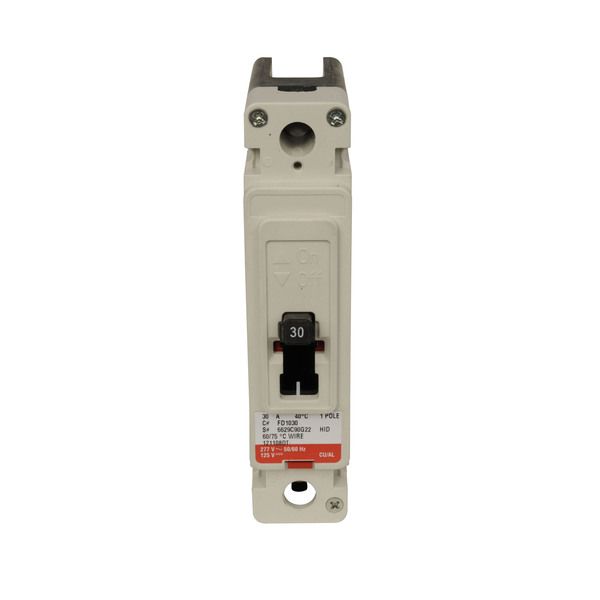

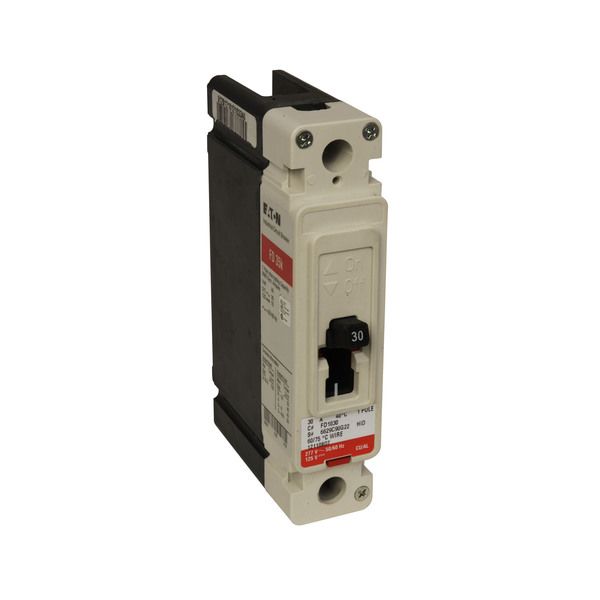

FD1030
Out of Stock
Product Summary:
- Number Of Poles: Single-pole
- Voltage Rating: 347 Vac, 125 Vdc
- Interrupt Rating: 35 kAIC at 277 Vac, 18 kAIC at 347 Vac
- Series: Series C
- Frame: F-frame
- Description: Circuit Breaker
- Number Of Poles: Single-pole
- Voltage Rating: 347 Vac, 125 Vdc
- Interrupt Rating: 35 kAIC at 277 Vac, 18 kAIC at 347 Vac
- Series: Series C
- Frame: F-frame
- Circuit Breaker Type: FD
- Frequency Rating: 50/60 Hz
- Circuit Breaker Frame Type: Complete breaker
- Terminals: Load side
- Amperage Rating: 30A
- Trip Type: Fixed thermal, fixed magnetic
- Product Length/Depth: 3.38 IN
- Product Height: 6 IN
- Product Width: 1.38 IN
- Product Weight: 1.65 LB
- Certifications: UL Listed
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on FD1030 . Santa Clara Systems carries 16,351 items from Cutler-Hammer.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
