SPD100480D2J

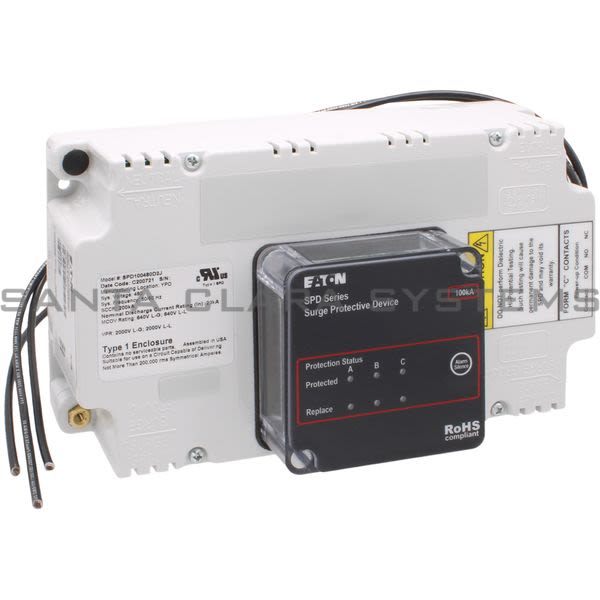

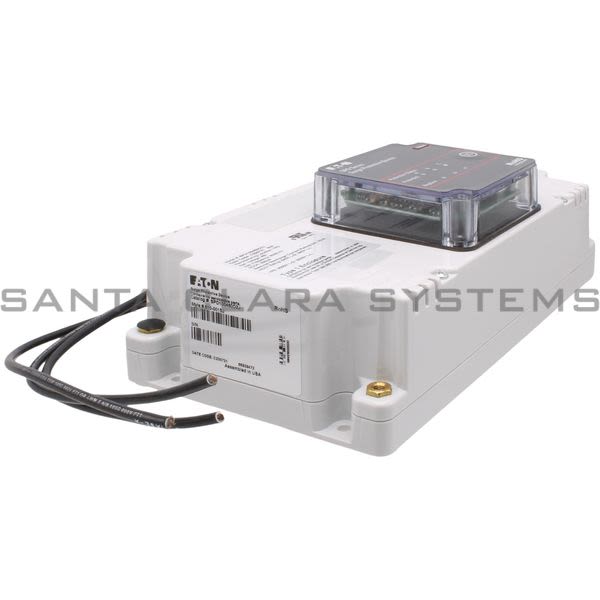

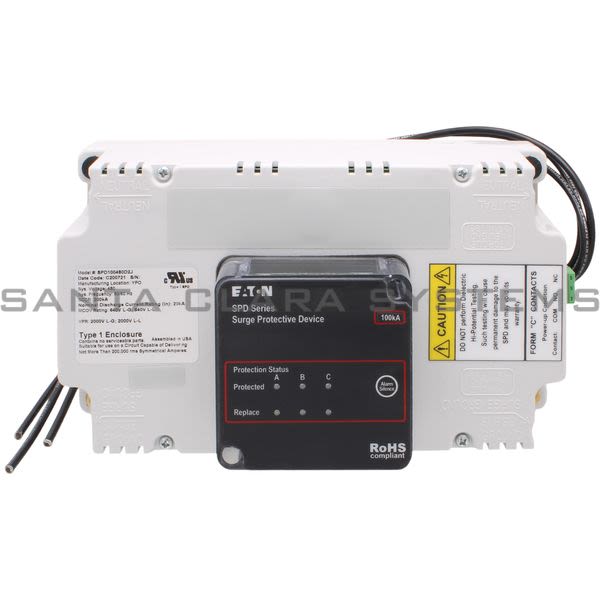

Cutler-Hammer - Surge Protector

Product Summary:

Voltage Rating: 480 delta (3W+G)
Operating Voltage: 640 L-G, 640 L-L
Operating Temperature: -40 to 50 °C
Interrupt Rating: 200 kAIC
Surge Current: 100 kA per phase

Current response time:

6 Minutes 37 Seconds

Description: Surge Protector
Voltage Rating: 480 delta (3W+G)
Operating Voltage: 640 L-G, 640 L-L
Operating Temperature: -40 to 50 °C
Interrupt Rating: 200 kAIC
Surge Current: 100 kA per phase
Mounting Method: Internal integrated
Nominal Discharge Current: 20 KA
Short Circuit Rating: 200 KA

Accessories: Standard feature package
Type: SPD
Used With: Motor control centers
Frequency Rating: 50/60 Hz
Product Length/Depth: 9.5 IN
Product Height: 3.45 IN
Product Width: 5.4 IN
Product Weight: 3.5 LB
Certifications: UL 1449

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on SPD100480D2J . Santa Clara Systems carries 16,351 items from Cutler-Hammer.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
