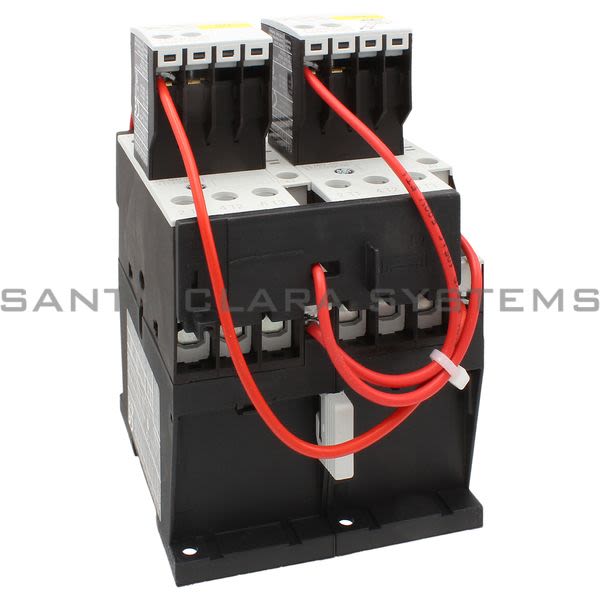

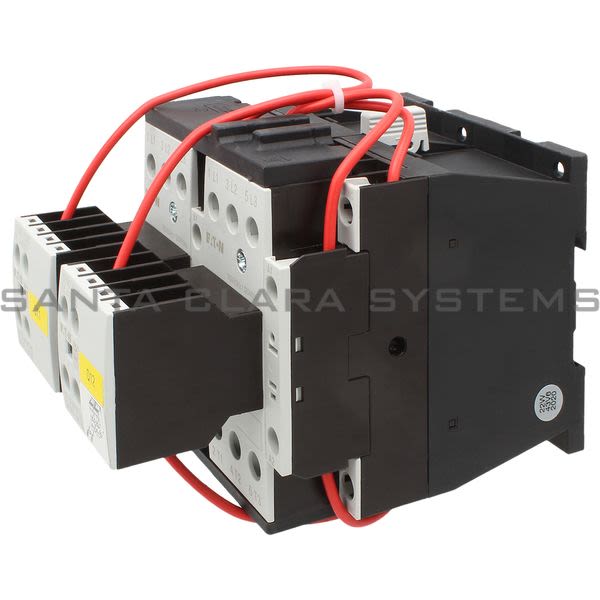

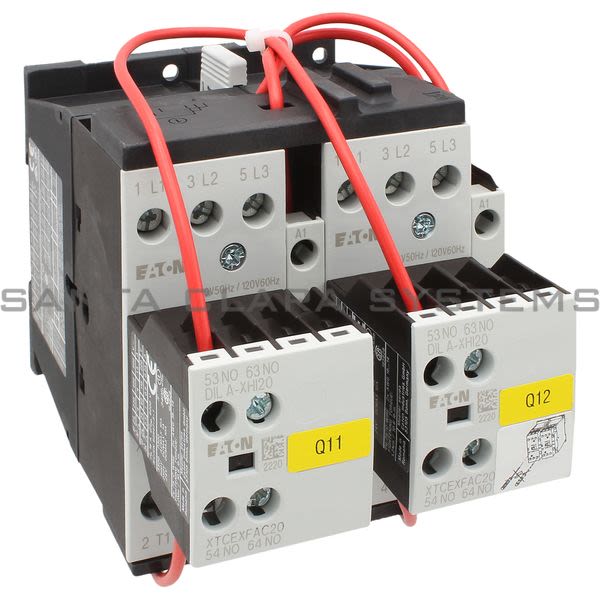

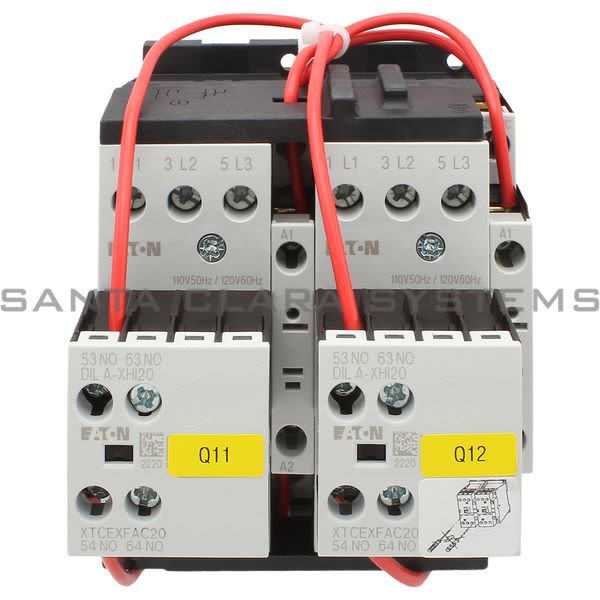

XTCR018C21A

Cutler-Hammer - Contactor

Product Summary:

Coil voltage: 110 Vac 50 Hz, 120 Vac, 60 Hz
Number Of Poles: Three-pole
Contact configuration: 2NO-2NO
Series: XT IEC series
Type: Full voltage reversing contactor

Current response time:

13 Minutes 29 Seconds

Description: Contactor
Coil voltage: 110 Vac 50 Hz, 120 Vac, 60 Hz
Number Of Poles: Three-pole
Contact configuration: 2NO-2NO
Series: XT IEC series
Type: Full voltage reversing contactor
Continuous ampere rating: 18A
Frequency rating: 50-60 Hz
Operation: Reversing

Terminals: Screw terminals
Amperage Rating: 18A
Product Length/Depth: 3.5 IN
Product Height: 4 IN
Product Width: 5.5 IN
Product Weight: 1.2 LB
Compliances: RoHS Compliant
Certifications: UL Listed
Catalog Notes: Screw terminals (6-65A); 5 mm (80-150A); no lugs (185-2000A)
