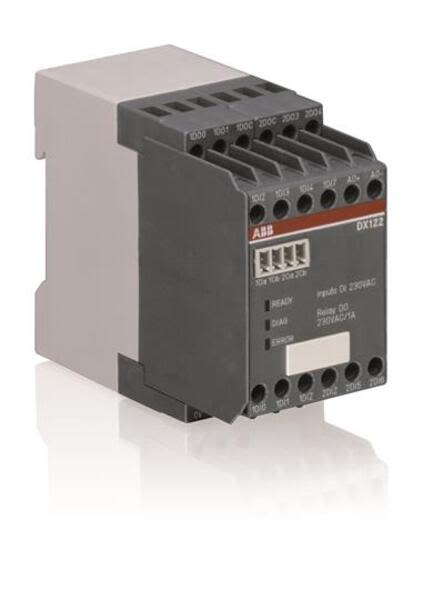

• ABB 1SAJ622000R0101 DX122-FBP.0 IO-Module for UMC100, DI 110/230VAC, Supply 24VDC Product Image
  • Abb 1SAJ622000R0101 Barcode

1SAJ622000R0101

Produktübersicht:

  • Extended Product Type: DX122-FBP.0
  • Product ID: 1SAJ622000R0101
  • EAN: 4013614403729
  • EAN: 4013614403729
  • Minimum Order Quantity: 1 piece
Lassen Sie es uns finden!
           oder
rufen Sie an 1 (888) 450-0301
  • Beschreibung: DX122-FBP.0 IO-Module for UMC100, DI 110/230VAC, Supply 24VDC
  • Number of Digital Inputs DC 24V: 0
  • Number of Digital Output Relays: 4
  • Number of Digital Outputs DC 24V: 0
  • Pollution Degree: 3
  • Power Loss: Approximately 2 W
  • Product Main Type: DX122-FBP
  • Product Name: FBP Module
  • Rated Control Supply Voltage (Us): 24 V DC
  • Rated Operational Current AC-15 (Ie): (240 V) 1.5 A
  • Rated Operational Current DC-13 (Ie): (125 V) 0.22 A (24 V) 1 A (250 V) 0.11 A
  • Rated Operational Voltage: Auxiliary Circuit 12 ... 250 V AC/DC
  • Standards: IEC/EN 60947-1 IEC/EN 60947-5-1 IEC/EN 61131-2 UL 508 CAN/CSA C22.2 No.14
  • Suitable For: UMC100-FBP.0
  • Terminal Type: Screw Terminals
  • CB Certificate: 1SAA962001-2002
  • Data Sheet, Technical Information: 2CDC135013D0201
  • Declaration of Conformity - CE: 1SVD981039-0000
  • DNV Certificate: DNV_E-13261
  • GL Certificate: 1SAA962005-0401
  • RoHS Information: 1SAA981017-2401
  • eClass: 7.0 27370805
  • ETIM 4: EC001604 - Fieldbus, decentr. periphery - communication module
  • ETIM 5: EC002613 - Extension module for electronic motor control and protection device
  • ETIM 6: EC002613 - Extension module for motor management device
  • Object Classification Code: B
  • UNSPSC: 43172000
  • Extended Product Type: DX122-FBP.0
  • Product ID: 1SAJ622000R0101
  • EAN: 4013614403729
  • EAN: 4013614403729
  • Minimum Order Quantity: 1 piece
  • Customs Tariff Number: 85389099
  • Product Net Width: 45 mm
  • Product Net Height: 78 mm
  • Product Net Depth: 102 mm
  • Product Net Weight: 0.22 kg
  • Package Level 1 Units: 1 piece
  • Package Level 1 Width: 45 mm
  • Package Level 1 Height: 78 mm
  • Package Level 1 Length: 102 mm
  • Package Level 1 Gross Weight: 0.22 kg
  • Ambient Air Temperature: Operation 0 . +55 °C Storage -25 +70 °C
  • Resistance to Shock acc. to IEC 60068-2-27: 11 ms Pulse 150 m/s²
  • Resistance to Vibrations acc. to IEC 60068-2-6: 5g / 3 150 Hz
  • RoHS Status: No declaration needed
  • Analog Inputs: 0
  • Analog Outputs: 1
  • Degree of Protection: IP20
  • IIT Publishing Status: Level 0 - Information enabled
  • Input Voltage Type: AC
  • Mounting on DIN Rail: TH35-15 (35 x 15 mm Mounting Rail) acc. to IEC 60715 TH35-7.5 (35 x 7.5 mm Mounting Rail) acc. to IEC 60715
  • Mounting Position: Any
  • Number of Digital Inputs AC 230V: 8
