P1PY101

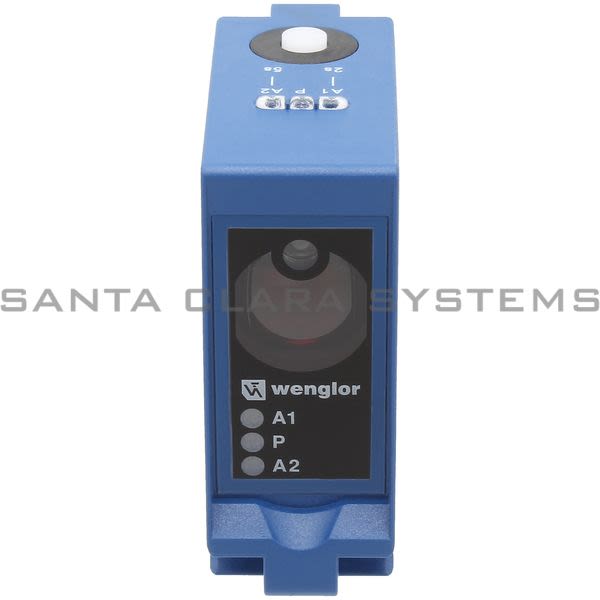

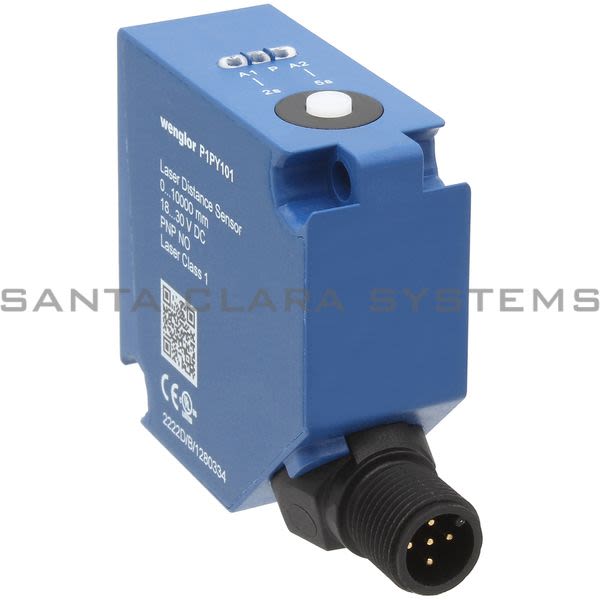

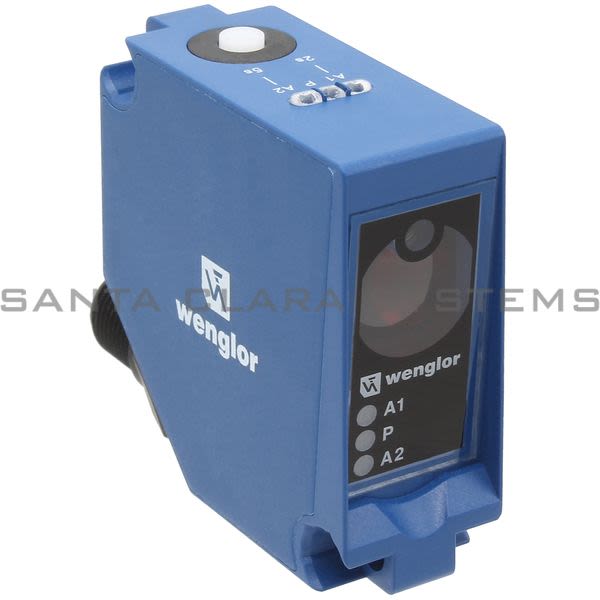

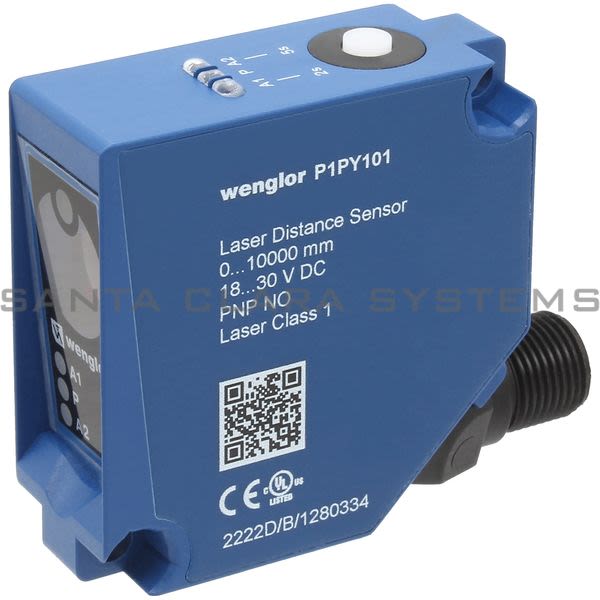

Wenglor - Laser Distance Sensor Time of Flight

Product Summary:

Working Range: 0 ... 10,000 mm
Setting Range: 50 ... 10,000 mm
Reproducibility maximum: 3 mm*
Linearity Deviation: 10 mm*
Switching Hysteresis: < 15 mm

Current response time:

By 5AM PT on Monday

Emergency?

Description: Laser Distance Sensor Time of Flight
Working Range: 0 ... 10,000 mm
Setting Range: 50 ... 10,000 mm
Reproducibility maximum: 3 mm*
Linearity Deviation: 10 mm*
Switching Hysteresis: < 15 mm
Light Source: Laser (red)
Wavelength: 660 nm
Service Life (T = +25 C): 100,000 h
Laser Class: 1
Beam Divergence: < 2 mrad
Max. Ambient Light: 100,000 Lux

Light Spot Diameter: See Table 1
Supply Voltage: 18 ... 30 V DC
Current Consumption: < 35 mA
Switching Frequency: 50 Hz*
Switching Frequency (max.): 250 Hz*
Response Time: 15 ms *
Temperature Drift: < 0.4 mm/K
Temperature Range: -40 ... 50 C
Switching Output Voltage Drop: < 2.5 V
Switching Output/Switching Current: 100 mA
Interface: IO-Link V1.1
Connection: M12 1; 4/5-pin

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on P1PY101 . Santa Clara Systems carries 3,326 items from Wenglor.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
