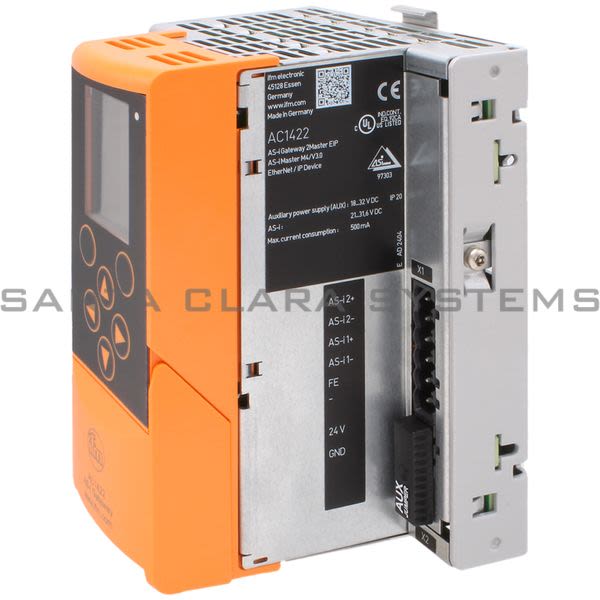

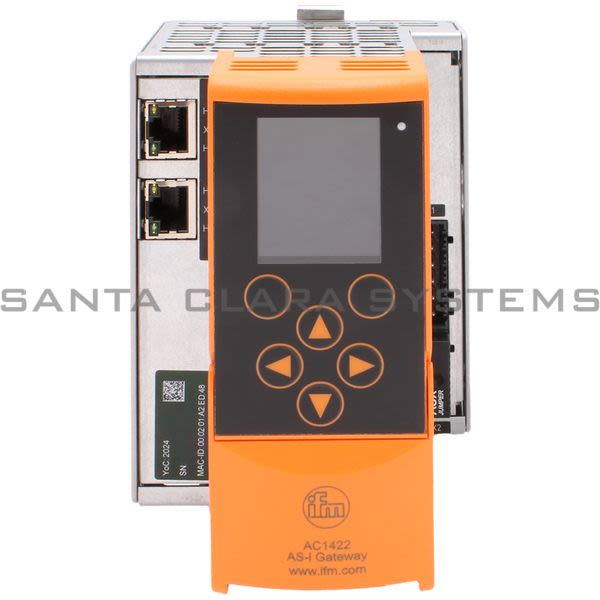

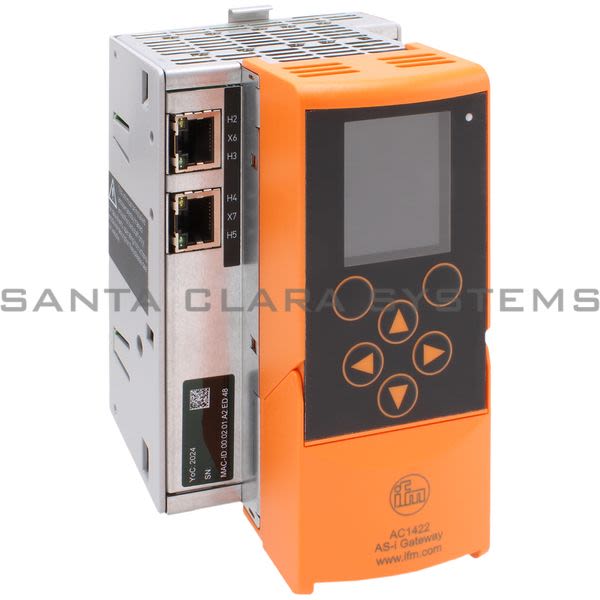

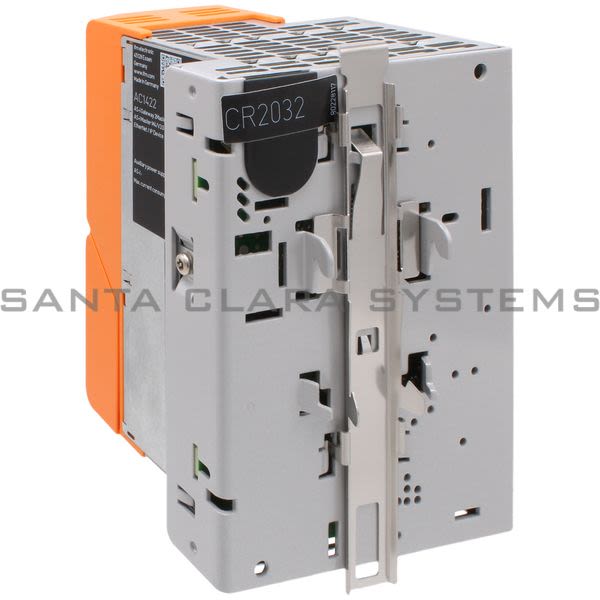

- Description: AS-i Ethernet/IP Gateway
- Material: Aluminum Powder-Coated; Steel Sheet Galvanised; Pc
- Operating Voltage [V]: 18...32 Dc; (Aux; As-I: 21...31,6 V Dc)
- Current Consumption [Ma]: < 500; (Aux / As-I 1)
- Max. Current Consumption From As-I [Ma]: 500; (With External Supply: 10 Ma; As-I 2: 10 Ma)
- Number Of As-I Masters: 2
- Electrical Separation: Yes
- Voltage Range Dc: To Pelv
- Communication Interface: Ethernet
- Protocol: Udp/Ip
- Usage Type: Programming
- Transmission Rate: 10 Mbaud; 100 Mbaud
- Type Of Connector: Rj45
- Ambient Temperature [°C]: 0...60
- Storage Temperature [°C]: -20...70
- Protection: Ip 20
- As-I Version: 3
- As-I Profile: M4
- As-I Certificate: 97303
- Housing: Housing For Din Rail Mounting
- Display: Function 1 X Led, Red/Green Full Graphic Lcd Display
- Accessories (Supplied): Terminals
- Accessories (Optional): License: "Codesys V3", E71400
- Connection: Terminals: ...2.5 Mm²
- Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AC1422 . Santa Clara Systems carries 3,029 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
