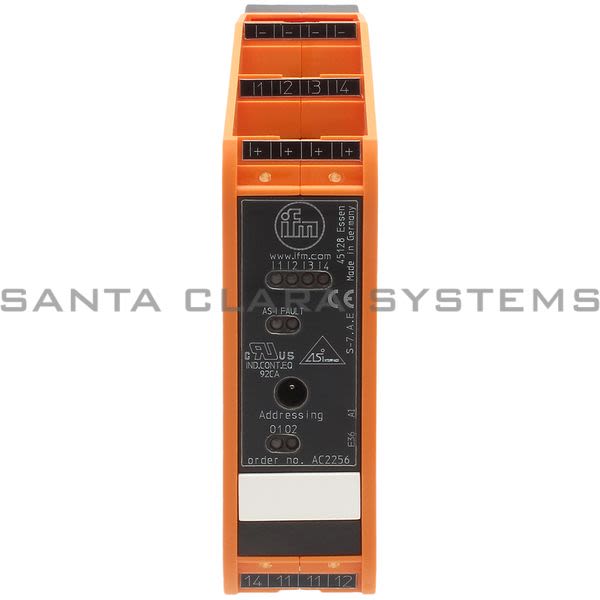

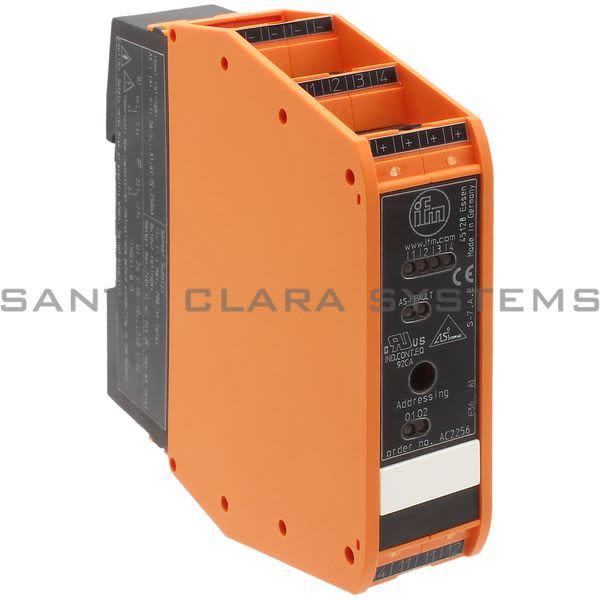

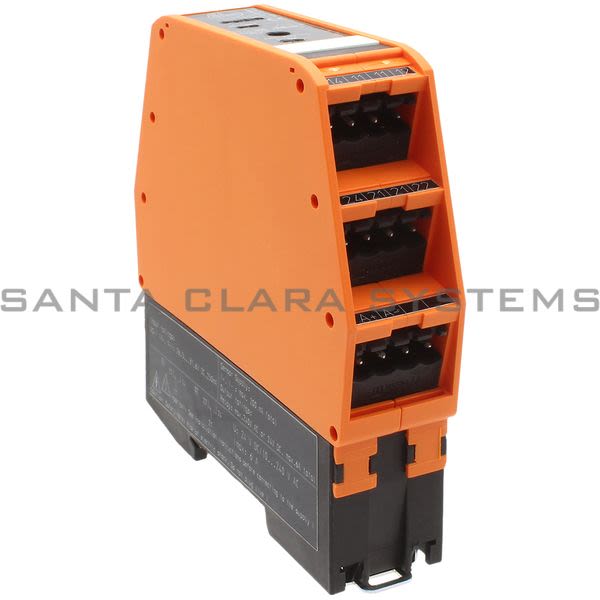

AC2256

Efector - Module | SmartL25 4DI 2DO R C

Current response time:

By 5AM PT on Friday

Emergency?

Description: Module | SmartL25 4DI 2DO R C
Material: Pa
Operating Voltage [V]: 26.5...31.6 Dc
Max. Current Consumption From As-I [Ma]: 250
Max. Current Load Total [A]: 6; (Resistive)
Integrated Watchdog: Yes
Number Of Inputs And Outputs: Number Of Digital Inputs: 4; Number Of Relay Outputs: 2
Number Of Digital Inputs: 4
Input Circuit Of Digital Inputs: Pnp
Voltage Supply [V]: 16...30
Max. Total Current Rating Of Inputs [Ma]: 200
Input Current High [Ma]: 6...10
Input Current Low [Ma]: 0...2
Min. Switching Level High Signal [V]: 11
Digital Inputs Protected Against Short Circuits: No
Sensor Supply Of The Inputs: As-I
Voltage Range Dc: 24; (All Outputs Have To Be Supplied With The Same Voltage. E.G. 2 X 240 V Ac, Same Phase Conductor, Or 2 X 24 V Dc )
Voltage Range Ac: 10...240; (All Outputs Have To Be Supplied With The Same Voltage. E.G. 2 X 240 V Ac, Same Phase Conductor, Or 2 X 24 V Dc )
Max. Current Load Per Output [Ma]: 6000; (Resistive)

Number Of Relay Outputs: 2
Short-Circuit Proof: No
Electrically Separated: Yes
Ambient Temperature [C]: -25...70
Protection: Ip 20
Emc: En 50295 En 50178
As-I Version: 2.1
As-I Addressing: Addressing Socket
Extended Addressing Mode Possible: Yes
As-I Profile: S-7.A.E
As-I I/O Configuration [Hex]: 7
As-I Id Code [Hex]: A.E
As-I Certificate Pending: Yes
Data Bits: Data Bit D0 D1 D2 D3 Input I-1 I-2 I-3 I-4 Output O-1 O-2 - -
Type Of Mounting: Mounting On Din Rail; String Mounting Possible
Display: Switching Status Led, Yellow Power Led, Green Errors Led, Red
Accessories (Optional): Combicon Connector
Connection: Combicon:
Alternate Manufacturer Name: IFM
