Out of Stock

AC2505

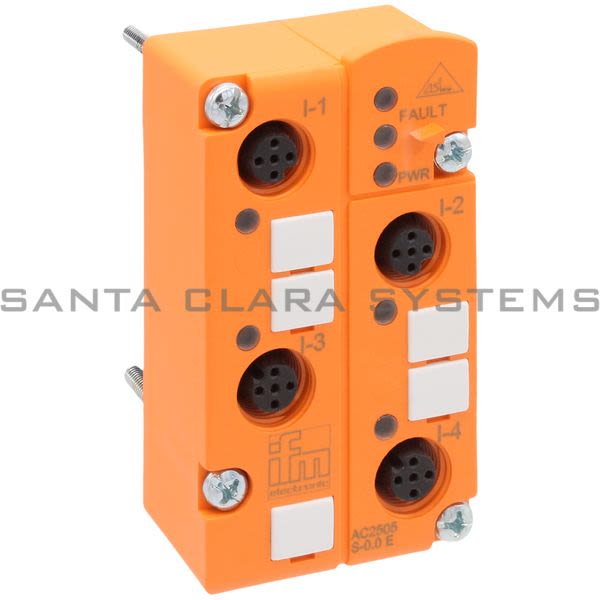

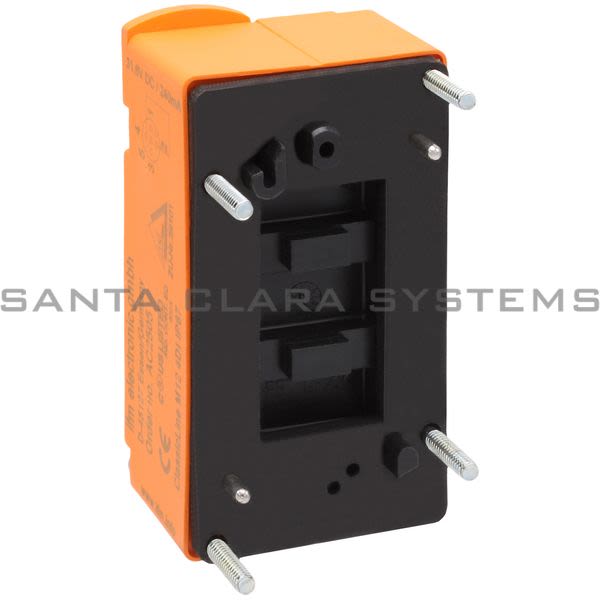

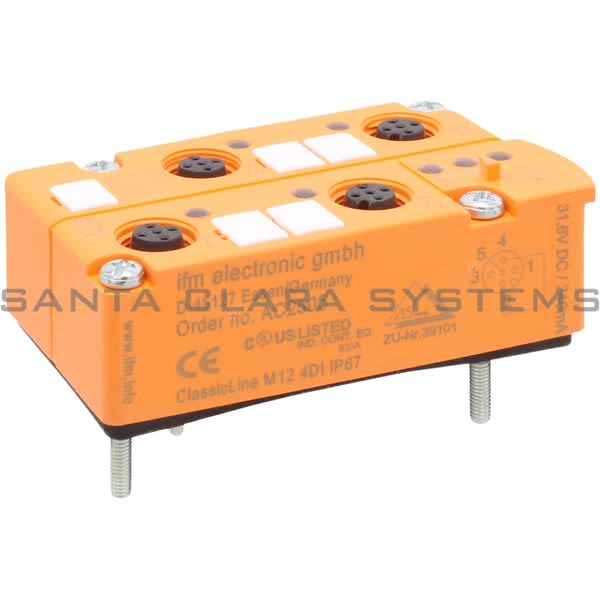

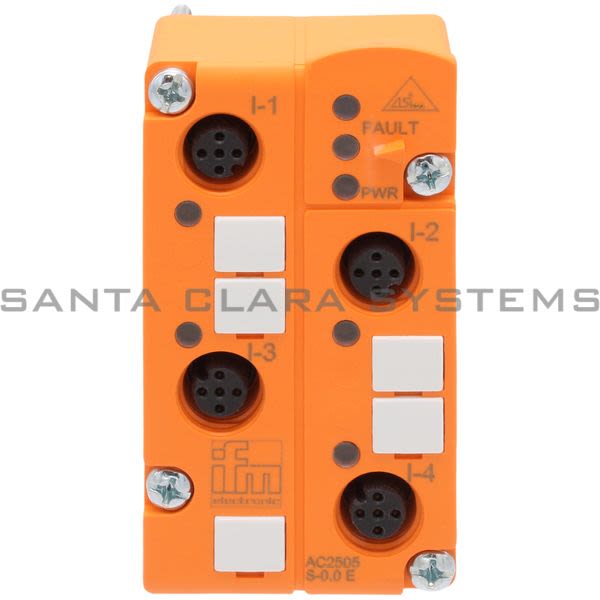

Efector - Active ClassicLine Module | ClassicLine45 4DI M12

Current response time:

9 Minutes 14 Seconds

Description: Active ClassicLine Module | ClassicLine45 4DI M12
Electrical Design: As-I
Material: Pbt
Operating Voltage [V]: 26.5...31.6 Dc
Max. Current Consumption From As-I [Ma]: 240
Number Of Inputs And Outputs: Number Of Digital Inputs: 4
Number Of Digital Inputs: 4
Input Circuit Of Digital Inputs: Pnp
Voltage Supply [V]: 18...30; (Via Flat Cable)
Max. Total Current Rating Of Inputs [Ma]: 200
Input Current High [Ma]: 6...10
Input Current Low [Ma]: 0...2
Min. Switching Level High Signal [V]: 11
Digital Inputs Protected Against Short Circuits: Yes
Sensor Supply Of The Inputs: As-I

Ambient Temperature [C]: -25...70
Protection: Ip 67
Emc: En 50295
As-I Version: 2.1
As-I Addressing: Ir Addressing Possible
Extended Addressing Mode Possible: No
As-I Profile: S-0.0.E
As-I I/O Configuration [Hex]: 0
As-I Id Code [Hex]: 0.E
As-I Certificate: 39101
Data Bits: Data Bit D0 D1 D2 D3 Input 1 2 3 4 Socket I-1 I-2 I-3 I-4 Pin 2+4 2+4 2+4 2+4
Type Of Mounting: As-I Interface To Fc Lower Parts
Display: Power Led, Green Errors Led, Red Function Led, Yellow
Accessories (Optional): Module Lower Part
Alternate Manufacturer Name: IFM

Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on AC2505 . Santa Clara Systems carries 2,216 items from Efector.

We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
