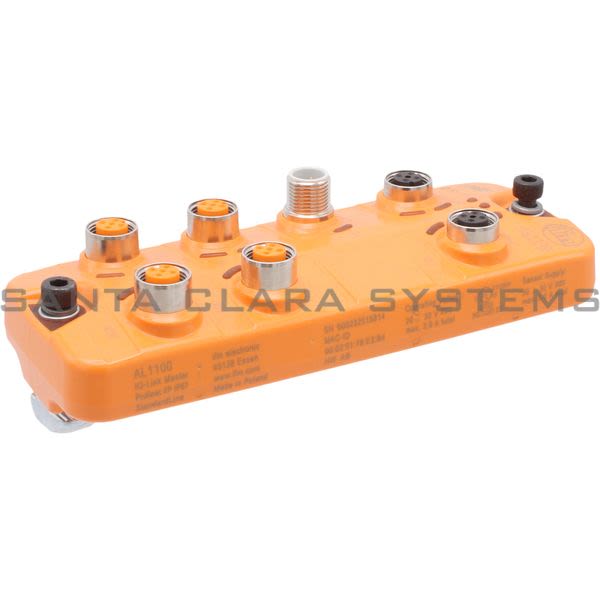

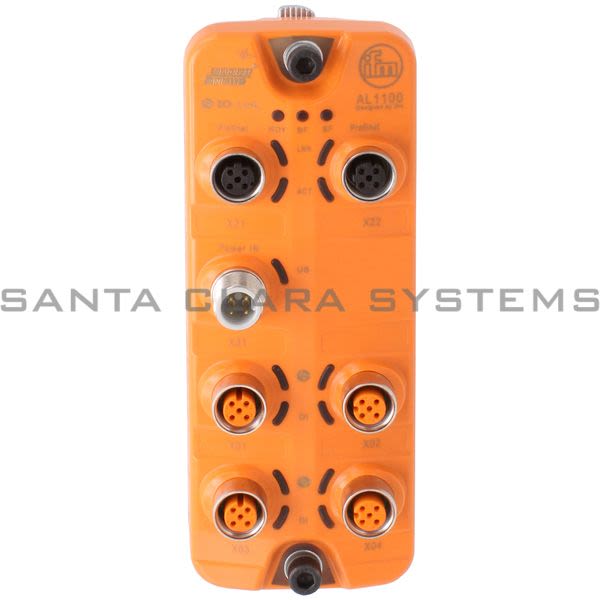

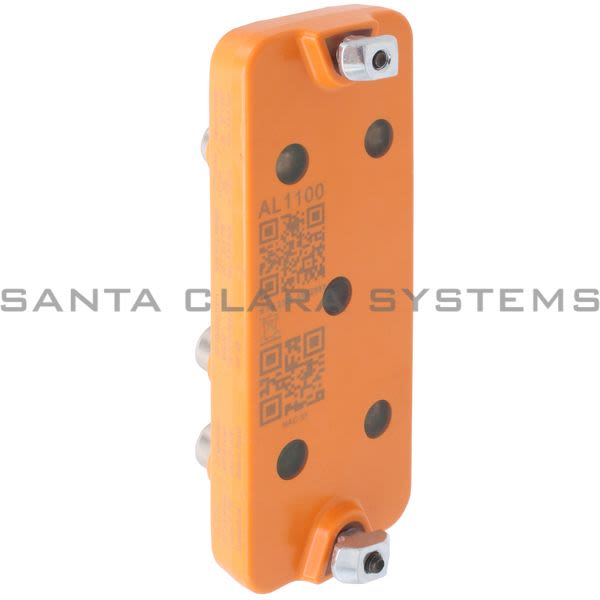

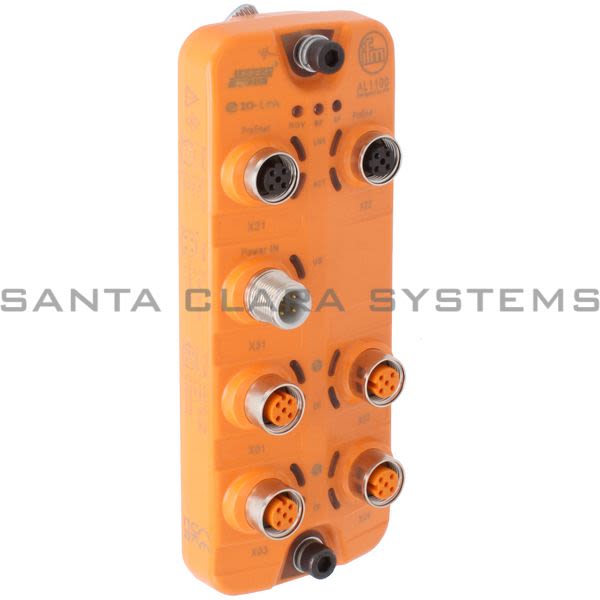

AL1100

Efector - IO-Link Master with Profinet Interface | IO-Link Master SL PN 4P IP67

Product Summary:

Material: housing: PA; Socket: brass nickel-plated
Application: I/O modules for field applications
Daisy-chain function: fieldbus interface
Operating voltage [V]: 20...30 DC; (US; to SELV/PELV)
Current consumption [mA]: 300...3900; (US)

Current response time:

12 Minutes 53 Seconds

Description: IO-Link Master with Profinet Interface | IO-Link Master SL PN 4P IP67
Material: housing: PA; Socket: brass nickel-plated
Application: I/O modules for field applications
Daisy-chain function: fieldbus interface
Operating voltage [V]: 20...30 DC; (US; to SELV/PELV)
Current consumption [mA]: 300...3900; (US)
Protection class: III
Max. current load total [A]: 3.6
Total number of inputs and outputs: 8; (configurable)
Number of inputs and outputs: Number of digital inputs: 8; Number of digital outputs: 4
Number of digital inputs: 8; (IO-Link Port Class A: 4 x 2)
Switching level high [V]: 11...30
Switching level low [V]: 0...5
Number of digital outputs: 4; (IO-Link Port Class A: 4 x 1)
Max. current load per output [mA]: 300

Communication interfaceEthernet;: IO-Link
Transmission standard: 10Base-T; 100Base-TX
Transmission rate: 10; 100
Protocol: PROFINET IO
Transmission type: COM 1 / COM 2 / COM 3
Ambient temperature [°C]: -25...60
Storage temperature [°C]: -25...85
Max. relative air humidity [%]: 90
Protection: IP 65; IP 66; IP 67
Degree of soiling: 2
Weight [g]: 293.5
Process connection: IO-Link Port Class A X01...X04 Connector: 4 x M12
Voltage supply: X31 Connector: 1 x M12
Ethernet: IN / OUT X21, X22 Connector: 2 x M12
