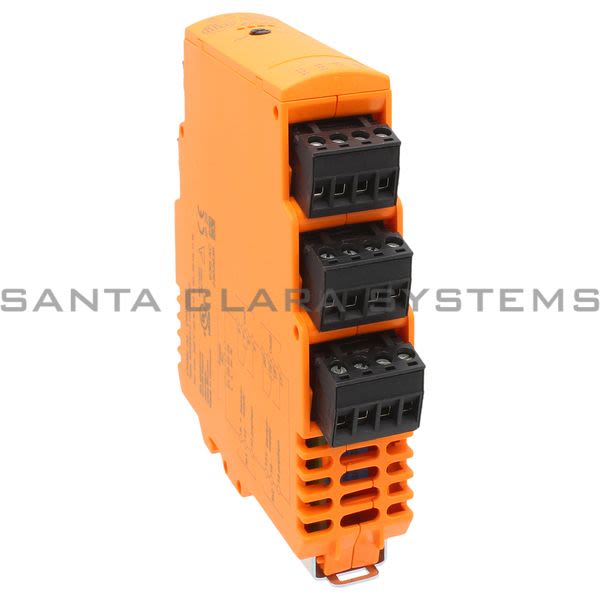

• Efector DN0220 Amplifier | N200/SA-2 110-240VAC Product Image

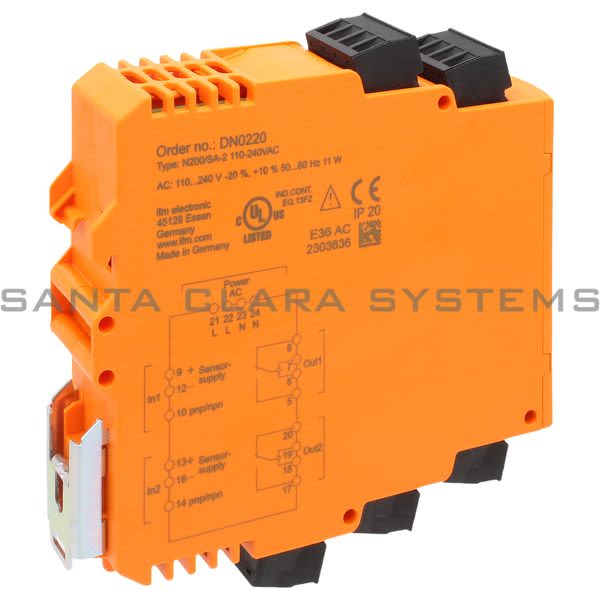

  • Efector DN0220 Amplifier | N200/SA-2 110-240VAC Product Image

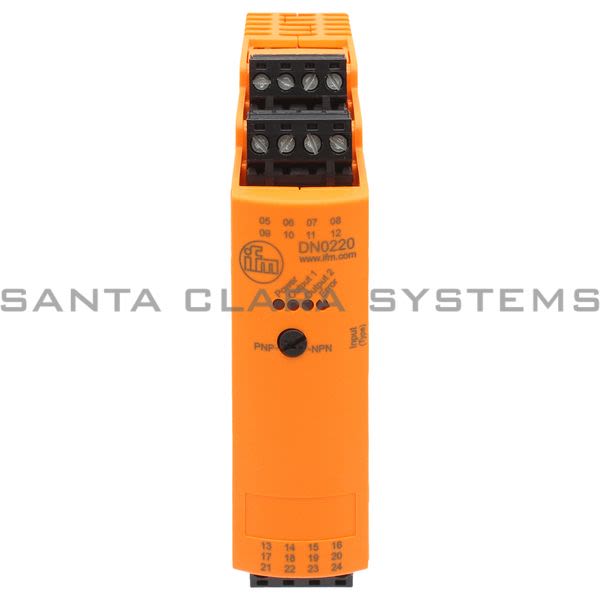

  • Efector DN0220 Amplifier | N200/SA-2 110-240VAC Product Image
  • Efector DN0220 Amplifier | N200/SA-2 110-240VAC Product Image
  • Efector DN0220 Barcode

DN0220

Product Summary:

  • Material: Plastics: Pc-Gf20
  • Contact Rating: 4 A (240 V Ac, 24 V Dc); (Resistive Load)
  • Nominal Voltage Ac [V]: 110...240
  • Nominal Voltage Tolerance [%]: > 20
  • Nominal Voltage Tolerance 2 [%]: 20...10
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Amplifier | N200/SA-2 110-240VAC
  • Material: Plastics: Pc-Gf20
  • Contact Rating: 4 A (240 V Ac, 24 V Dc); (Resistive Load)
  • Nominal Voltage Ac [V]: 110...240
  • Nominal Voltage Tolerance [%]: > 20
  • Nominal Voltage Tolerance 2 [%]: 20...10
  • Nominal Frequency Ac [Hz]: 50...60
  • Insulation Rating [V]: 9
  • Max. Power Consumption Ac [W]: 11
  • Auxiliary Energy For Sensors Dc [V]: 24; (Selv, 10 %, 2 X ? 150 Ma)
  • Number Of Channels: 2
  • Number Of Inputs And Outputs: Number Of Relay Outputs: 2
  • Number Of Relay Outputs: 2
  • Sensing Range Adjustable: No
  • Ambient Temperature [C]: -20...60
  • Storage Temperature [C]: -25...70
  • Max. Relative Air Humidity [%]: 80; (40 C 50 %; Non Condensing)
  • Max. Height Above Sea Level [M]: 3000
  • Protection: Ip 20
  • Protection Rating Terminals: Ip 20
  • Degree Of Soiling: 2; (? 240 V Ac)
  • Housing: Housing For Din Rail Mounting
  • Type Of Mounting: Rail; (Th35 En 60715)
  • Display: Voltage Supply 1, Green Output 2, Yellow Errors 1, Red
  • Accessories (Supplied): Connector: 5 X 4-Wire, With Screw Connection, E40173
  • Connection: Pin Headers: 4 X ; Spacing: 5.0 Mm
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on DN0220 . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.

Alternates

  • N200/SA-2 110-240VAC
