DTA300

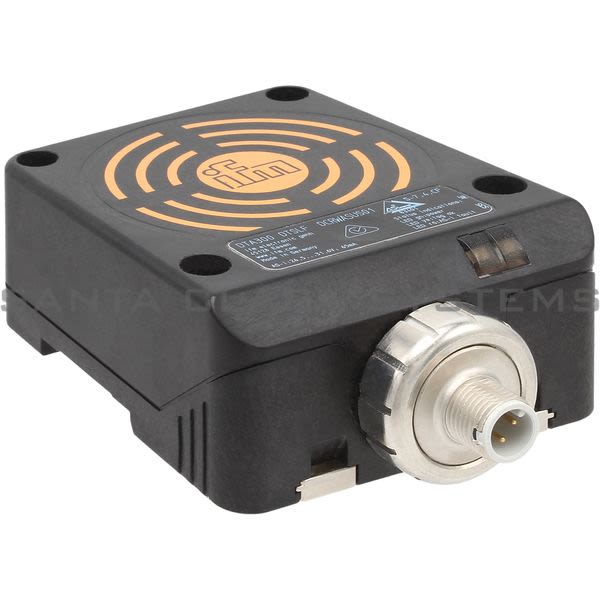

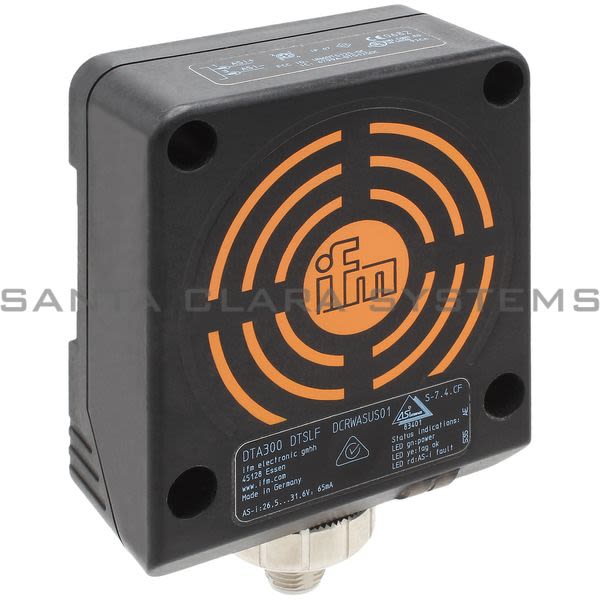

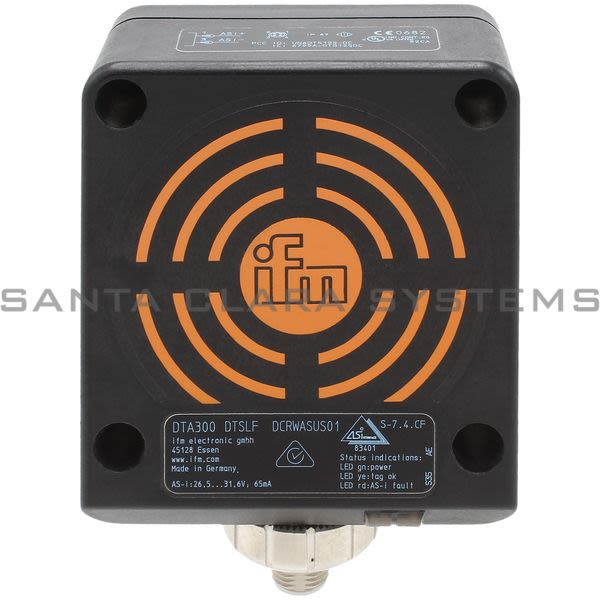

Efector - Read/Write Head | DTSLF DCRWASUS01

Current response time:

4 Minutes 45 Seconds

Description: Read/Write Head | DTSLF DCRWASUS01
Electrical Design: As-I
Material: Housing: Ppe; Metal Parts: Diecast Zinc / Brass Nickel-Plated
Operating Voltage [V]: 26.5...31.6 Dc
Current Consumption [Ma]: < 65
Protection Class: Iii
Operating Frequency [Mhz]: 0,125
Travel Speed [M/S]: < 0.5
Distance Read/Read Head Front: 400
Distance Read/Read Head Side: 280
Distance Write/Read Head Front [Mm]: 500
Distance Write/Read Head Side [Mm]: 500
Distance To The Id Tag [Mm]: Reading : ? 80 Static
Ambient Temperature [C]: -20...60

Storage Temperature [C]: -25...80
Protection: Ip 67
Emc: En 50295 1999-03
Shock Resistance: En 60068-2-29 40 G 6 Ms En 60068-2-27 50 11 Ms
Vibration Resistance: En 60068-2-6 20 G 10...55 Hz
As-I I/O Configuration [Hex]: 7
As-I Id Code [Hex]: 4
As-I Certificate: 83401
Housing: Rectangular
Dimensions [Mm]: 92 X 80 X 40
Display: Operating Voltage 3 X Led, Green Tag Read 1 X Led, Yellow Error In As-I Data Communication 1 X Led, Red
Connection: Connector: 1 X M12, Rotatable
Alternate Manufacturer Name: IFM
