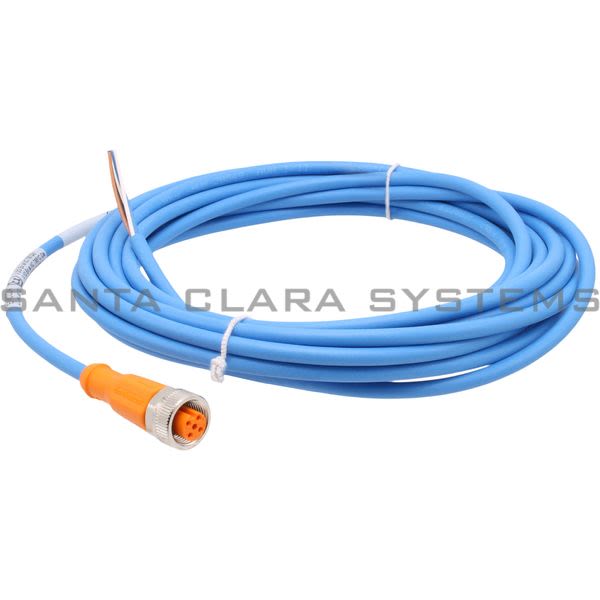

- Description: Female Cordset | ADOGH040MSN0005H04/1G/1D
- Material: Housing: TPU (Urethane) Orange; Sealing: FKM
- System: Free From Silicone; Halogen-Free; Gold-Plated Contacts
- Free from Silicone: Yes
- Operating Voltage[V]: < 30 DC
- Protection Class: II
- Max. Input Power[mW]: Group II: 1000; Group III: 1000
- Max. Current Load Total[A]: 1
- Ambient Temperature (Max): 85°C
- Ambient Temperature (Min): -25°C
- Protection: IP 67; (When Used Outside the Hazardous Area: IP 68 / IP 69K)
- Max. Internal Capacitance[nF]: 0.5
- Max. Internal Inductance[µH]: 10
- Weight[g]: 194
- Dimensions[mm]: 15.5 x 15.5 x 45
- Material Nut: Brass, Nickel-Plated

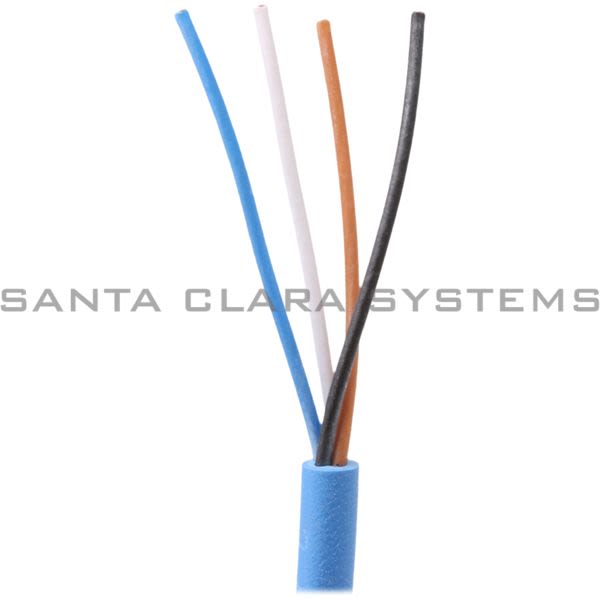

- Electrical Connection: Cable: 5 m, PUR, Halogen-Free, Blue, Ø 4.9 mm; 4 x 0.34 mm² (42 x Ø 0.1 mm )

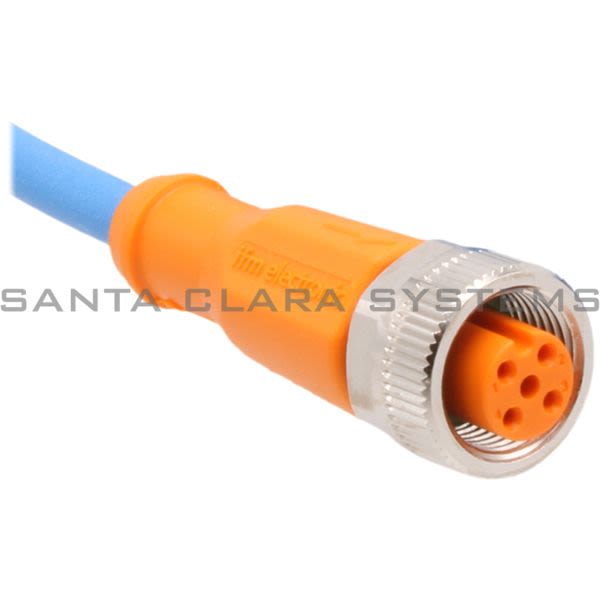

- Connection: Connector: 1 x M12, Straight; Coding: A; Locking: Brass, Nickel-Plated; Contacts: Gold-Plated; Tightening Torque: 0.6...1.5 Nm
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on ENC02A . Santa Clara Systems carries 3,034 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
