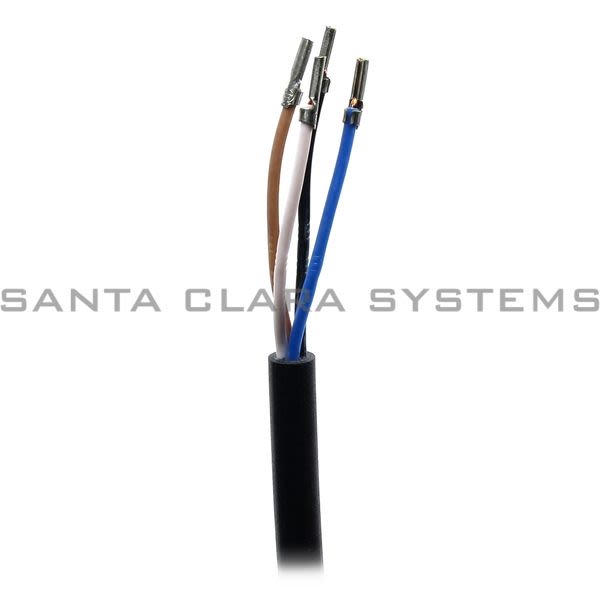

• Efector EVC002 Socket | ADOGH040MSS0005H04 Product Image

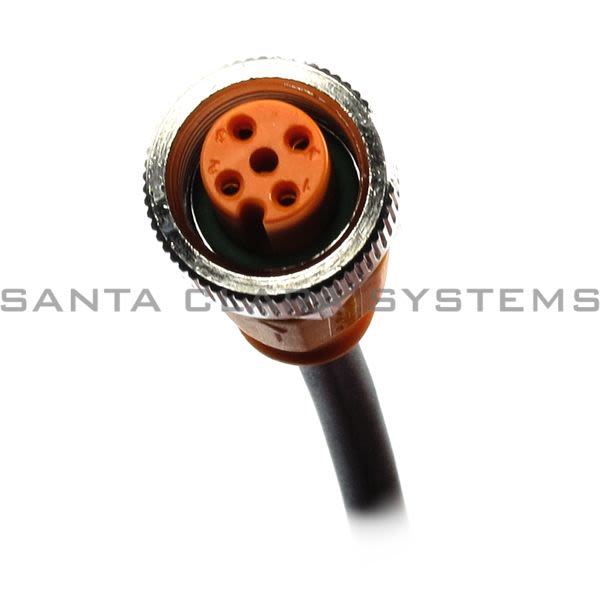

  • Efector EVC002 Socket | ADOGH040MSS0005H04 Product Image

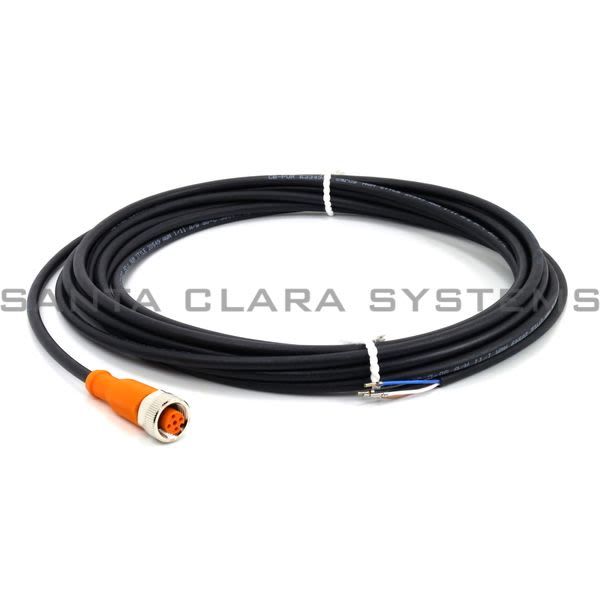

  • Efector EVC002 Socket | ADOGH040MSS0005H04 Product Image
  • Efector EVC002 Barcode

EVC002

Product Summary:

  • Electrical Design: AC/DC
  • Operating Voltage: 250 VAC / 300 VDC
  • Material: housing: TPU (urethane) orange; sealing: FKM
  • Protection Class: II
  • Design: Straight
Get a Quote

Current response time:

By 5AM PT on Thursday
  • Description: Socket | ADOGH040MSS0005H04
  • Electrical Design: AC/DC
  • Operating Voltage: 250 VAC / 300 VDC
  • Material: housing: TPU (urethane) orange; sealing: FKM
  • Protection Class: II
  • Design: Straight
  • Connection: PUR cable / 5 m; 4 x 0.34 mm (42 x 0.1 mm); 4.9 mm; halogen-free
  • Sheath Color: Black
  • Alternate Manufacturer Name: IFM
  • Cable: 5 m, PUR, Halogen-free, black, 4.9 mm; 4 x 0.34 mm (42 x 0.1 mm )
  • Pack quantity: 1 pcs.
  • Drag chain suitability: Bending radius for flexible applications min. 10 x cable diameter Travel speed max. 3.3 m/s for a horizontal travel length of 5 m and max. acceleration of 5 m/s Bending cycles > 5 Mio. Torsional strain 180 /m
  • Mechanical data Drag chain suitability: yes
  • Material nut: brass, nickel-plated
  • Dimensions [mm]: 15.5 x 15.5 x 45
  • Weight [g]: 172.8
  • Protection: IP 65; IP 67; IP 68; IP 69K
  • Note on ambient temperature (moving): cULus: ...75
  • Ambient temperature (moving) [C]: -25...90
  • Note on ambient temperature: cULus: ...75
  • Ambient temperature [C]: -25...90
  • Max. current load total [A]: 4
  • System: Free from silicone; Halogen-free; gold-plated contacts; Drag chain suitability
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on EVC002 . Santa Clara Systems carries 1,831 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
