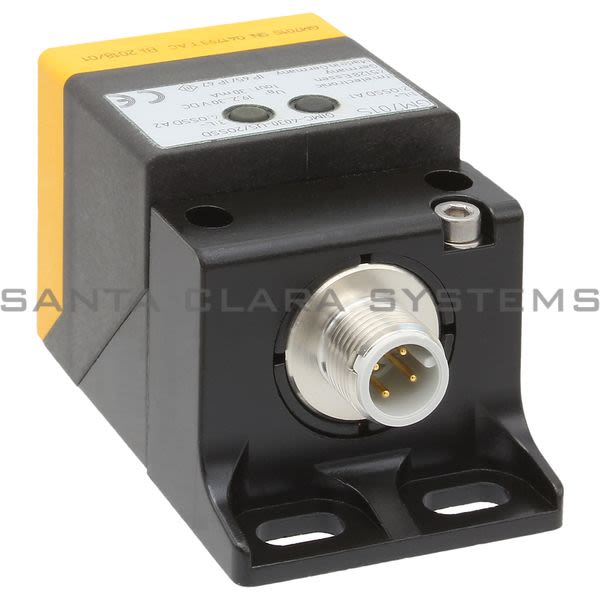

• Efector GM701S Fail-safe Inductive Sensor | GIMC-4030-US/2OSSD Product Image

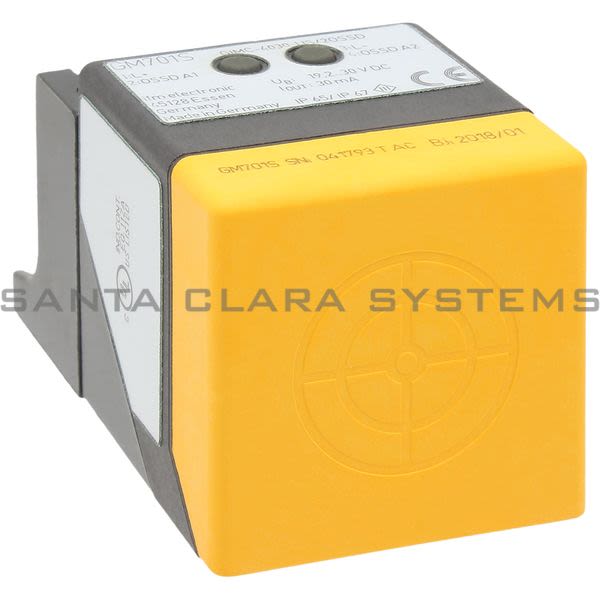

  • Efector GM701S Fail-safe Inductive Sensor | GIMC-4030-US/2OSSD Product Image

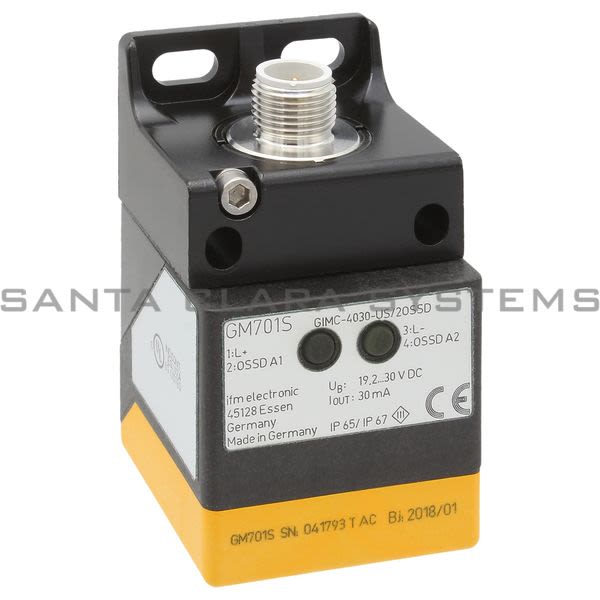

  • Efector GM701S Fail-safe Inductive Sensor | GIMC-4030-US/2OSSD Product Image
  • Efector GM701S Barcode

GM701S

Product Summary:

  • Electrical Design: Pnp
  • Output Function: 2 X Ossd (A1 And A2)
  • Mounting: Non-Flush Mountable
  • Material: Ppe; Diecast Zinc
  • Type Of Operation: Continuous Operation (Maintenance-Free)
Get a Quote

Current response time:

By 5AM PT on Monday
  • Description: Fail-safe Inductive Sensor | GIMC-4030-US/2OSSD
  • Electrical Design: Pnp
  • Output Function: 2 X Ossd (A1 And A2)
  • Mounting: Non-Flush Mountable
  • Material: Ppe; Diecast Zinc
  • Type Of Operation: Continuous Operation (Maintenance-Free)
  • Operating Voltage [V]: 19.2...30 Dc
  • Rated Insulation Voltage [V]: 30
  • Current Consumption [Ma]: < 15
  • Protection Class: Iii
  • Reverse Polarity Protection: Yes
  • Max. Power-On Delay Time [Ms]: 5000
  • Max. Voltage Drop Switching Output Dc [V]: 2.5; (100 Ma)
  • Output Data: Interface Typ C Klasse 0
  • Output Voltage At 24 V: Compatible With En 61131-2 Inputs Type 1, 2, 3
  • Short-Circuit Protection: Yes
  • Max. Capacitive Load Cl_Max [Nf]: 20
  • Enable Zone [Mm]: 10...15
  • Safe Switching-Off Distance S(Ar) [Mm]: 30
  • Response Time To Safety Request [Ms]: 50
  • Response Time When Approaching The Enable Zone [Ms]: 200
  • Risk Time (Response Time For Safety-Related Faults) [Ms]: 100
  • Applications: Class C To En 60654-1 Weatherproof Application
  • Ambient Temperature [C]: 10...40
  • Rate Of Temperature Change [K/Min]: 0.5
  • Max. Relative Air Humidity [%]: Briefly: 5...95 %; Permanent: 5...70 %
  • Air Pressure [Kpa]: 80...106
  • Max. Height Above Sea Level [M]: 2000
  • Ionising Radiation: Not Permissible
  • Salt Spray: No
  • Protection: Ip 65; Ip 67
  • Emc: Iec 60947-5-2 Iec 60947-5-3 En 60947-5-3 En 61000-4-2 Esd 6 Kv Cd / 8 Kv Ad En 61000-4-3 Hf Radiated 20 V/M En 61000-4-4 Burst 2 Kv En 61000-4-6 Hf Conducted 10 V En 61000-4-8 30 A/M En 55011 Class B
  • Shock Resistance: Iec 60947-5-2
  • Vibration Resistance: Iec 60947-5-2
  • Ul Approval: Ta -25...70 C Enclosure Type Type 1 Voltage Supply Limited Voltage/Current File Number Ul E174191
  • Iso 13849-1: Category 3, Pl E
  • Iec 61508: Sil 3
  • Iec 62061: Silcl 3
  • Mission Time Tm [H]: 175200
  • Mission Time Tm (Additional Indication): 20 Years
  • Safety-Related Reliability Pfhd [1/H]: 0.00000001
  • Housing: Rectangular
  • Dimensions [Mm]: 40 X 40 X 66
  • Display: Power 1 X Led, Green Signal 1 X Led, Yellow
  • Connection: Connector: 1 X M12; Contacts: Gold-Plated
  • Alternate Manufacturer Name: IFM
Santa Clara Systems specializes in hard-to-find parts. Choose from our overstock inventory and save on GM701S . Santa Clara Systems carries 2,078 items from Efector.
We are in the process of adding data and downloadable material for this item. Please search similar items for more information related to this product.
